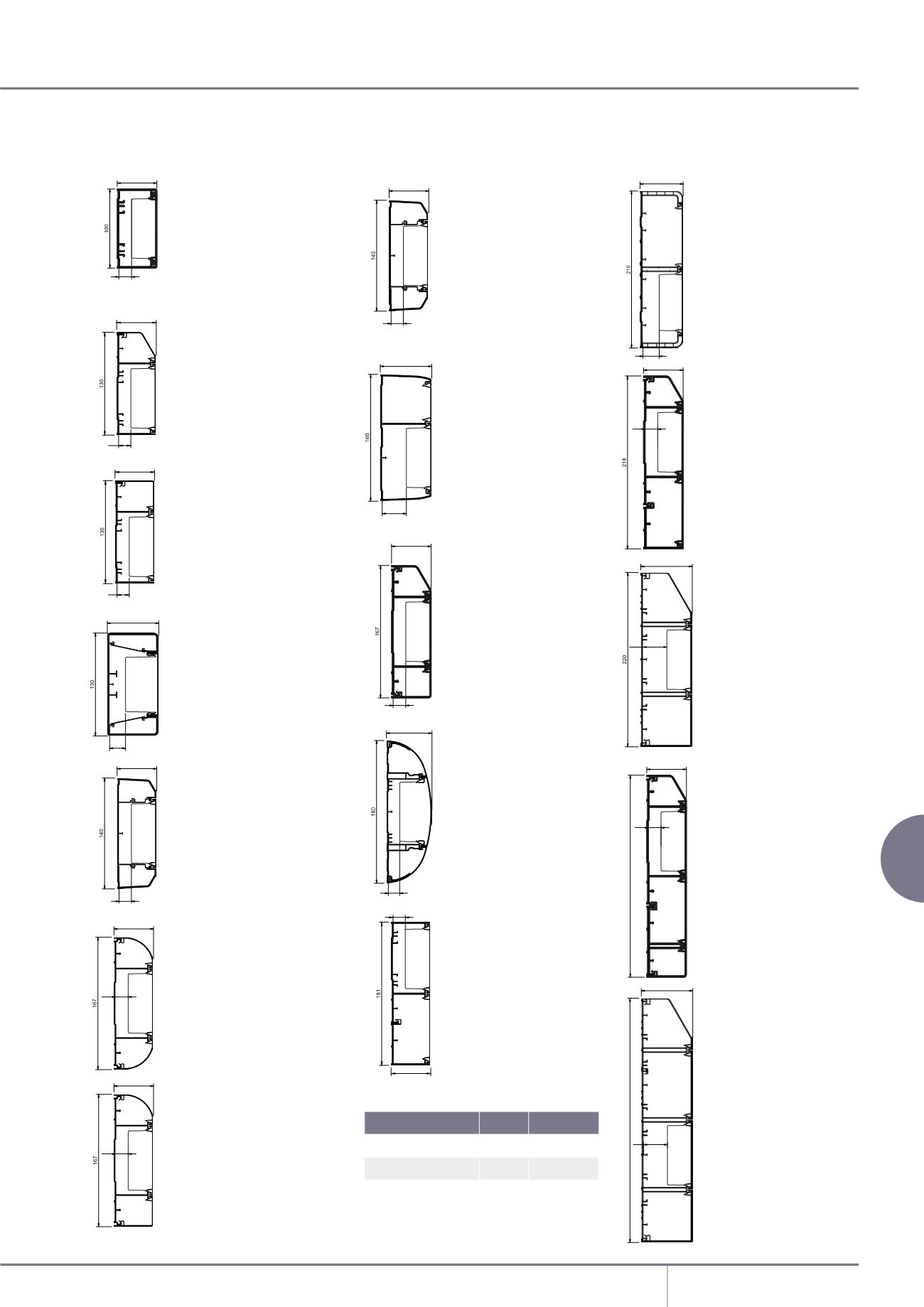

PVC-U perimeter trunking systems
| 269
Trunking sizes up to 150mm
Mono Plus 20 – no box
1 & 3 = 1024mm² total area
1 & 3 = 461mm² 45% space factor
2 = 3451mm² total area
2 = 1553mm² 45% space factor
With box in comp 2
2 = 1185mm²total area|
2 = 533mm²45% total area
Sterling Curve Profile 1– no box
1 & 3 = 1170mm² total area
1 & 3 = 527mm² 45% space factor
2 = 3858mm² total area
2 = 1736mm² 45% space factor
With box in comp 2
2 = 1376mm²total area
2 = 619mm²45% total area
Sterling Curve Profile 2– no box
1 = 1170mm² total area
1 = 527mm² 45% space factor
2 = 3858mm² total area
2 = 1736mm² 45% space factor
3 = 1542mm² total area
3 = 694mm² 45% space factor
With box in comp 2
2 = 1376mm² total area
2 = 619mm² 45% space factor
Compact 2 no box
1 = 1534mm² total area
1 = 690mm² 45% space factor
2 = 3763mm² total area
2 = 1693mm² 45% space factor
With box in comp 2
2 = 1497mm² total area
2 = 673mm² total area
Compact 1 no box
1 = 1280mm² total area
1 = 576mm² 45% space factor
2 = 3763mm² total area
2 = 1693mm² 45% space factor
With box in comp 2
2 = 1497mm²total area
2 = 673mm²45% space factor
Mono 10 no box
1 = 4141mm² total area
1 = 1863mm² 45% space factor
with box in comp 1
1 = 1874mm² total area
1 = 843mm² 45% space factor
Trunking sizes from 150mm to 200mm Trunking sizes over 200mm
Mono Plus 30 no box
1 = 1450mm² total area
1 = 652mm² 45% space factor
2 = 3829mm² total area
2 = 1723mm² 45% space factor
3 = 1646mm² total area
3 = 741mm² 45% space factor
With box in comp 2
2 =1563mm²total area
2 =703mm²45% space factor
Twin Plus – no box
1 & 2 = 4755mm² total area
1 & 2 = 2140mm² 45% space factor
With box in comps 1 or 2
1 & 2 = 2431mm² total area
1 & 2 = 1094mm² 45% space factor
Sterling Profile 4 no box
1 = 1266mm² total area
1 = 570mm² 45% space factor
2 = 3858mm² total area
2 = 1736mm² 45% space factor
3 = 3716mm² total area
3 = 1672mm² 45% space factor
With box in comp 2 or 3
2 = 1376mm² total area
2 = 619mm² 45% space factor
3 = 1234mm² total area
3 = 555mm² 45% space factor
XL 202
XL 202 – no box
1 = 2824mm² total area
1 = 1271mm² 45% space factor
2 = 4771mm² total area
2 = 2147mm² 45% space factor
3 = 3531mm² total area
3 = 1589mm² 45% space factor
With box in comp 2
2 = 2504mm² total area
2 = 1127mm² 45% space factor
Sterling Profile 12 no box
1 = 1266mm² total area
1 = 570mm² 45% space factor
2 = 3858mm² total area
2 = 1736mm² 45% space factor
3 = 3566mm² total area
3 = 1605mm² 45% space factor
4 = 1430mm² total area
4 = 644mm² 45% space factor
With box in comp 2 or 3
2 = 1376mm² total area
2 = 619mm² 45% space factor
3 = 1084mm² total area
3 = 488mm² 45% space factor
XL 212 – no box
1 = 2824mm² total area
1 = 1271mm² 45% space factor
2 = 4771mm² total area
2 = 2147mm² 45% space factor
3 = 4732mm² total area
3 = 2130mm² 45% space factor
4 = 3531mm² total area
4 = 1589mm² 45% space factor
With box in comps 2 or 3
2 = 2511mm² total area
2 = 1130mm² 45% space factor
3 = 2466mm² total area
3 = 1109mm² 45% space factor
Twin165 no box
1 = 3272mm² total area
1 = 1472mm² 45% space factor
2 = 5404mm² total area
2 = 2431mm² 45% space factor
With box in comp 2
2 = 3100mm² total area
2 = 1395mm² 45% space factor
C.MarshallLtd.
C.MarshallLtd.
PVC–U perimeter trunking capacity guide
Series R 130
with box and segregators
1 & 3 = 957mm² total area
1 & 3 = 431mm² 45% space factor
2 = 2210mm² total area
2 = 995mm² 45% space factor
without segregators
1 = 4272mm²total area
1 = 1922mm² 45% space factor
Conductor type Size Cable factor
Stranded PVC power 1.5mm² 8.0
Stranded PVC power 2.5mm² 11.9
Stranded PVC power 4.0mm² 16.6
For Data cable information, please see page 246
Sterling Profile 2 no box
1 = 1266mm² total area
1 = 570mm² 45% space factor
2 = 3858mm² total area
2 = 1736mm² 45% space factor
3 = 1542mm² total area
3 = 694mm² 45% space factor
With box in comp 2
2 = 1376mm² total area
2 = 619mm² 45% space factor
Odyssey no box
1 & 3 = 1256mm² total area
1 & 3 = 565mm² 45% space factor
2 = 4022mm² 45% total area
2 = 1810mm² 45% space factor
With box in comp 2
2 = 1230mm² total area
2 = 554mm² 45% space factor
Compact 3 – no box
1 = 3763mm² total area
1 = 1693mm² 45% space factor
2 = 3700mm² total area
2 = 1665mm² 45% space factor
With box in comps 1 and 2
1 = 1503mm²total area
1 = 676mm²45% space factor
2 = 1440mm² total area
2 = 648mm² 45% space factor
