TECHNICAL INFORMATION
Technical information
264 |

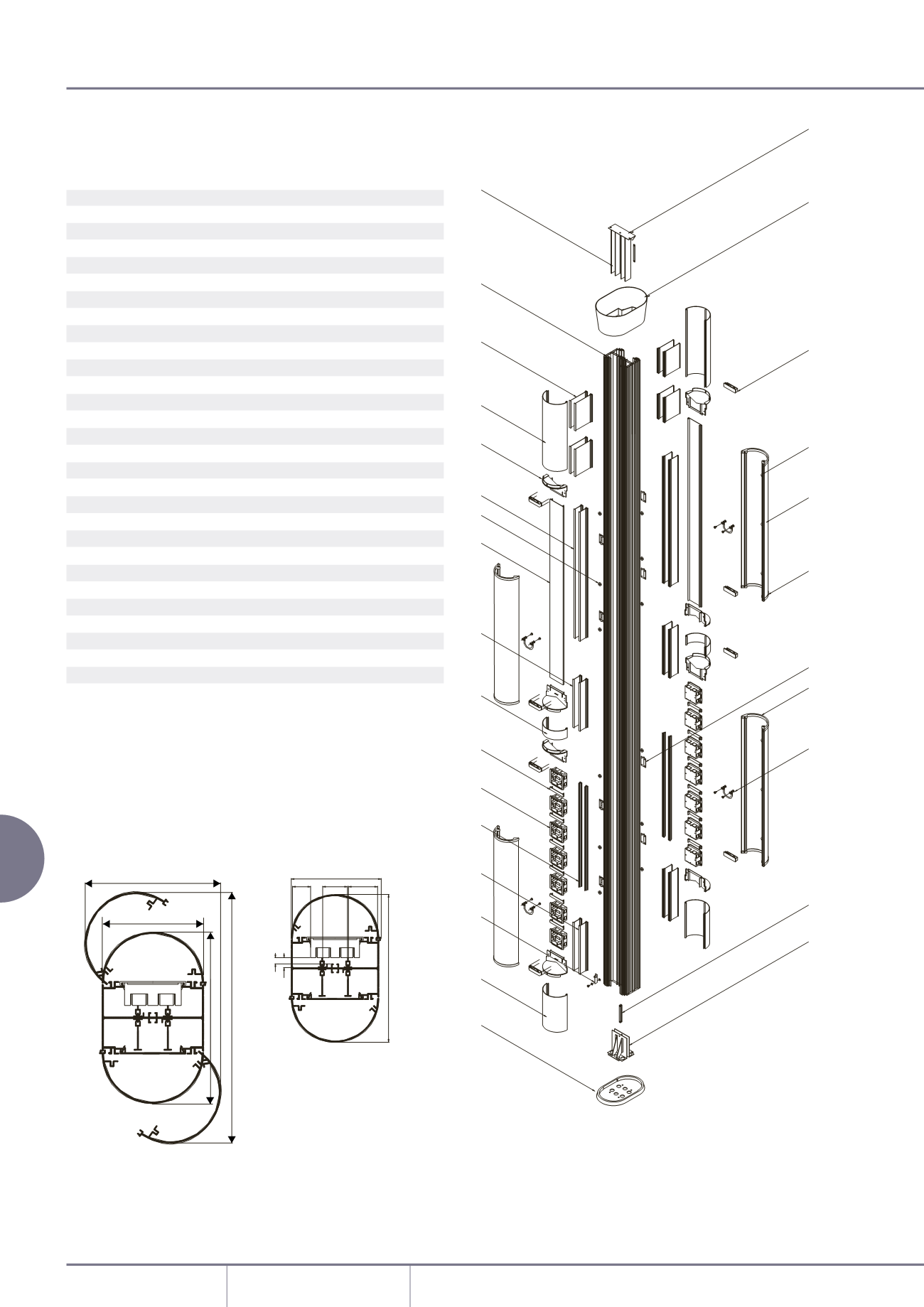

PowerPoles and PowerPosts
Series 2 PowerPole
Double sided PowerPole
with 4 hinged lids and 14 ESSB1WH outlets (NPPE36001441)
Code
Description
Quantity
FF NPPMB3600
Square PowerPole base 3600mm long
1
A NPPHLA/W#
Hinged lid assembly
4
P NPPCL1720
Clip on lid 1720mm long
2
Q NPPCL50
Clip on lid 50mm long
2
R NPPCL200
Clip on lid 200mm long
2
J
NPPUT
Hinged lid upper trim
4
K NPPLT
Hinged lid lower trim
4
GG NPPTC3
Oval top sliding cover
1
HH NPPBF5
Oval base foot
1
B NPPBH1
Bulkhead
8
II
PPBF3
Base foot (galvanised)2
E NPPCC1
Cable clip
8
C ESSB1
Single gang box
14
D ES1
Spacing cover
12
F NPPH1
Stainless steel hinges
8
I
PPSN1
Sliding nut
3
H NPPLH1
Disc latch
12
M NPPMC1
Magnet catch
12
G NPPLBS1
Hinged lid bonding strap
4
LBS2
Clip on lid bonding strap
6
L
PPBT1
16mm bonding terminal assembly
1
S *PHAS1
Top adjusting slide 250mm long
1
T NPPFB2
Top fixing bracket
1
W MDFS100W1630 100mm dividing fillet 1630mm long
4
Y MDFS50W710
50mm dividing fillet 710mm long
4
Z MDFS50W200
50mm dividing fillet 200mm long
4
AA MDFS15W632
15mm dividing fillet 632mm long
4
JJ
MDFS50W175
50mm dividing fillet 175mm long
4
V ETL1W633
Sterling lid 633mm long
2
140
136
162
189
335
229
181
142
A
B
C
B
D
C
A
A
28
140
15
9
38 45
229
Dimensions and cable capacities
A = 1313 sq mm total area
45% space factor = 591 sq mm.
B = 505 sq mm total area
45% space factor = 227 sq mm.
C = 1798 sq mm total area
45% space factor = 809 sq mm.
D = 1628 sq mm total area
45% space factor = 733 sq mm.
S
FF
W
P
B
Y
H
V
Z
Q
D
C
AA
JJ
L
R
HH
T
GG
E
M
A
K
F
J
G
I
II
#Please use A or W to denote anodised or white
Note:
The Sterling PowerPole is suitable for both solid and
suspended ceilings up to 3.6 metres high. An alternative adjusting
slide which can be extended to one metre is available for additional
heights within the ceiling void (*PHAS2).
Full installation instructions are included within each pack.
