Technical information
Underfloor to desk
| 259
Powertrack
Powertrack is an underfloor busbar system
rated at 63Amp maximum. It is available in
Standard or CE (Clean Earth) versions.
Lengths
• Powertrack lengths of 1.2m, 1.8m , 2.4m
and 3.6mwith tap-off outlets at 300mm
Safety
• Snap-fit feed units, couplers and
tap-offs are key and colour-coded to
avoid assembly errors.
• A shutter is operated on insertion to
prevent accidental contact.
• Avoid exceeding the maximum power
rating of the track. This is ascertained
by the maximum power requirement for
each floor outlet box
Positioning
• For the most economic format, it is
advised that Powertrack is arranged in
parallel runs with powertrack feed units
orientated to the incoming supply.
• For optimum layout flexibility, spacing
should be a maximum of 5.5m between
each length of track and 2.5m from the
perimeter when using a standard 3m
tap-off to a floor box.
Installation

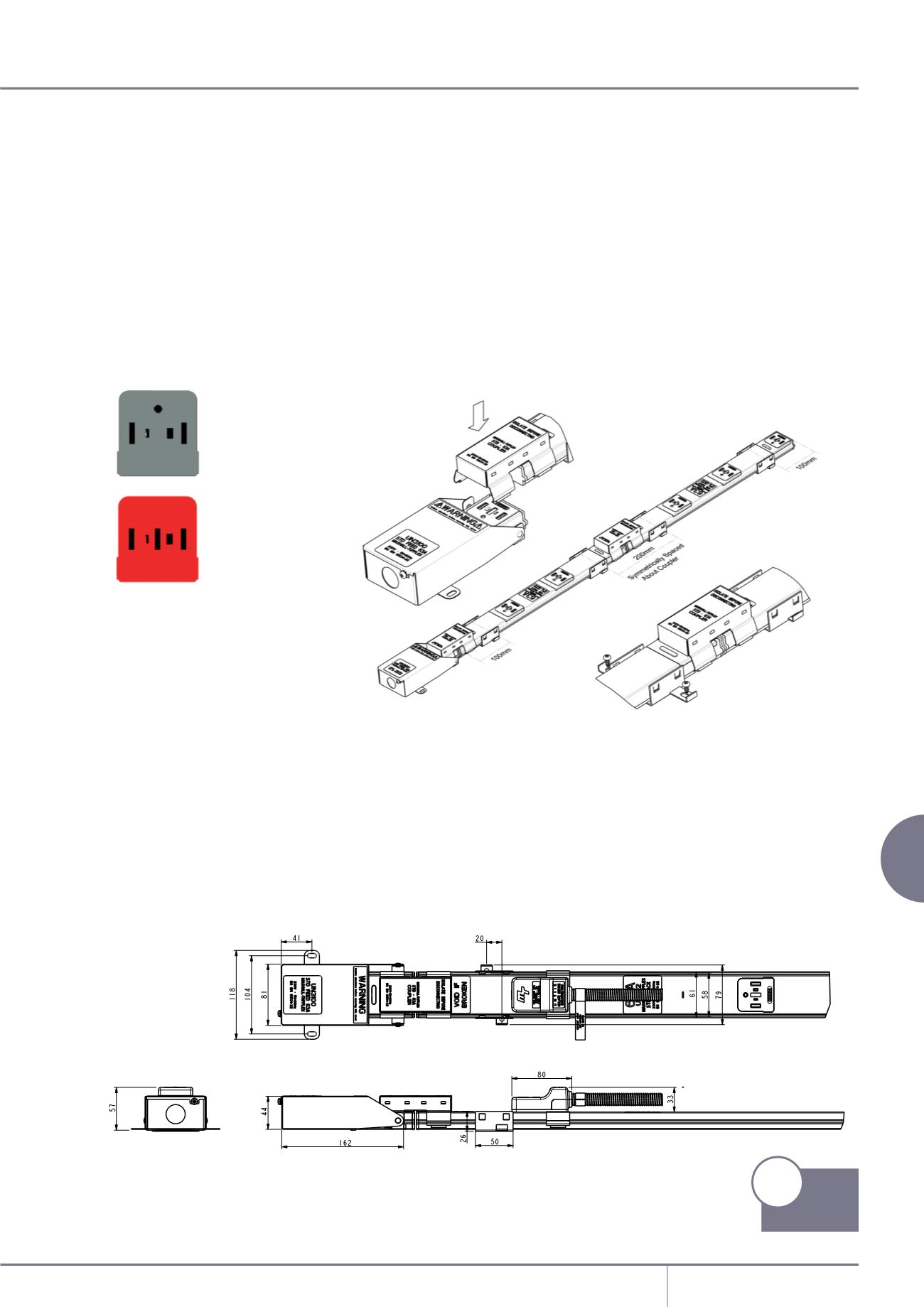

• Lay out track lengths and feed unit as
required to suit final assembly
• Position and secure the feed unit in
place
• Carefully engage the first track length on
to the feed unit socket
• Ensure the clip action is secure at
the coupler and unit feed also that
alignment is correct in laying the track
length to the floor
Standard = grey
CE = red
• Secure the track length in place along its
length at recommended spacing shown
below using the brackets provided
• Additional track lengths can now be
placed as below.
• Ensure the assembly is secure and
prepare to make electrical connections
Please refer to the full installation instructions, EL182 available at
www.marshall-tufflex.comor by contacting the Technical Team on +44 (0)1424 856688.
Pull out track fixing bracket
lugs and screw down. Fix on
both sides
Recommended mounting
bracket spacing shown for
1.2m and 1.8m track lengths
For 2.4m and 3.6m track
lengths, 3rd mounting bracket
should be fixed mid-way
between the end brackets
