17 / 36
17

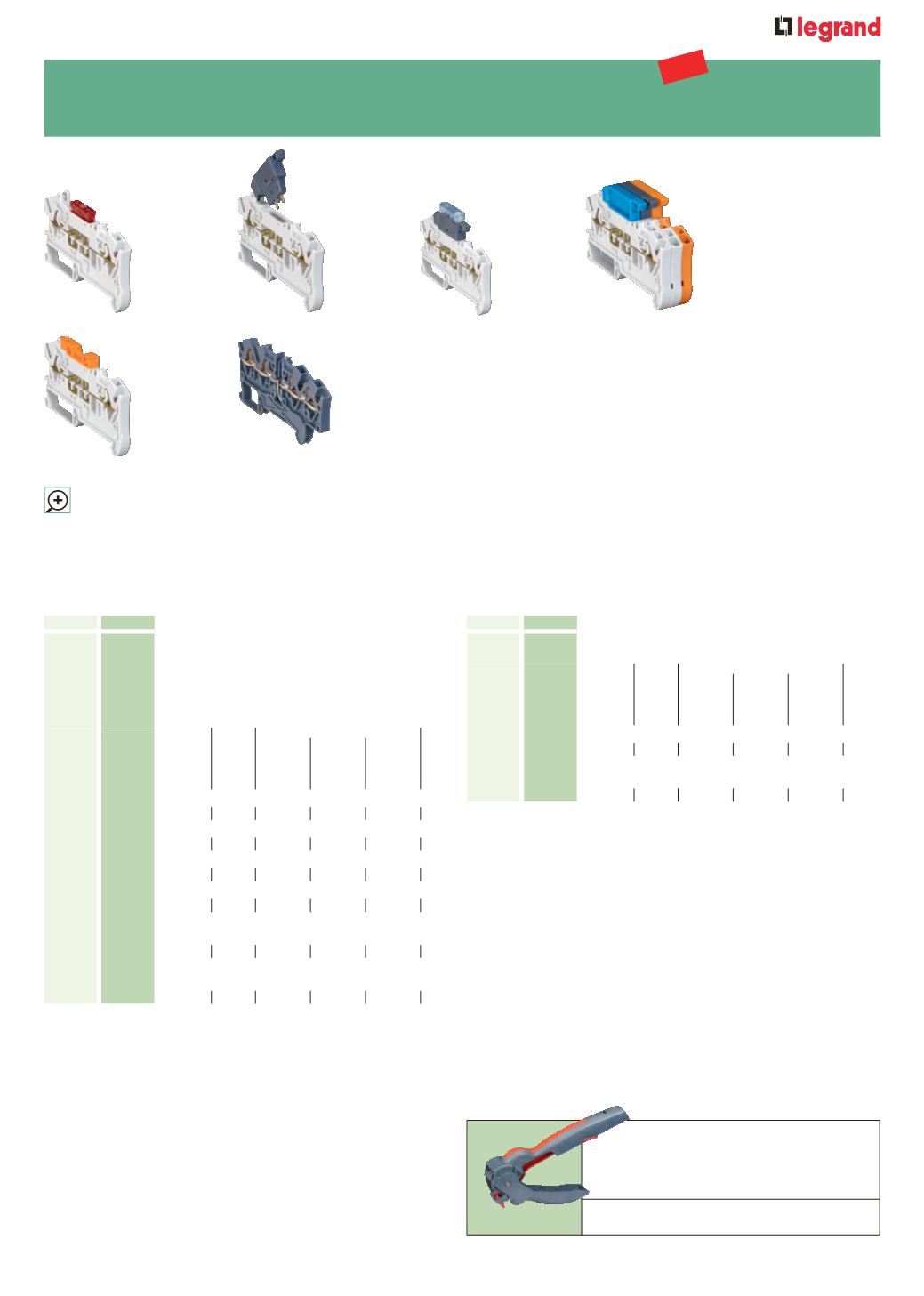

Viking 3
terminal blocks with spring connection (continued)
Screwless connection system, stainless steel spring type
Used to make the electrical connection between 2 rigid copper cables, or flexible cables with or without ferrule
(p. 30)Direct tool-free insertion of a rigid cable or flexible cable with ferrule, up to 6 mm width
2 areas for bridging combs for alternating equipotential connection
For rails
2
depth 15 mm,
2
EN 60715 depth 7. 5 mm and 15 mm
Blade type levers, joining rods and blown fuse indicators (p. 19) Accessories (p. 18) End stops (p. 18)Red catalogue numbers: New products
Pack
Cat. Nos.
Disconnect terminal blocks 1 connection -
2 cables
Disconnection by means of blade type lever, handle
lever or mini lever (with tool)
Open (to be equipped)
Can take a blade-type automotive fuse or a miniature
circuit breaker, blade type levers
Cat. Nos. 0375 15/16/17/18
Colour
Nominal
cross-
section
(mm²)
Capacity
Width
(mm)
Rigid cable
(mm
2
)
Flexible
cable
(mm
2
)
Flexible
cable with
ferrule
(mm
2
)
20
0372 80
Grey 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 6
For fuse cartridge 5 x 20 with handle lever
20
0372 81
Grey 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 6
For neutral circuit with blue handle lever
20
0372 82
Grey/blue 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 6
For standard circuit with handle lever
20
0372 83
Grey 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 6
For standard circuit with mini lever
20
0372 84
Grey 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 6
For circuit not broken with handle lever
Circuit not broken by the master isolating device
20
0372 85
Orange 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 6
For circuit not broken with mini lever
Circuit not broken by the master isolating device
20
0372 86
Orange 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 0 . 5 to 2 . 5 6
Pack
Cat. Nos.
Function blocks
1 connection - 4 cables - 2 entries/2 outlets -
diode-carrier
Colour
Nominal
cross-
section
(mm²)
Capacity
Width
(mm)
Rigid cable
(mm
2
)
Flexible
cable
(mm
2
)
Flexible
cable with
ferrule
(mm
2
)
60
0372 54
Grey
4 0 . 5 to 6 0 . 5 to 4 0 . 5 to 2 . 5 5
2 connections - 4 cables - 2 levels - diode carrier
60
0372 55
Grey
4 0 . 5 to 6 0 . 5 to 4 0 . 5 to 2 . 5 5
2 connections - 4 cables - 2 levels - with LED
Voltage presence indicator (12/24V
=
/
A
)
60
0372 56
Grey
4 0 . 5 to 6 0 . 5 to 4 0 . 5 to 2 . 5 5
NEW
0372 81
open
0372 82
+
0372 83
+
0372 85
0372 80
with automotive-type fuse
0372 84
0372 54
0372 81
with blown fuse
indicator (p. 19)
see p. 30 New Starfix crimping tools Technical characteristics (p. 22)
