Legrand - Viking 3 Terminals

18 / 36

18
Red catalogue numbers: New products
(1) Blocks Cat. Nos. 0371 51/52: upper level only
Block Cat. No. 0372 56: lower level only
Pack Cat. Nos. Rails for cutting to length
Length 2 m
10 0374 04 4 EN 60715 depth 7. 5 mm
10 0374 07 3 depth 15 mm
45° mounting bracket
10 0394 49 Set of 2 supports for tilting a rail
at an angle of 45°
Supplied with 4 x M6 screws, nuts an washers
End stops
Accept CAB 3 markers
Automatic 6 mm width
50 0375 10 Screwless mounting
For rails 4 depth 15 mm and 4 EN 60715
depth 7. 5 mm and 15 mm
Accepts label holder Cat. No. 0395 96
Acts as end cap for screw terminal blocks
1 entry/1 outlet 5, 6, 8 and 10 mm width
8 mm width
20 0375 11 For rails 4 depth 15 mm and 4 EN 60715
depth 7. 5 mm and 15 mm
Accepts label holder Cat. No. 0395 96
10 mm width
10 0375 12 For rails 4 depth 15 mm and 4 EN 60715 depth
7. 5 mm (except for rail fixed on plate) and 15 mm
For supporting protection conductor bar:
- Brass bar Cat. Nos. 0373 00/01
- Copper bar 12 x 4 mm with clamps
Cat. No. 0373 02
- IP 2X terminal block with flat steel bar 12 x 2 mm
Cat. No. 0048 19
- Copper bar 12 x 4 mm Cat. No. 0373 49 or 0373 89
- Shielding bar 10 x 3 mm Cat. No. 0375 34
12 mm width
20 0375 13 For rails 1 EN 60715, 4 depth 15 mm and 4
EN 60715 depth 7·5 mm and 15 mm
After cutting out the upper divider, can be labelled
Identification accessories
20 0395 96 Transparent label holder with variable angle
Fixing on end stops Cat. Nos. 0375 10/11
Supplied with label 32 x 9 . 5 mm
Can take label Cat. No. 0395 97
20 0395 97 Label for engraving 28 x 9 . 5 mm
For label holder Cat. No. 0395 96. Flexible ABS
White background, black engraving
10 0395 98 Black felt tip pen for
permanent marking
Pack Cat. Nos. End caps
Grey
For screw terminal blocks
100 0375 50 1 entry/1 outlet 5, 6, 8 and 10 mm width
20 0375 51 1 entry/1 outlet 12 and 15 mm width
20 0375 52 2 entries/2 outlets
20 0375 53 2 levels
20 0375 54 3 levels
20 0375 55 Disconnect terminal 6 mm width and function blocks
5 mm width
20 0375 56 Disconnect terminal fuse cartridge 5 x 20 with
screwed plug
10 0375 57 Disconnect for measurement
For spring terminal blocks with 5 mm width
Allows the block to become 6 mm width and take
a flexible cable fitted with a ferrule 4 mm2
50 0375 86 1 entry/1 outlet
50 0375 87 1 entry/2 outlets
20 0375 88 2 entries/2 outlets
20 0375 89 2 levels
For spring terminal blocks with 6 mm width
20 0375 90 Disconnect type
Separation and insulation dividers
Grey
For screw terminal blocks
20 0375 60 1 entry/1 outlet 5, 6, 8 and 10 mm width
10 0375 61 1 entry/1 outlet 12 and 15 mm width
10 0375 62 2 entry/2 outlets and disconnect
6 mm width blocks
10 0375 63 2 levels
20 0375 54 3 levels
For spring terminal blocks
10 0375 95 1 entry/1 outlet, 1 entry/2 outlets and
2 entry/2 outlets 5 and 6 mm width
10 0375 96 2 levels
Equipotential bridging accessories
Bridging combs for screw and spring terminal blocks
Front mounting (automatic insertion), screwless
Isolated and separable. Consecutive or
alternating connection. Red
20 0375 01 (1) For 10 blocks with 5 mm width
50 0375 02 (1) For 2 blocks with 5 mm width
20 0375 04(1) For 10 blocks with 6 mm width
50 0375 05(1) For 2 blocks with 6 mm width
20 0375 07 (1) For 3 blocks with 8 mm width
20 0375 08(1) For 2 blocks with 8 mm width

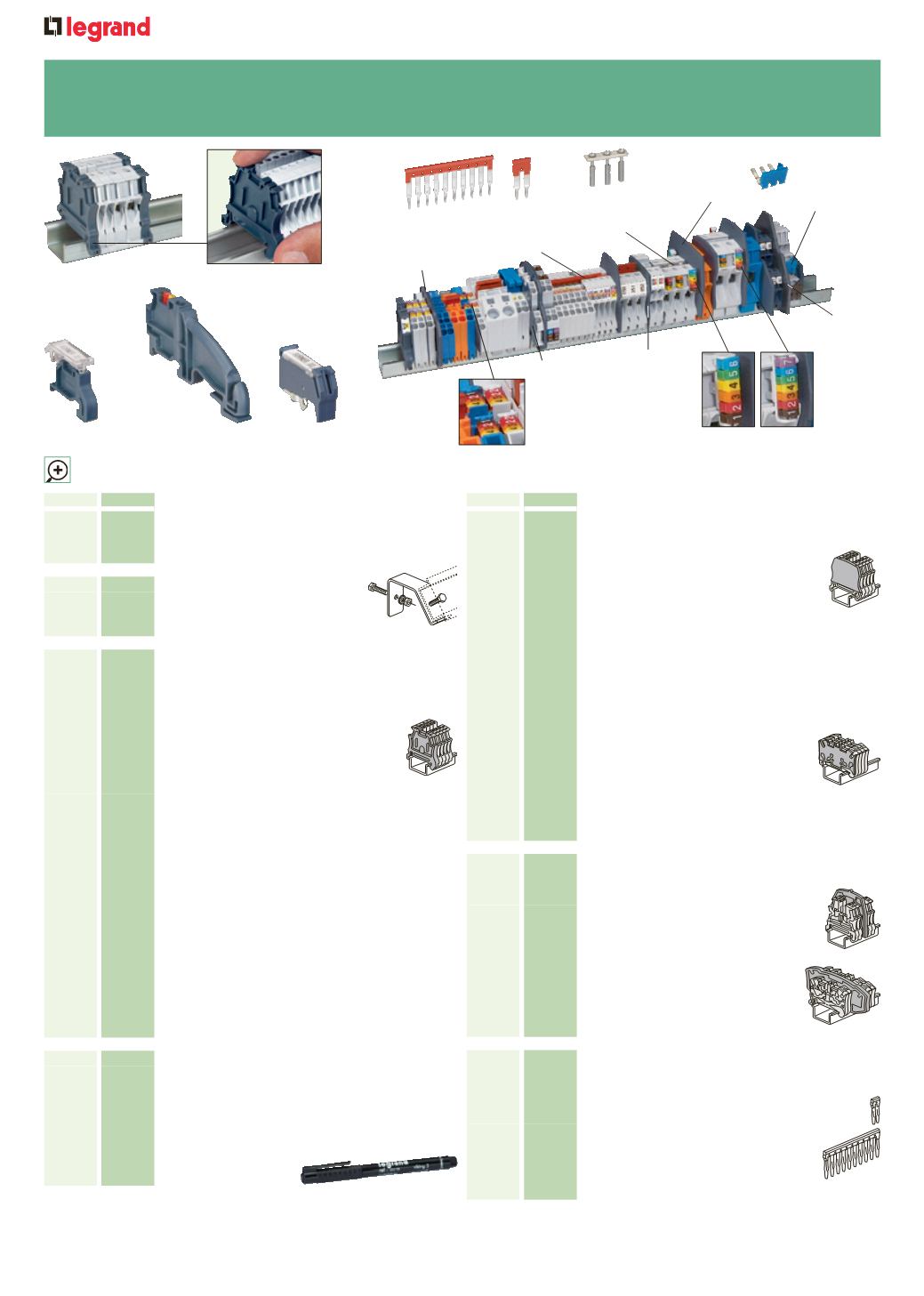

Viking 3 accessories for terminal blocks
0375 12 with CAB 3 labelling 0375 11 with label
holder 0395 96
End stop 0375 10, screwless mounting
Automatic bridging combs Cat.
Nos. 0375 01 to 0375 08 for terminal
blocks with screw
CAB 3 markers
0375 62
0375 95
0375 52
0375 89
0375 54
Equipotential bars Cat.
Nos. 0375 40/42/44 for
terminal blocks with
screw connection
Bridging combs
Cat. Nos. 0375 46/47
for 3 level terminal
blocks with screw
connection
CAB 3 label holders
Cat. No. 0383 92 for terminal
blocks with screw connection
0375 13 with label holder
