Red catalogue numbers: New products
Pack
Cat. Nos.
For copper and aluminium cables
Bridging the gap between the enclosure and
external cables
Fixed using metal clip for rails
4
15 mm depth and
4
EN 60715, 15 mm depth or on plate with screws
Fitted with covers with cut-outs
Permits the use of CAB 3 markers
Test via test plug Ø4 closed covers
Blocks with identical width can be joined using
a threaded rod
Supports shunt with Cat. Nos. 0394 46/47
Cable/cable
Rigid or flexible
connecting cable
(mm²)
Rigid or flexible
connecting cable
(mm²)
Width (mm)
5
0390 10 Al/Cu 35 to 120 Cu 35 to 70
42
5
0390 11 Al/Cu 70 to 300 Cu 70 to 150
55
Terminal for cable lug/terminal for cable lug
Connecting plate
max. (mm²)
Connecting plate
max. (mm²)
Width (mm)
5
0390 13 Al/Cu 95
Al/Cu 95
36
5
0390 14 Al/Cu 150
Al/Cu 150
42
5
0390 15 Al/Cu 300
Al/Cu 300
55
Terminal for cable lug/cable
Connecting plate
max. (mm²)
Rigid or flexible
connecting cable
(mm²)
Width (mm)
5
0390 17 Al/Cu 150
Cu 35 to 95
42
5
0390 18 Al/Cu 300
Cu 70 to 150
55
Cable/terminal for cable lug
Rigid or flexible
connecting cable
(mm²)
Connecting plate
max. (mm²)
Width (mm)
5
0390 20 Cu 35 to 120
Al 35 to 120
Al/Cu 120
Al/Cu 70
42
5
0390 21 Cu 70 to 300
Al 70 to 300
Al/Cu 300
Al/Cu 150
55
Accessories for heavy duty terminal blocks
for copper and aluminium cables
Shunt
5
0394 46 For blocks with width 36 and 42 mm
5
0394 47 For blocks with width 55 mm
Pack
Cat. Nos.
Plate power terminal blocks
Bridging the gap between the enclosure and
external cables
Plastic foot
For use with terminal marker sheets
For symmetrical rails
Fixed using metal clip on rails
4
15 mm depth
and
4
EN 60715, 15 mm depth
Connecting max.
(mm²)
Width of plate
(mm)
Screw Ø
Width (mm)
5
0390 71
35
15
M 8
26
5
0390 72
70
20
M 10
34
5
0390 73
120
25
M 10
34
5
0390 74
240
35
M 12
46
For asymmetrical rails
Fixed using metal clip on rails
1
EN 60715
5
0390 31 35
15
M 8
26
5
0390 32 70
20
M 10
34
5
0390 33 120
25
M 10
34
5
0390 34 240
35
M 12
46
Accessories for heavy duty plate terminal
blocks
Separation barriers
Take protective covers
Marking possible with CAB 3
10
0394 77 For terminals with width 26 mm
10
0394 78 For terminals with width 34 and 46 mm
Protective covers
For mounting on separation barriers
5
0394 86 For 3 terminals with width 46 mm
or for 4 terminals with width 34 mm
5
0394 88 For 4 terminals with width 26 mm
5
0394 89 For 4 terminals with width 46 mm

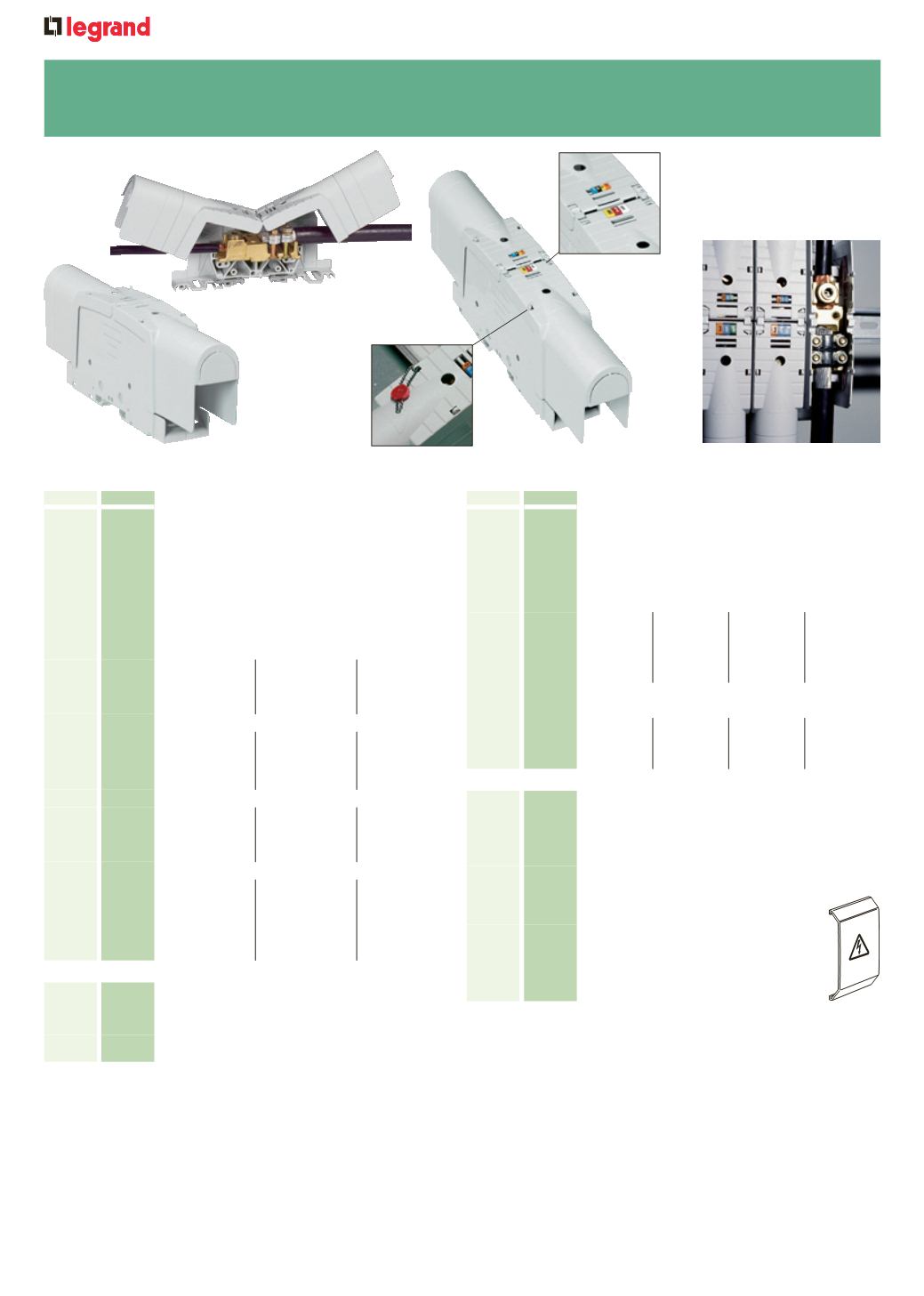

Viking 3
heavy duty terminal blocks
0390 10
Direct connection Al/Cu
0390 11
0390 11 (interior view)
With CAB 3 marking
Possibility of sealing
End stops (p. 19)
