Legrand - Viking 3 Terminals

14 / 36

14
Red catalogue numbers: New products
(1)Built-in end cap
(2) Cable capacity: 2 . 5 mm2 max. with equipotential bridging comb

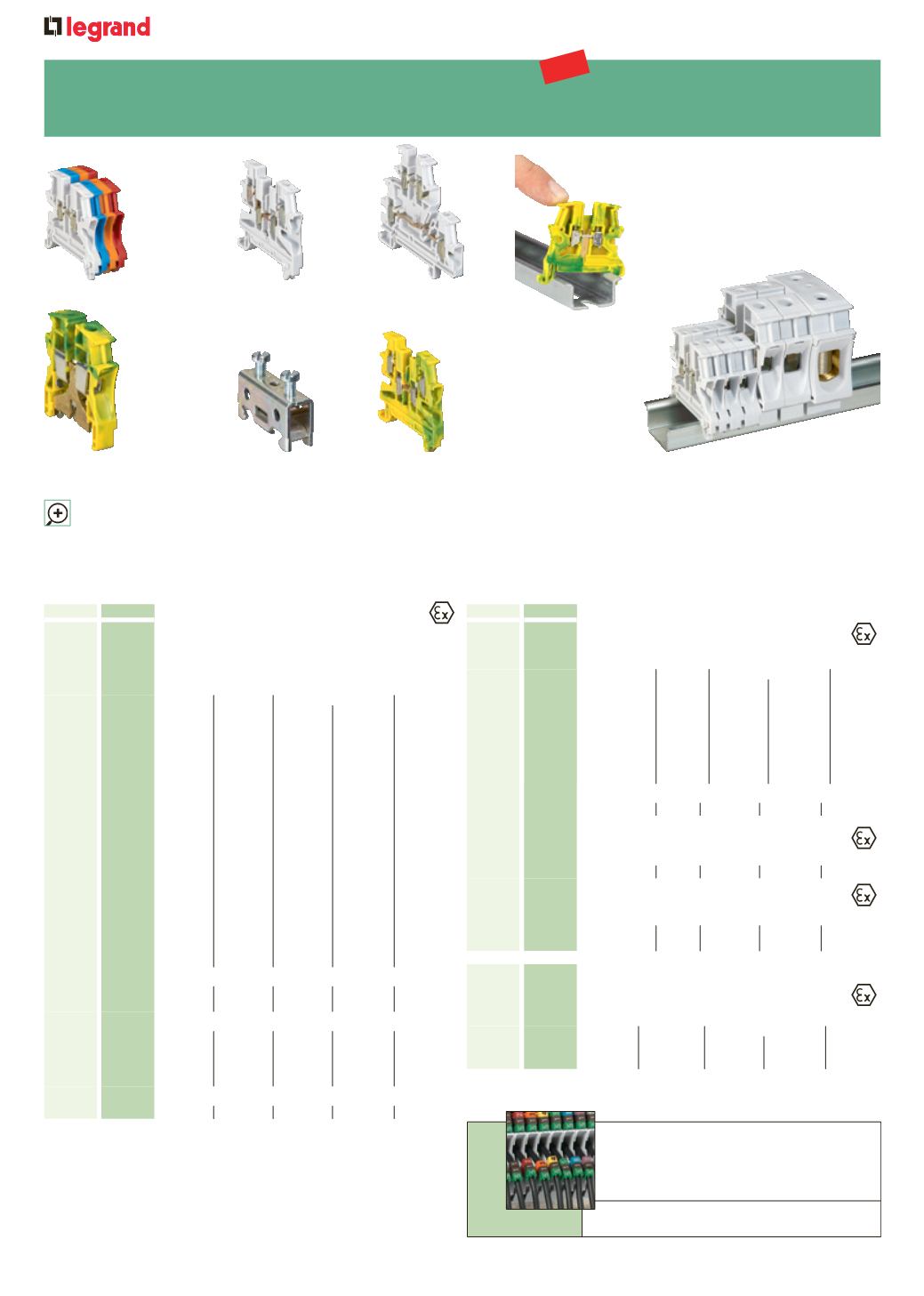

Viking 3 terminal blocks with screw connection
Used to make the electrical connection between 2 rigid or flexible copper cables
2 areas for bridging combs for alternating equipotential connection up to 8 width
For rails 2 depth 15 mm, 2 EN 60715 depth 7·5 mm and 15 mm
0371 60 + 0371 00 + 0371 20 +
0371 30
0371 69 0371 68
0371 79 0371 74 0371 76 0371 60 + 0371 61 + 0371 62 + 0371 63 +
0371 64 + 371 65 + 371 66
0371 70 on rail 4
Pack Cat. Nos. Connecting
Grey for standard circuit, blue for neutral
conductor, orange for circuit not broken by
the master isolating device, red for special circuits
(safety, protected, etc)
1 connection - 1 entry/1 outlet
Colour
Nominal
cross-section
(mm²)
Capacity
Width (mm)
Rigid cable
(mm2 )
Flexible
cable (mm2 )
60 0371 60 Grey
2·5 0 . 25 to 4 0 . 25 to 2 . 5 5
60 0371 00 Blue
60 0371 20 Orange
60 0371 30 Red
50 0371 61 Grey
4 0 . 25 to 6 0 . 25 to 4 6 50 0371 01 Blue
50 0371 21 Orange
50 0371 31 Red
40 0371 62 Grey 6 0 . 5 to 10 0 . 25 to 6 8
40 0371 02 Blue
30 0371 63 Grey 10 1. 5 to 16 2 . 5 to 10 10
30 0371 03 Blue
20 0371 64 Grey 16 1. 5 to 25 4 to 16 12
20 0371 04 Blue
20 0371 65 Grey 35 2 . 5 to 50 4 to 35 15
20 0371 05 Blue
10 0371 66(1) Grey 70 25 to 95 16 to 70 22
1 connection - 2 entries/2 outlets
25 0371 69 Grey 4 0 . 25 to 6 0 . 25 to 4 6
25 0371 09 Blue
2 connections on 2 levels
60 0371 67 Grey 2 . 5 0 . 25 to 4 0 . 25 to 2 . 5 5
60 0371 07 Blue
60 0371 68 Grey 4 0 . 25 to 6 0 . 25 to 4 6
60 0371 08 Blue
3 connections on 3 levels
50 0371 51(2) Grey 2 . 5 0 . 25 to 4 0 . 25 to 2 . 5 5
Pack Cat. Nos. For protection conductor
1 connection - 1 entry/1 outlet - metal base
Screwless fixing on rail up to 10 mm width
PEN from 10 mm2
Colour
Nominal
cross-
section
(mm²)
Capacity
Width
(mm)
Rigid cable
(mm2 )
Flexible
cable (mm2)
60 0371 70 Green/yellow 2 . 5 0 . 25 to 4 0 . 25 to 2 . 5 5
50 0371 71 Green/yellow 4 0 . 25 to 6 0 . 25 to 4 6
40 0371 72 Green/yellow 6 0 . 5 to 10 0 . 25 to 6 8
30 0371 73 Green/yellow 10 1. 5 to 16 2 . 5 to 10 10
10 0371 74 Green/yellow 16 1. 5 to 25 4 to 16 12
10 0371 75 Green/yellow 35 2 . 5 to 50 4 to 35 15
1 connection - bare block - metal base
10 0371 76 - 35 2 . 5 to 50 4 to 35 15
1 connection - 2 entries/2 outlets -
metal base
Screwless fixing on rail
50 0371 79 Green/yellow 4 0 . 25 to 6 0 . 25 to 4 6
1 connection - 1 entry/1 outlet - plastic base
Can be used for protection conductor inside
class II equivalent assemblies
50 0371 77 Green 4 0 . 25 to 6 0 . 25 to 4 6
40 0371 78 Green 6 0 . 5 to 10 0 . 25 to 6 8
PNE - Phase/Neutral/Earth
3 connections on 3 levels - metal base
Green/yellow marking for the lower level
Screwless fixing on rail
Colour
Nominal
cross-section
(mm²)
Capacity
Width (mm)
Rigid cable
(mm2)
Flexible
cable (mm2 )
50 0371 52 (2) Grey 2 . 5 0 . 25 to 4 0 . 25 to 2 . 5 5
NEW
