General Catalogue • Modular Devices • Technical

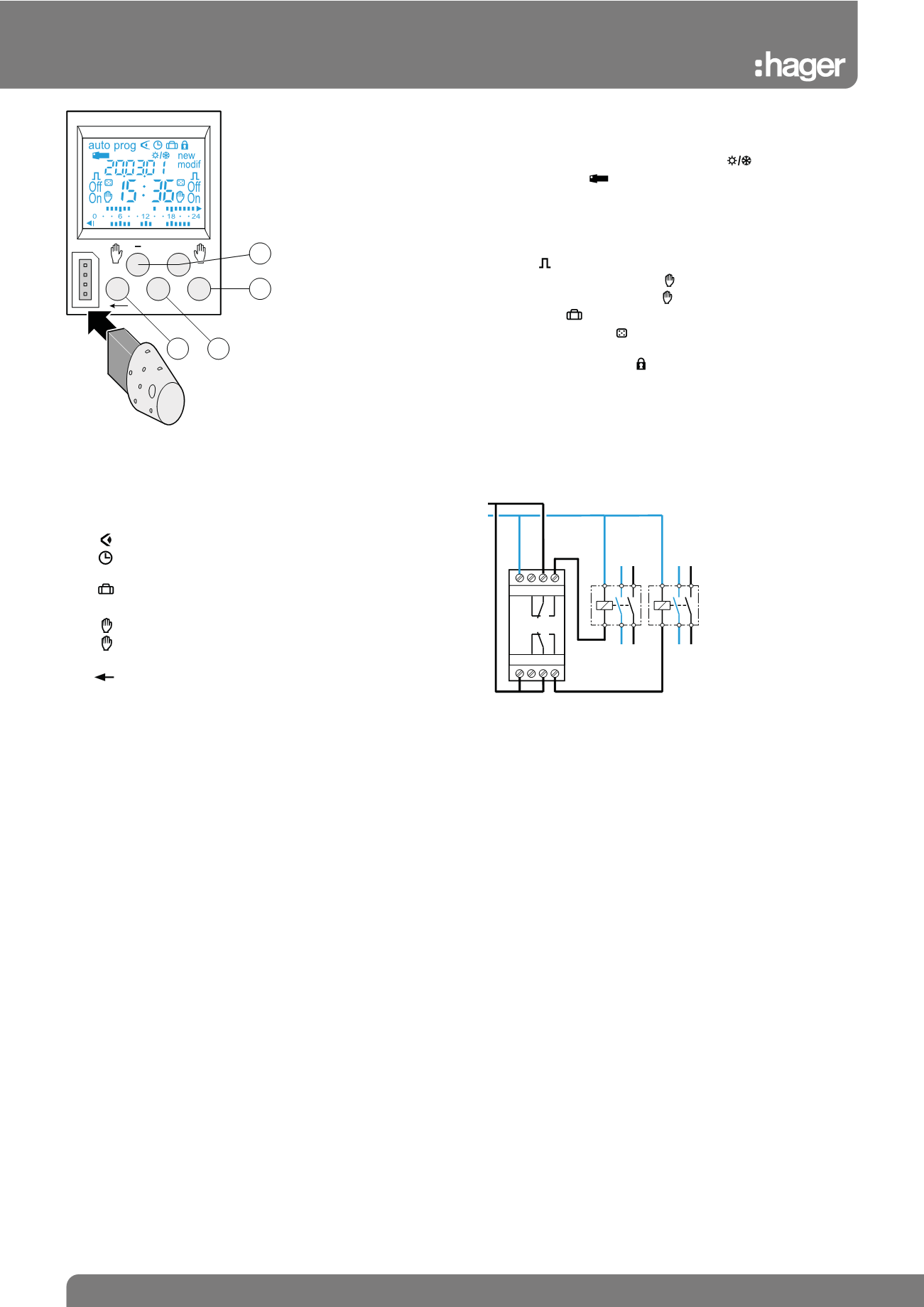

2 Channel Electronic Time Switch
Weekly Cycle (EG203, EG203E)
Keys
1. Menu Selection of operating mode
Auto Mode of running according to the program selected
Prog New for programming mode
Prog To modify an existing program
Checking of the program
Modification of time, date and selection of the winter/
summer time change mode.
Holidays
2. + / - Navigation or setting of values
A
In auto, mode, selection of overrides, waiver or random
operation.
B
3. OK To validate flashing information on display
4.
To return to the previous step
You may return into auto mode at any moment using menu.
If no action is taken for 1 min, the switch returns to auto mode.
Major Characteristics
• Product delivered with current time and date set
• Automatic change of winter / summer time
• Programming key
- For permanent waivers
- For program copy or save
• Programming for day or group of days
• 56 program steps On, Off
• Impulses (1 sec to 30 min)*
• Permanent overrides On or Off ( permanent light on)
• Temporary overrides On or Off ( flashing)
• Holiday mode : overrides On or Off between two dates*
• Simulation of presence *
• Display bar graph of daily profile
• Keyboard locking possible
• Programmable with power off
• Back lit display*
* evolution models E only
Connection Diagram
ok menu
+
A
B
1
2
3 4
L
N
1 3 5 7
2 4 6 8
