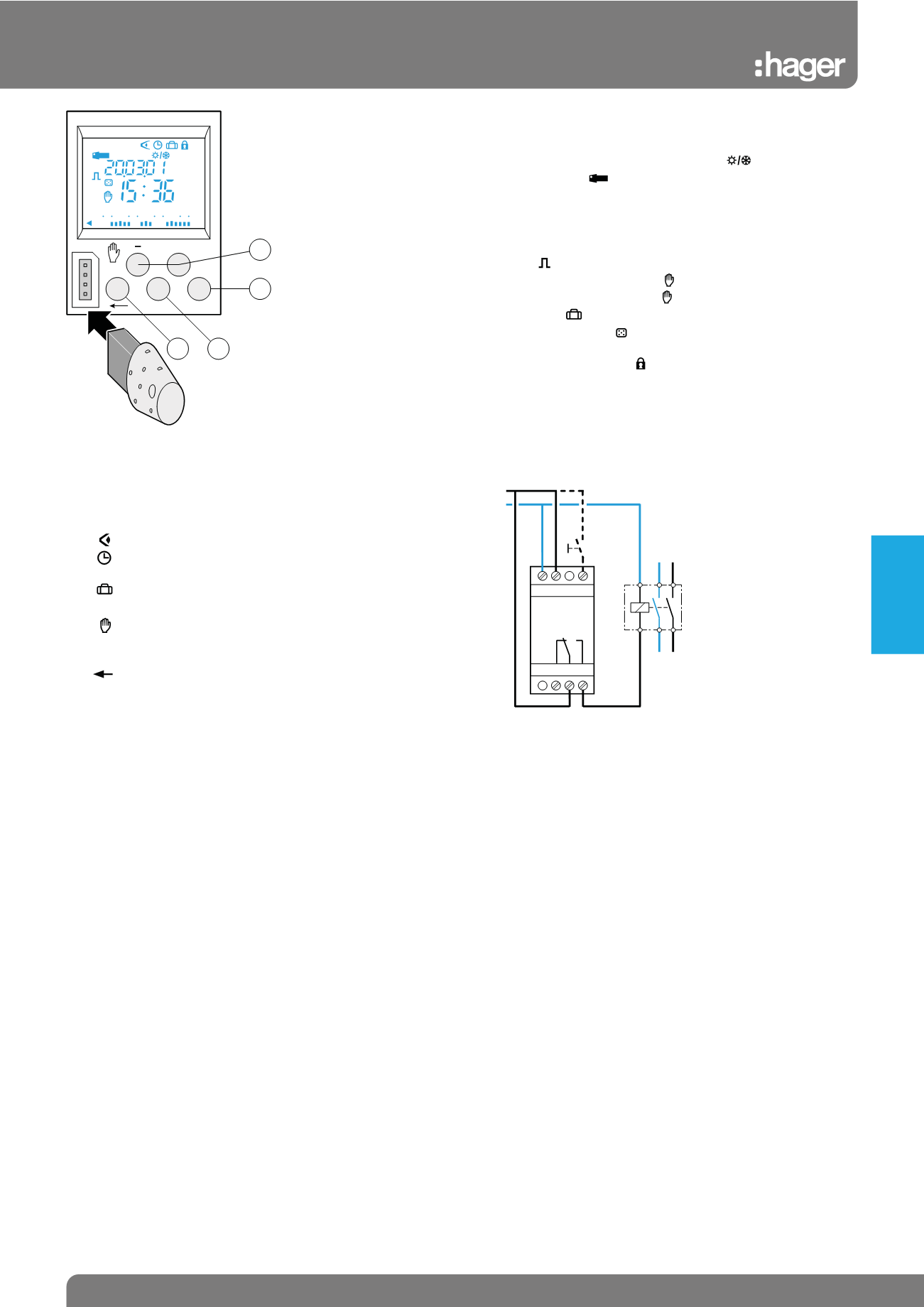

1 Channel Electronic Time Switch

Weekly Cycle (EG103, EG103E, EG103V)

Keys

1. Menu Selection of operating mode

Auto Mode of running according to the program selected

Prog New for programming mode

Prog To modify an existing program

Checking of the program

Modification of time, date and selection of the winter/

summer time change mode.

Holidays

2. + / - Navigation or setting of values

In auto, mode, selection of overrides, waivers or

random operation

3. OK To validate flashing information on display

To return to the previous step

You may return into auto mode at any moment using menu.

If no action is taken for 1 min, the switch returns to auto mode.

Major Characteristics

• Product delivered with current time and date set

• Automatic change of winter / summer time

• Programming key

- For permanent waivers

- For program copy or save

• Programming for day or group of days

• 56 program steps On, Off

• Impulses (1 sec to 30 min)*

• Permanent overrides On or Off ( permanent light on)

• Temporary overrides On or Off ( flashing)

• Holiday mode : overrides On or Off between two dates*

• Simulation of presence *

• Display bar graph of daily profile

• Keyboard locking possible

• Programmable with power off

• Back lit display*

* Evolution models E or V only

Connection Diagram

ok menu

3 4

L / +

N / -

1 3 5 7

2 4 6 8

(EG 103E)
