General Catalogue • Modular Devices • Technical

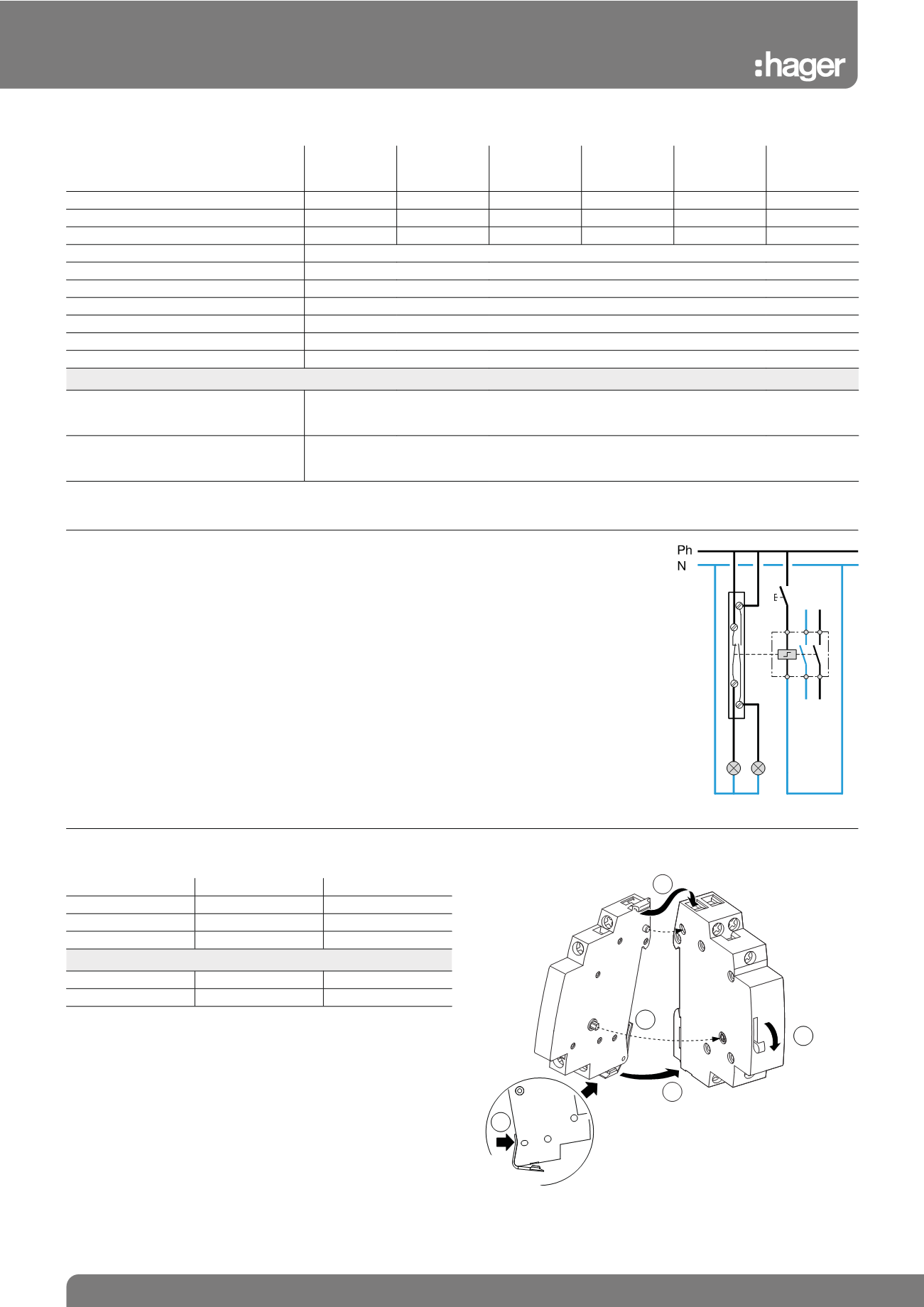

Latching Relays
Technical Characteristics
EPN510
EPN515
EPN520
EPN513
EPN518
EPN524
EPN519
EPN525
EPN540
EPN528
EPN541
EPN529
Voltage
230V
24V
12V
230V
24V
12V
Start Consumption
24VA
24VA
24VA
48VA
47VA
TBC
Contact Rating AC1
-
-
16A 250V~1
-
-
-
Electrical Endurace AC1 - 16A
150,000 Operations
Mechanical Endurance
500,000 Operations
Current in Open Position
8 mA
Max Duration of Voltage Supply to Coil
1h
Min Duration of Current Supply to Coil
0.1s
Working Temperature
-5 to +40ºC
Storage Temperature
-40 to +80ºC
Connections
Coil:
Flexible
Rigid
0.5 to 4mm
2
1 to 6mm
2
Power:
Flexible
Rigid
1 to 6mm
2
1.5 to 10mm
2
1 400~ for EPN540 and EPN541.
Auxiliary Contacts (EPN051)
The range of latching relays have been designed for use with an
auxiliary contact. The devices simply clip on the side of the relay.
21
23
22
24
A1
A2
1
2
3
4
4
2
3
3
1
Technical Characteristics
EPN
EPN051
Voltage
1 100 to 230V
-
Contact Rating
-
2A / 250V
Imin / 230V
-
15mA
Connection
Flexible
6mm
2
Rigid
10mm
2
1 Voltage dependant on associated relay
