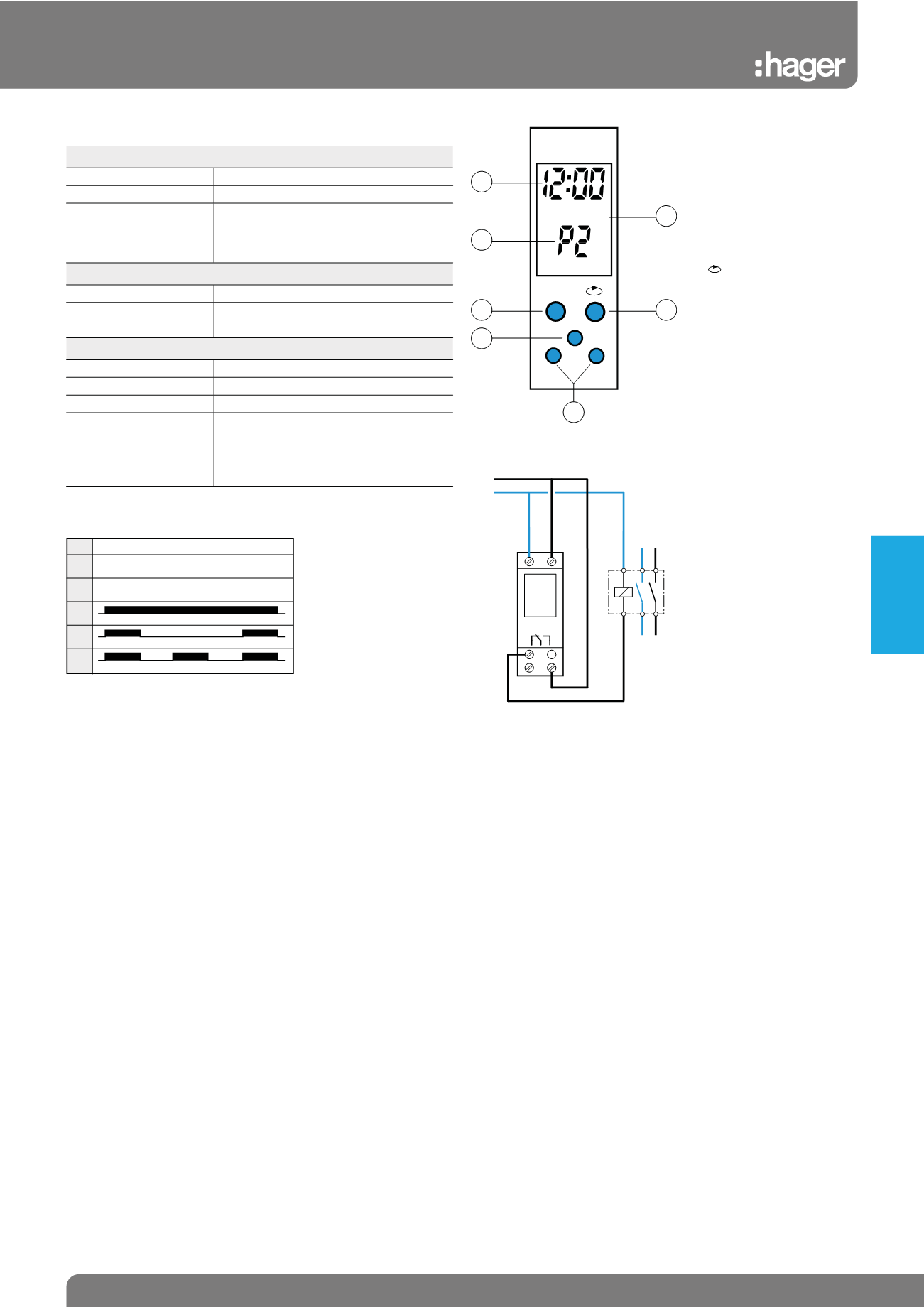

Digital Time Switch
(EG010)
Technical Characteristics
Electrical Characteristics
Voltage Supply
230V ±10% 50/60Hz
Consumption
1VA
Output
1 Changeover contact
16A - 250V AC 1
3A - 250V cosw = 0.6
1000W Incandescent lighting
Functional Characteristics
Number of programs
5 Adjustable Pre-recorded Programs
Accuracy
±6min per year
Supply Failure Reserve Total of 3 years
Environment
Working Temperature -10ºC to +50ºC
Storage Temperature -10ºC to +60ºC
Cable Capacity
1 to 4mm
2
Main Characteristics
Easy to program: 5 programs are
pre-recorded. The user just has to select
the program which corresponds to its
use and modify time switches if
necessary.
The 5 pre-registered programs are as follows
Product Presentation
Display
1. Time
2. Circuit Status
3. Program Selection
Buttons
4. P to select the program to
apply
5. Reset
6. to scroll program steps
7. + and - : to input time
Electrical Connection
P0
P1
P2
P3
P4
6.00 8.00 11.00 13.00 17.00 23.00
6.00 8.00
17.00 23.00
6.00
23.00
ON
OFF
P
Prog
OFF
P
- +
6
7
4
3
1
5
2
L
N
6
5
2
1
4 3
EG 010
1 2 3
