General Catalogue • Modular Devices • Technical
Time Lag Switches
Time Lag Switches
A common area where time delay devices are used is stairways and
corridors in multi occupancy buildings where they provide a level
of energy efficiency. The EMN001 device provides basic time lag
control.
Technical Specification
EMN001
EMN002
Electrical Characteristics
Supply voltage
230V +10 -15%
50/60Hz
230V +10
-15%50/60Hz
Consumption
1VA
0.5W Permanent
8W Max.
Size
1
-
Breaking Capacity
AC1
16A 230V AC 4A 230V~
Incandescent
2300W
1000W
Halogen 230V
2300W
1000W
Ferro Magnetic Transformer
1600W
-
Parallel Compensated
Capacitor 112μF -
Fluorescent Lamps
1000W
Series Compensated
3600W
-
Electronic Transformer
2300W
-
Compact Fluorescent Lamps
with Electronic Ballast
with Conventional Ballast
60 x 7W or
40 x 11W or
32 x 15W or
20 x 23W
23000W
-
-
Functional Characteristics
Time Delay
30s to 10min 24s
Retrigger
Yes
-
Max. Current in Rest Position 100mA
-
Automatic 3/4 Recognition
Yes
-
Local Command
Automatic /
Override On
-
Environment
Working Temperature
-10 to +55ºC -15 to +55ºC
Storage Temperature
-20 to +60ºC -25 to +70ºC
Connection
Flexible
1 to 6mm
2
1 to 6mm
2
Rigid
1.5 to 10mm
2
1.5 to 10mm
2
Connection EM001/EM002 -
2 wires 1.5

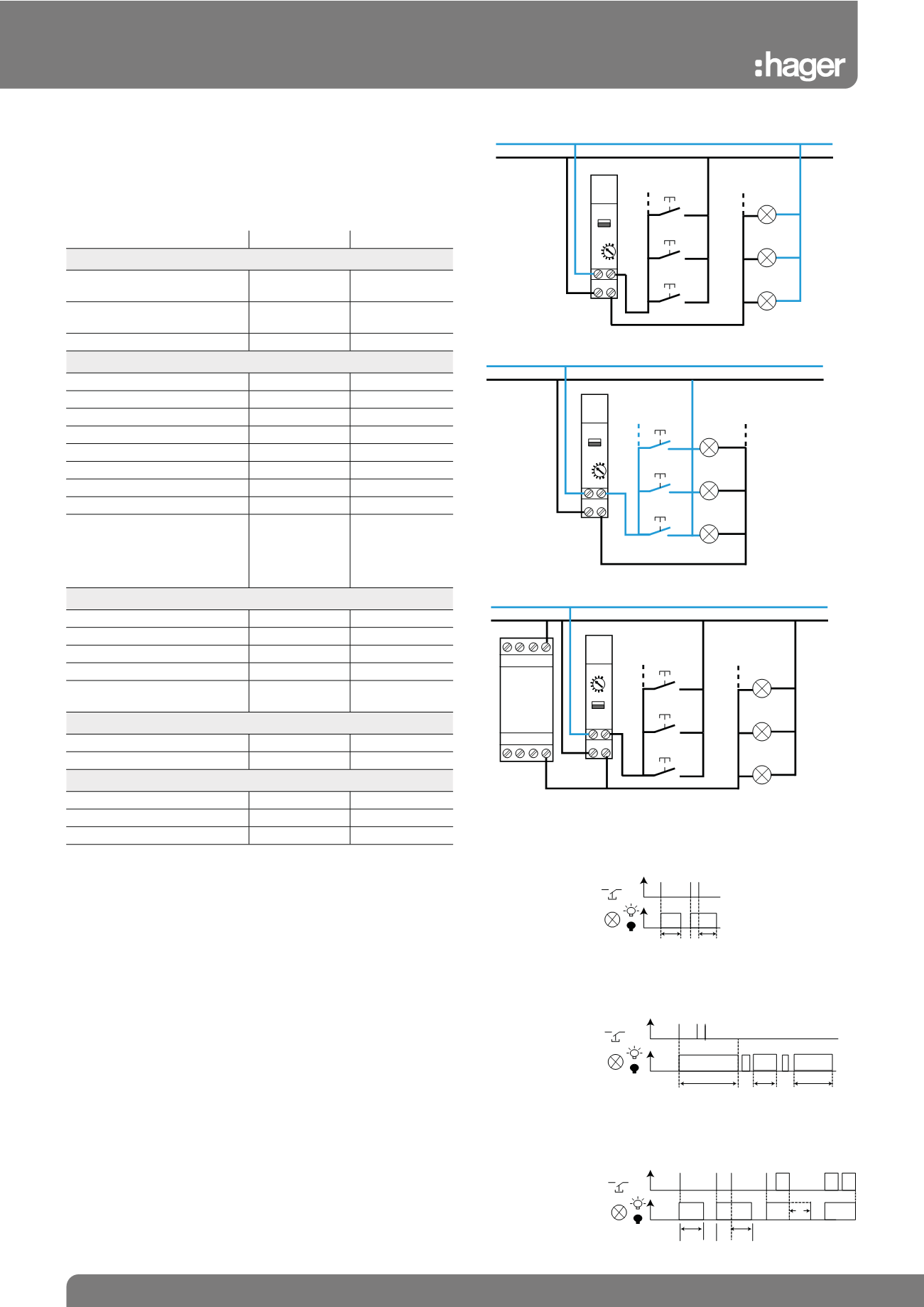

Wiring Diagrams
4-Wire
3-Wire
Combination EM002 with EMN001
L 4
3N
L 4
3N
L 4
3N
7
8
EM 002
T
T
T
10s
1h
>3
> 3 >3
T
T
30s
230V
0V
230V
0V
230V
0V
A: Basic Mode
Press push button to switch ON the light. After a set time (Adjustable
“T”, the light will switch OFF automatically.
B: Prewarning Mode
A signal (blink) will appear before the end of the lighting period.
C: Double delay mode
Press push button to switch light ON. After a set time (Adjustable “T”,
the light will switch OFF automatically. If you press the buton for more
than 3 seconds, a time lag of one hour begin.
A
B
C
