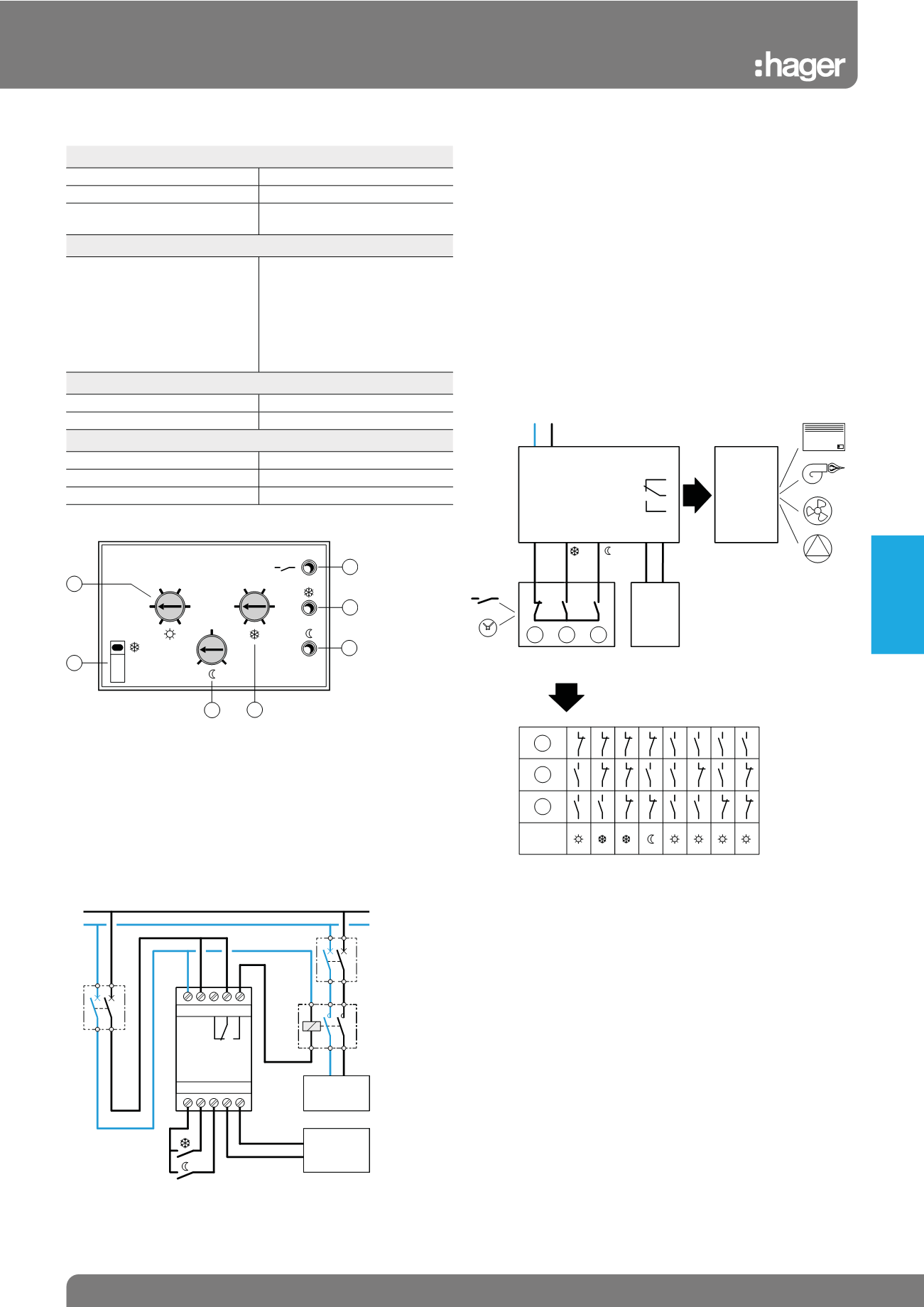

EK187 Multi-Setting Thermostat
Technical Specifications
Electrical Characteristics
Voltage Supply
230V +10 -15% 50/60Hz
Consumption
1.5VA
Output
1 Changeover Contact
2A 230V AC1
Functional Characteristics
3 Temperature Ranges
Controllable by External Setting
Comfort: Adjustable from +5 to
+30ºC
Reduced: Decrease 2 to 8ºC
in Comparison with Comfort
Setting
Frost setting: Adjustable from +5
to +30ºC
Accuracy ±0.2ºC
Environment
Working Temperature
-10 to +50ºC
Storage Temperature
-20 to +70ºC
Connection Capacity
Flexible
1 to 6mm
2
Rigid
1.5 to 10mm
2
Probe
Maximum Distance 50m
Product Presentation
1. Reference setting: comfort TO
2. Decrease in comparison with reference setting: reduced to TO
3. Frost setting
4. Frost setting override
5. Display of state of output i.e. contact position
6. LED indicating the frost override is on.
7. LED indicating the regulation in comparison with a reduced
setting
Electrical Connection
Main Characteristics
•
Temperature settings controllable by external setting
when
associating a digital time switch, it is possible to regulate the
heating in relation with a program established by the user.
•
2 wires link
between the probe and the unit, enables the easy
replacement of the ambient thermostats of an existing installation.
•
Safety feature for “probe failure”
in case of probe disconnection,
the output will be switched 1 minute in every 4; so that in case of
disconnection during winter, it will protect the installation from
frost.
•
Display
of state of the output and of the setting.
Working Principle
EK187 adjusts the temperature under the “all or nothing” principle it
is associated to an ambient probe and thus works in closed loop the
temperature settings are selected by external settings (contacts free
of potential).
EK187 is thus generally associated to a time switch or a digital
time switch in the case of absence of external signal, EK187
regulates the heating in comparison with the reference setting, a
switch enables the override of the dispensation setting.
7
6
5
4
1
2
3
5
10
15 20
25
30
5
10
15 20
25
30
-2
-5
-8
Auto
EK 187
1
9753
2
10864
EK 187
EK 081
EK 082
EK 083
Ph
N
1
2
3
1 3
5
7
9
2
4
6
8 10
EK 187
1
2
3
EK 081
EK 082
EK 083
