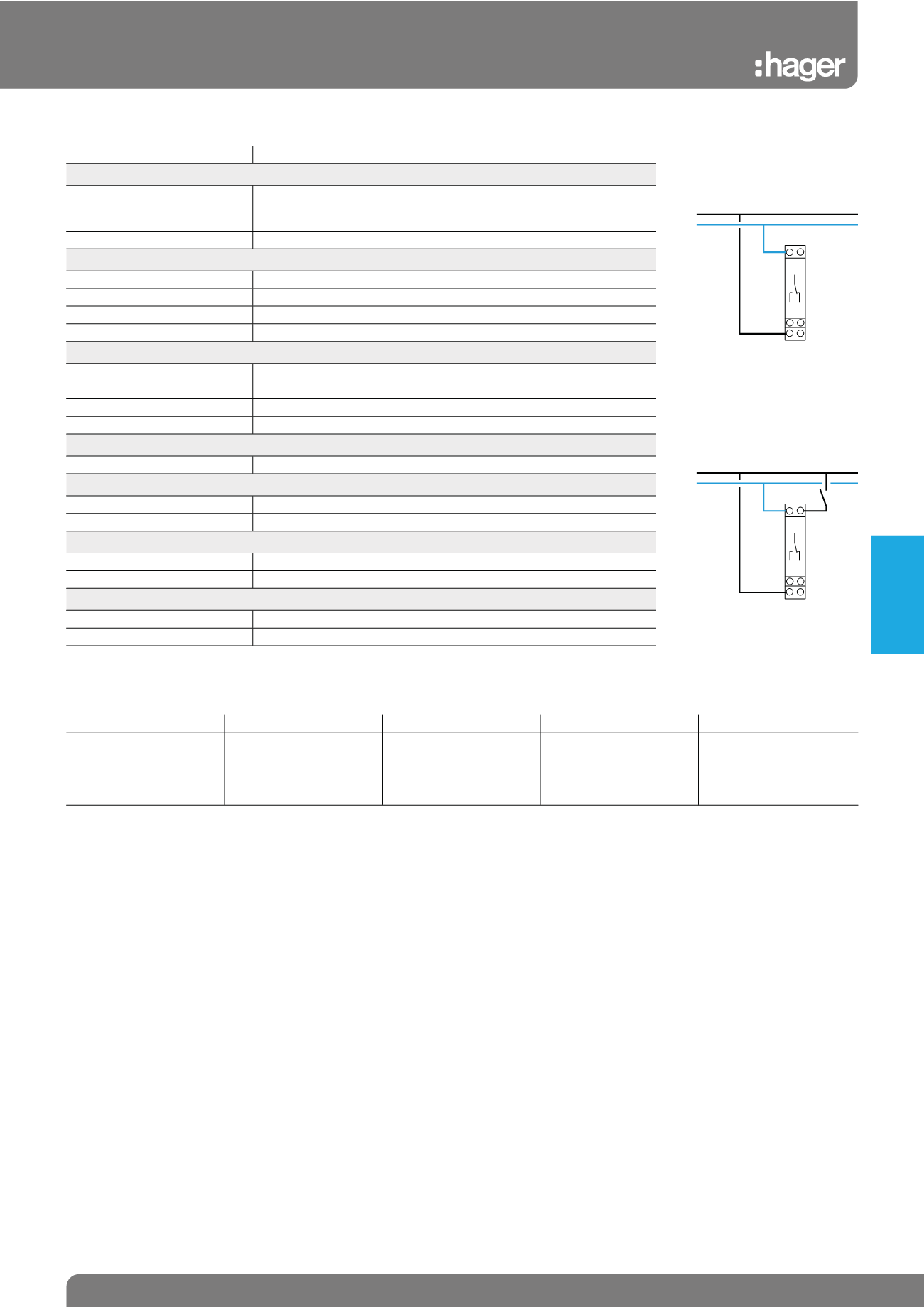

Delay Timers cont.
Technical Specifications
EZN001, EZN002, EZN003, EZN004, EZN005, EZN006t
Electrical Characteristics
Supply Voltage
24-28 Vdc
12-48 Vdc (+10%) Terminals A1 & A2
12-230 Vac (+10%) Terminals A3 & A2
Output
1 Volt Free C/O Contact
Life Expectancy
Max Load AC 1
8A / 230V~ 50,000 Cycles
Incandescent
450W~ 500,000 Cycles
Fluorescent Non Comp.
600W~ 50,000 Cycles
Inductive Load 0.6pf
5A / 230V~ 100,000 Cyles
Min Power
AC
100mA at 230V
DC
100mA at 12V
Galvanic Isolation
2kV
Standard / Norm
BS EN 60669-2-1
Functional Characteristics
Timer Range
0.1s - 10 hours
Min. Command Period
AC
50ms
DC
30ms
Operating Temperature
Working
-20ºC to +50ºC
Storage
-40ºC to +50ºC
Connection Capacity
Flexible
1 to 6mm
2
Rigid
1.5 to 10mm
2
EZN002, EZN004, EZN006
(functions A,B,C)
indicator light (for versions with
NO contact).
ON
OFF
Ph / +
N / -
18
18
A1
16
15
A2
16
15
Ph / +
N / -
18
18
A1
16
15
A2
B1
16
15
Functional characteristics
EZN001, EZN003, EZN005,
EZ006 (functions D,E,F)
CD : Command.
O : Output.
T : Time delay.
Time Delay Breakers
1 sec to 1 hour
0.1 min to 10 hour
0.1 sec to 10 mins
0.2 mins to 20 hours
Ranges
1 sec to 10 secs
0.1 min to 1 min
1 min to 10 min
0.1 hour to 1 hour
0.1 min to 1 min
1 min to 10 min
0.1 hour to 1 hour
1 hour to 10 hour
0.1 secs to 1 sec
1 second to 10 secs
0.1 min to 1 min
1 min to 10 mins
0.2 min to 2 min
2 min to 20 min
0.2 hour to 2 hour
2 hour to 20 hour
