General Catalogue • Modular Devices • Technical
Digital Time Switch
(EG071)
Technical Characteristics
Electrical Characteristics
Voltage Supply
230V ±10% 50/60Hz
Consumption
1VA
Output
1 Changeover contact
16A - 250V AC 1
3A - 250V cosw = 0.6
1000W Incandescent lighting
Functional Characteristics
Number of programs
20 Program Steps (each program step
can be applied to one of several days)
Accuracy
±6min per year
Supply Failure Reserve Total of 3 years
Environment
Working Temperature -10ºC to +50ºC
Storage Temperature -10ºC to +60ºC
Cable Capacity
1 to 4mm
2

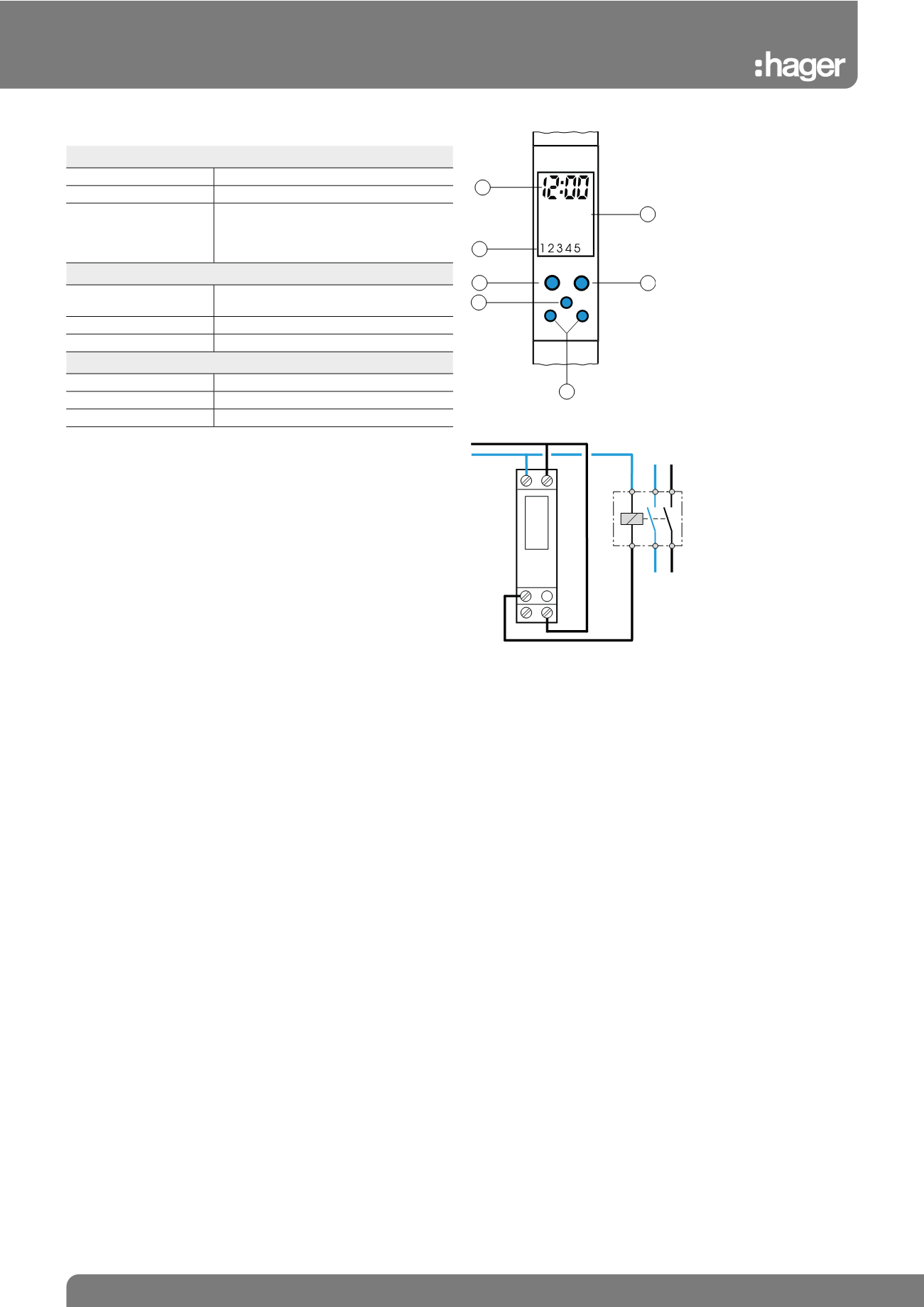

Product Presentation
Display
1. Time
2. Circuit Status
3. Days of the week
Buttons
4. ON / OFF : to select the
circuit status
5. Reset
6. Prog: to program the
device and scroll program
steps
7. To input time and day
Electrical Connection
OFF
on/off Prog
- +
1
4
5
2
3
6
7
6
5
EG 071
2
1
4 3
EG 010
