517

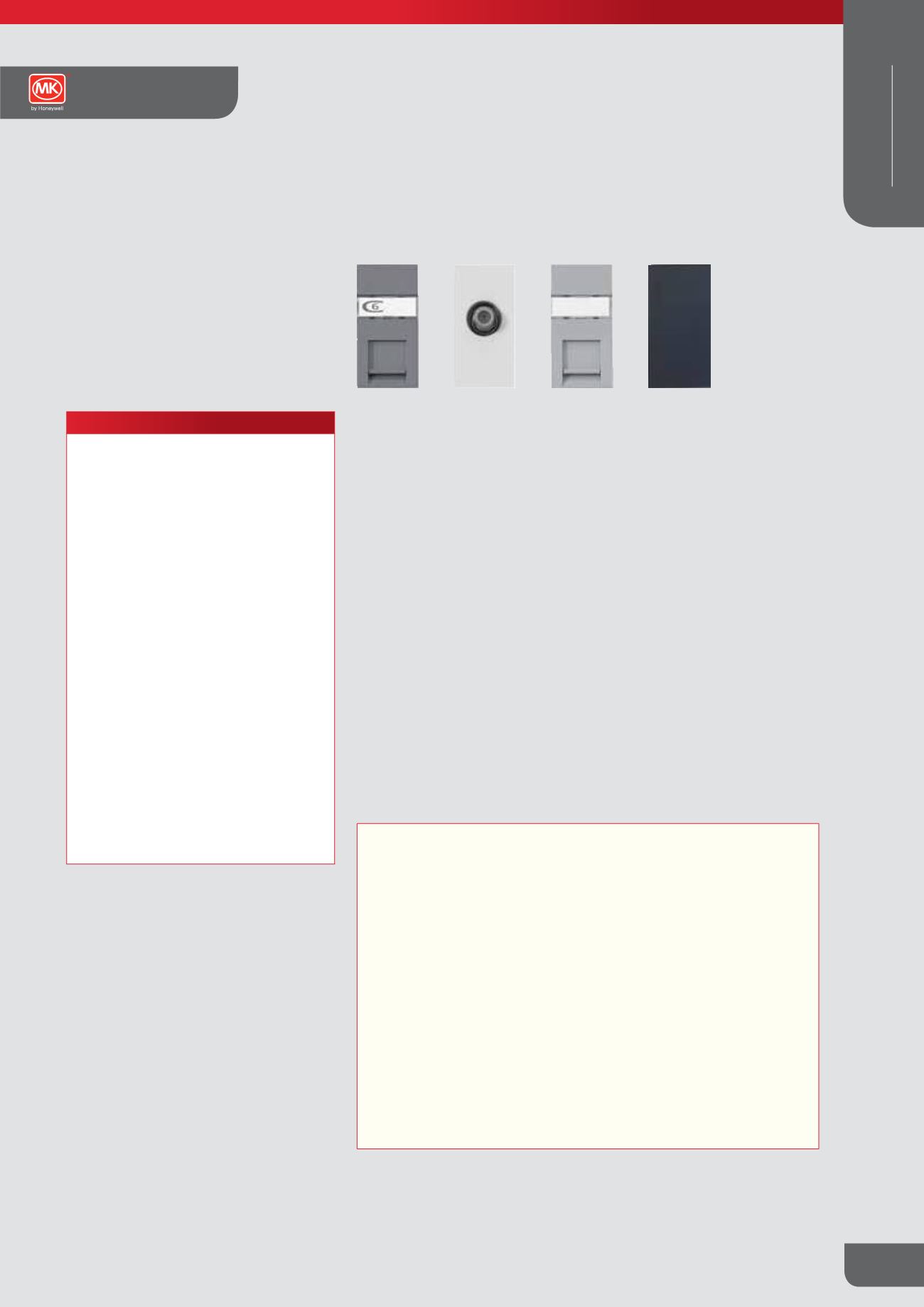

Telephone, RJ11/12, BNC Data and Blank Modules
Description
A range of telephone, data and blank modules to fit Euro front plates. BNC Euro
modules with a 50Ohm crimp connector suitable for use with RG58, URM43,
URM76 and Beldon 9907 type co-axial cables are also available.
Installation (Telephone socket modules)
Product performance, systems compatibility
Master Sockets: For use as the first socket outlet on a direct exchange. They
contain the required surge protector (for line protection against electrical surges)
and ringing capacitor.
Secondary Sockets: for use as extension sockets when connected on the same line
as a Master Socket.
Installation tools required IDC Connectors (telephone & RJ45 outlets)
MK insertion tool List No. 400NAT.
Wire pull-out force: 10.5 Newtons when installed correctly.
Wiring regulation restrictions
Domestic Installations: The total REN (Ring Equivalent Number) value of all
telephone equipment connected on a line must not exceed 4.
Standards and approvals
Telephone sockets K5820 and K5821
comply with BS 6312:2.2
Data sockets K5801 comply with
BS 5733:2010 (where applicable).
K5887 complies with FCC68 and EN 41003.
TECHNICAL SPECIFICATION
ELECTRICAL
CABLE TYPES
Telephone
– CW1311, CW1293, CW1308, CW1316
NO. OF CABLES PER TERMINATION
Telephone
– 2
RJ11/12
– 1
BNC
50 Ohms impedance cable
RG58, RG141, URM43 Belden 9907
FREQUENCY RANGE
BNC Connector
– 0 to 4GHz
IMPEDANCE
BNC Connector
– 50. nominal
TERMINATION TYPE
Telephone module
– IDC
BNC module
– Crimped connection
PHYSICAL
AMBIENT OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
– K5820, K5821, K5801 and K5787.
IP4X
– K180, K188, K186 and K170
MAX. INSTALLATION ALTITUDE
2000 metres
Features
l
Meet all relevant BS and cabling
standards
l
Interchangeable modules clip into
frontplates
l
Front fixing facilitates easy
exchange of modules
l
Part of a complete range of
products for telephone and data
processing requirements
Telephone sockets
l
Quick, simple and reliable IDC
connectors
l
Can be specified for all
applications
Data sockets
l
Latest specification for high
performance systems
l
Made to stringent quality
assurance procedures
l
Wide range of data connectors
available
