521
PIR Detector
Description
The Elements PIR Detector will deliver energy savings and lighting usage
management in a wide range of applications. Offering effective and efficient
detection for control of lighting, this stand alone solution is easy to install and
program, with the additional benefit of variable time delay from 30 minutes to
permanently on.

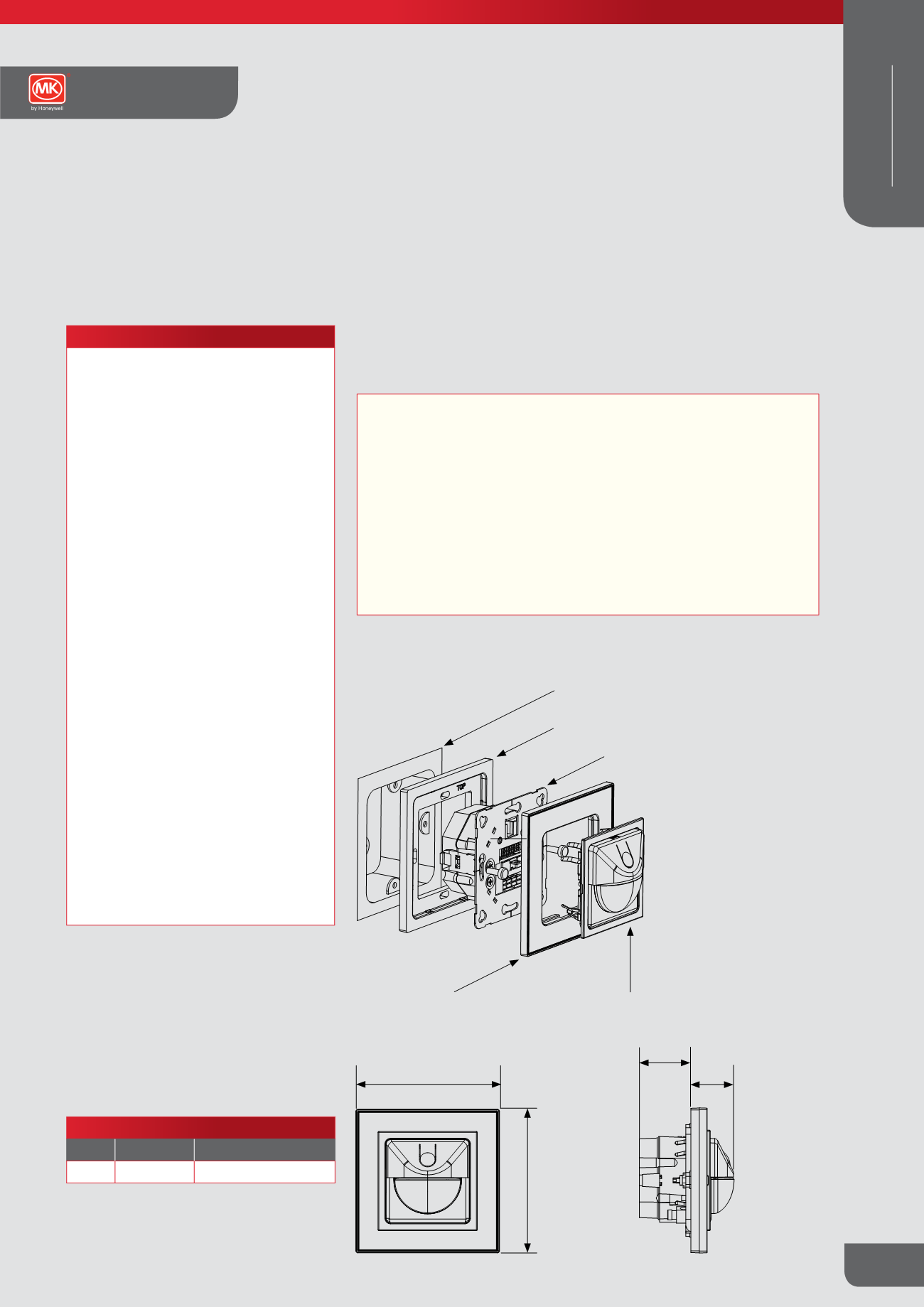

Frontplate and Module Installation
WALL BOX
PATTRESS
MODULE WITH METAL PLATE
FRONTPLATE
MOTION SENSOR MODULE
Dimensions (mm)
86
86
25.60
30.50
Standards and approvals
IEC60669-2-1
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
220-240V
CURRENT RATING
10A
LOAD TYPE
Incandescent Light (resistive Load): 2300W
HV HALOGEN LAMPS
1500 W
INDUCTIVE LOAD
600VA
ELECTRONICS BALLAST
3 x 58W (max. inrush current 80A/20ms)
CONTACT GAP
Micro gap
TERMINAL CAPACITY (SCREWLESS TERMINAL)
Stranded Cables
1 x 2.5mm²
Solid Cables
1 x 2.5mm²
1 x 4mm²
EARTH TERMINAL (SCREW TERMINAL)
4 x 2.5mm²
3 x 4.0mm²
2 x 6.0mm²
PHYSICAL
AMBIENT OPERATING TEMPERATURE
0°C to +35°C
MAX INSTALLATION ALTITUDE
2000 metres
IP RATING
IP2X
Installation
For optimal detection and control sufficient
distance (1M minimum) should be maintained
between the PIR Detector and lighting fixtures
in order to prevent undesirable motion detector
switching. The optimal installation height is
0.8M – 1.2M. Installation in areas where
excessive air movement occurs can cause false
activations.
BOX TYPES
Flush
Flush (for extra wiring space)
1 GANG
866ZIC (35mm)
877ZIC (47mm)
Features
l
16 standard finishes
l
Many more customized
combinations of standard colours,
materials and finishes available
l
Bespoke colour materials and
finishes available via the Design
Service
l
Detection range of 8M
l
Delivers energy saving by
switching lights off when
occupancy is not detected
l
Offers safety and comfort
by switching lights on when
occupancy is detected
l
Easy to install and program
l
Time delay from 30 minutes to
permanently on
