Technical Hotline
+44 (0)1268 563720
519

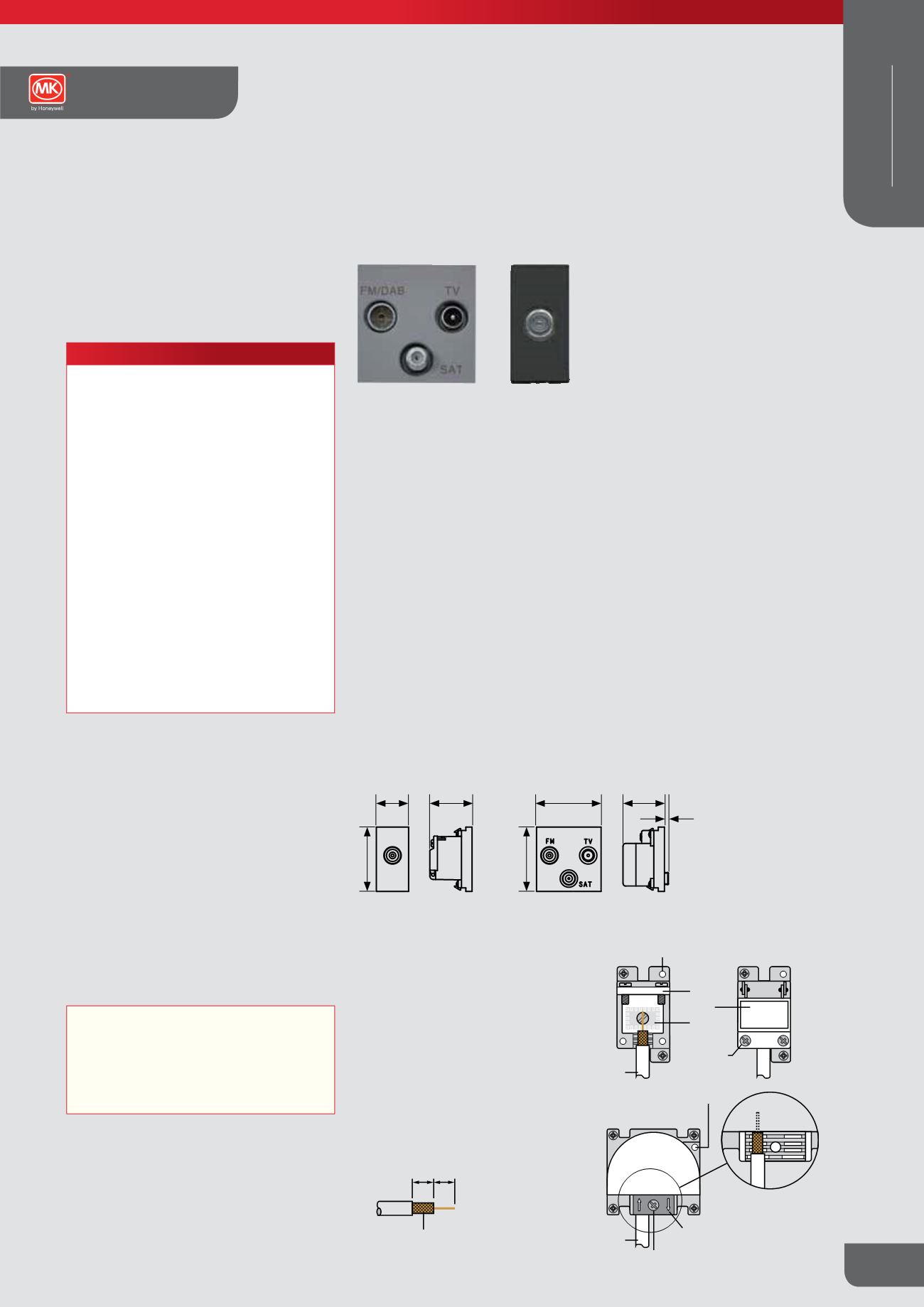

Description
There is one range of diplexer and triplexer products, which is suitable for digital
radio (DAB).
Diplexer modules are for connecting to a single co-axial aerial down lead carrying
combined TV and FM signals. The filtering in the diplexer splits out the appropriate
signal and feeds it to the relevant output connection. A DC control path is provided
in the TV signal path through the diplexer.
Triplexer modules are for connecting to a single co-axial aerial down lead carrying
combined TV, FM and SAT signals. The filtering in the triplexer splits out the
appropriate signal and feeds it to the relevant output connection. A DC control path
is provided in the SAT signal path through the triplexer.
The quad outlet contains a triplexer together with a separate satellite output, for use
with Sky+, or more complex installations.
Telephone secondary outlets are provided on some products for connection of
telephone or for interactive TV applications.
Digital TV and Radio
Installation
l
When installing the TV Co-axial
cable ensure that all cable bends are
smooth so that the inner insulation is
not crushed or squashed. Otherwise
the TV signal quality may be affected.
l
Not suitable for loop-in loop-out
installations.
l
Use CT100 cable (or equivalent.)
Dimensions (mm)
6.5
Screening braid to remain in
place over the inner insulation
6.5
TV Co-axial cable stripping details
Earth terminal
Co-axial
cable
Foil EMC
screening
gasket
Clamping
plate fixing
screws
Cable
clamping
plate
Earth
terminal
Clamping
fixing screws
View with cable
clamp removed
Cable clamp
Co-axial
cable
Note: Minimum box depth: 47mm
Euro 2 module Triplexer and Quadplexer
Euro 1 module
25
50
32.5
50
50
32.5
5.5
Standards and approvals
All TV outlets comply with BS 5733 and
BS EN 50083 where applicable.
TECHNICAL SPECIFICATION
SINGLE OUTLETS
TV/FM IEC MALE OR FEMALE
DC-950MHz
SATF-TYPE
DC-1.75GHz
TV/FM/DAB/SAT PRODUCTS FOR DIGITAL RADIO
TV
Diplexer:
5-65MHz
470-862MHz
Triplexer:
5-65MHz
470-862MHz
FM/DAB
Diplexer:
87.5-230MHz
Triplexer:
87.5-230MHz
SAT OR SAT1
Diplexer:
n/a
Triplexer:
950-2300MHz
SAT2
Diplexer:
n/a
Triplexer:
5-2300MHz
Features
l
Non Isolated
l
Fully screened
l
Earth terminal provided on TV modules
