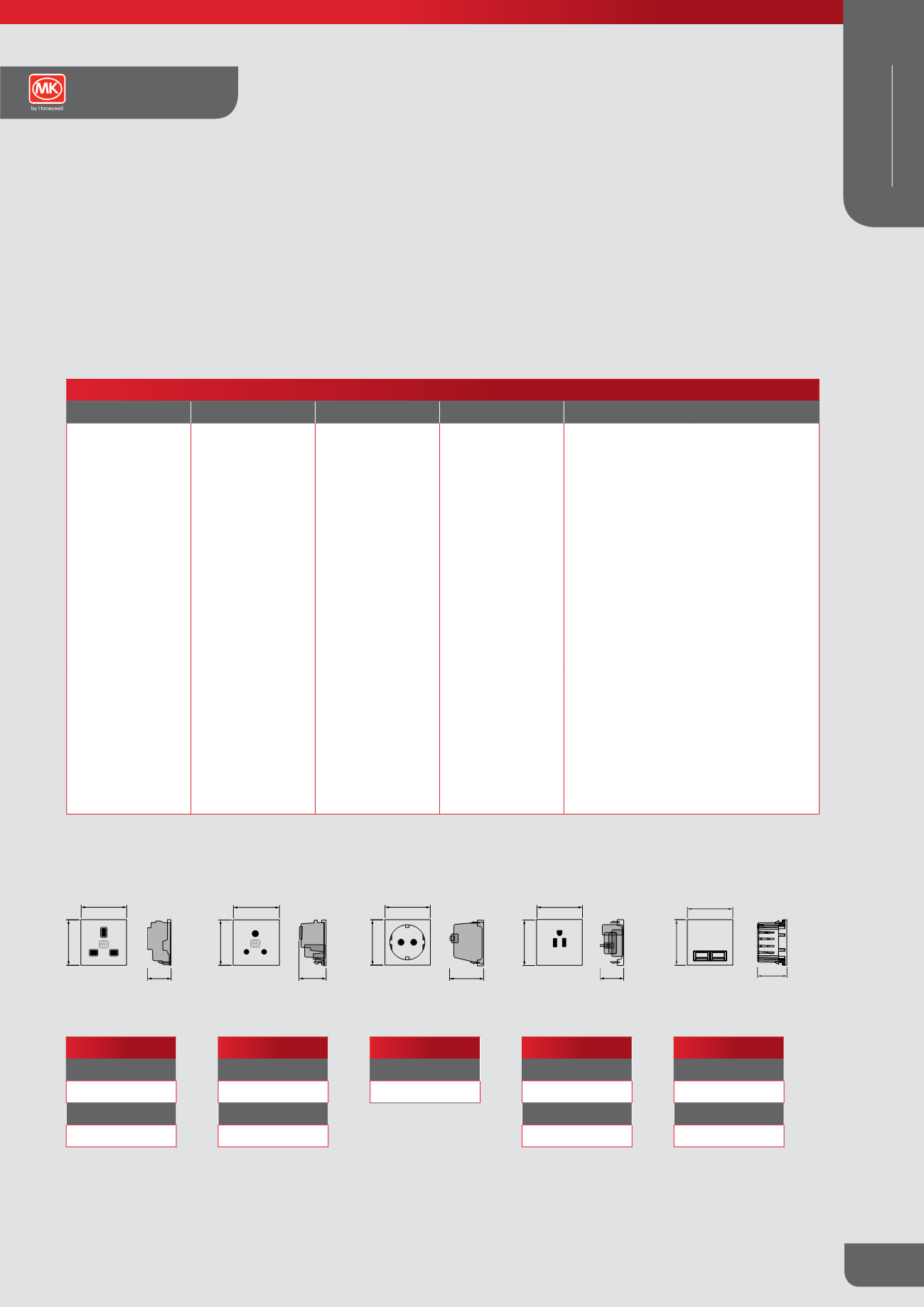

MK Electric Catalogue No. 49

515 / 759

Technical Hotline
+44 (0)1268 563720
515
Power Modules
Dimensions (mm)
16A German 15A American 13A UK
50
50
25
50
50
40
50
50
25
Description
A range of euro modules designed to provide a
variety of power options.
Standards and approvals
K5830
5A UK
50
50
29
K5833 K5831 K5832
2A USB Charging Module
K5837
50
50
32
50
50
252
50
50
29 2
50
50
404
50
50
225 32
TECHNICAL SPECIFICATION
13A UK 5A UK 16A German 15A American USB Charging Module
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm²
3 x 4mm²
2 x 6mm² (stranded)
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
5A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm²
2 x 4mm²
2 x 6mm² (stranded)
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
16A
TERMINAL CAPACITY
Live, neutral & earth
4 x 1.5mm²
2 x 2.5mm²
1 x 4mm²
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
VOLTAGE RATING
127V a.c.
CURRENT RATING
15A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm²
2 x 4mm²
1 x 6mm² (stranded)
PHYSICAL
AMBIENT OPERATING
TEMPERATURE
-5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
ELECTRICAL
INPUT
VOLTAGE RATING
220-240V a.c.
FREQUENCY
50/60Hz
RATED CURRENT
0.12A
TERMINAL CAPACITY
Live & neutral
3 x 2.5mm²
2 x 4mm²
OUTPUT
VOLTAGE RATING
2 x 5V d.c. Max current
CHARGING SOCKETS
USB 2.0 type A
2A can be delivered in
total to either socket
outlet, or be divided
between the two.
This module is not
limited to 1A from
each socket outlet.
PHYSICAL
AMBIENT OPERATING TEMPERATURE
0°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION
ALTITUDE
2000 metres
K5830: BS 1363 Part 2:1995
K5831: IEC 60884-1:2006
K5832: SASO 2204: 2003
K5833: BS 546: 1950
K5834: French National Standard
NF C 61-314
BOX TYPES
Minimum
35mm deep
Extra wiring space
46mm deep
BOX TYPES
Minimum
35mm deep
Extra wiring space
46mm deep
BOX TYPES
Minimum
35mm deep
Extra wiring space
46mm deep
BOX TYPES
Minimum
35mm deep
Extra wiring space
46mm deep
BOX TYPES
Minimum
46mm deep
Elements Collection
Technical
WIRING DEVICES
DECORATIVE
