Do Not Disturb / Make Up Room Switches
Description
The Elements Do Not Disturb / Make Up Room Switches have been developed
along with a number of other products for hotels and hospitality venues, offering
guests comfort and control.

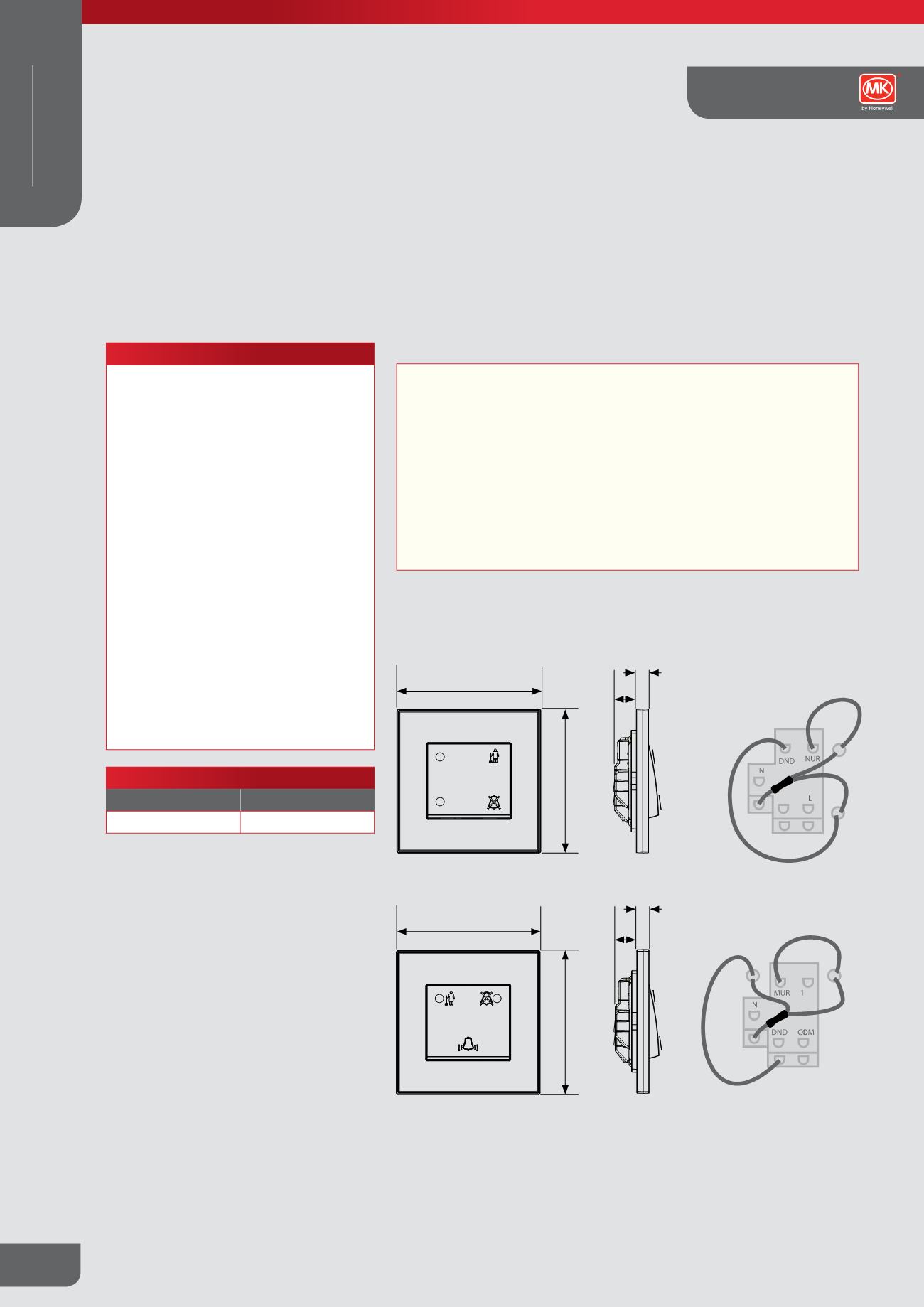

Dimensions (mm)
Room Switch
Room Switch – Inside
“Occupancy Selector”
Corridor Switch – Outside
“Bell Push/Indicator”
Connection of LED
Indicators
Corridor Switch
7.35
12.9
86
86
7.35
12.9
86
86
Standards and approvals
All Elements switches comply with
BS EN 60669-1:1999.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c. 50Hz
CURRENT RATING
10A
TERMINAL CAPACITY
All products
4 x 1mm²
4 x 1.5mm²
3 x 2.5mm²
2 x 4mm²
1 x 6mm²
CONTACT GAP
K33900DND
– Mini gap
K33885DND
– Normal gap
PHYSICAL
OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP4X
MAX. INSTALLATION ALTITUDE
2000 metres
BOX TYPES
Flush
All switches
861ZIC (25mm deep)
Features
l
16 standard finishes
l
Many more customised
combinations of standard colours,
materials and finishes available
l
Bespoke colours, materials and
finishes available via the Design
Service
l
Switch contacts with silver
contacts on both surfaces for
good continuity
l
Positive switch action
l
Only one size of screwdriver
required for installation
l
Backed out and captive terminal
screws
Green
LED
Green
LED
Red
LED
Red
LED
