507
Connection Units

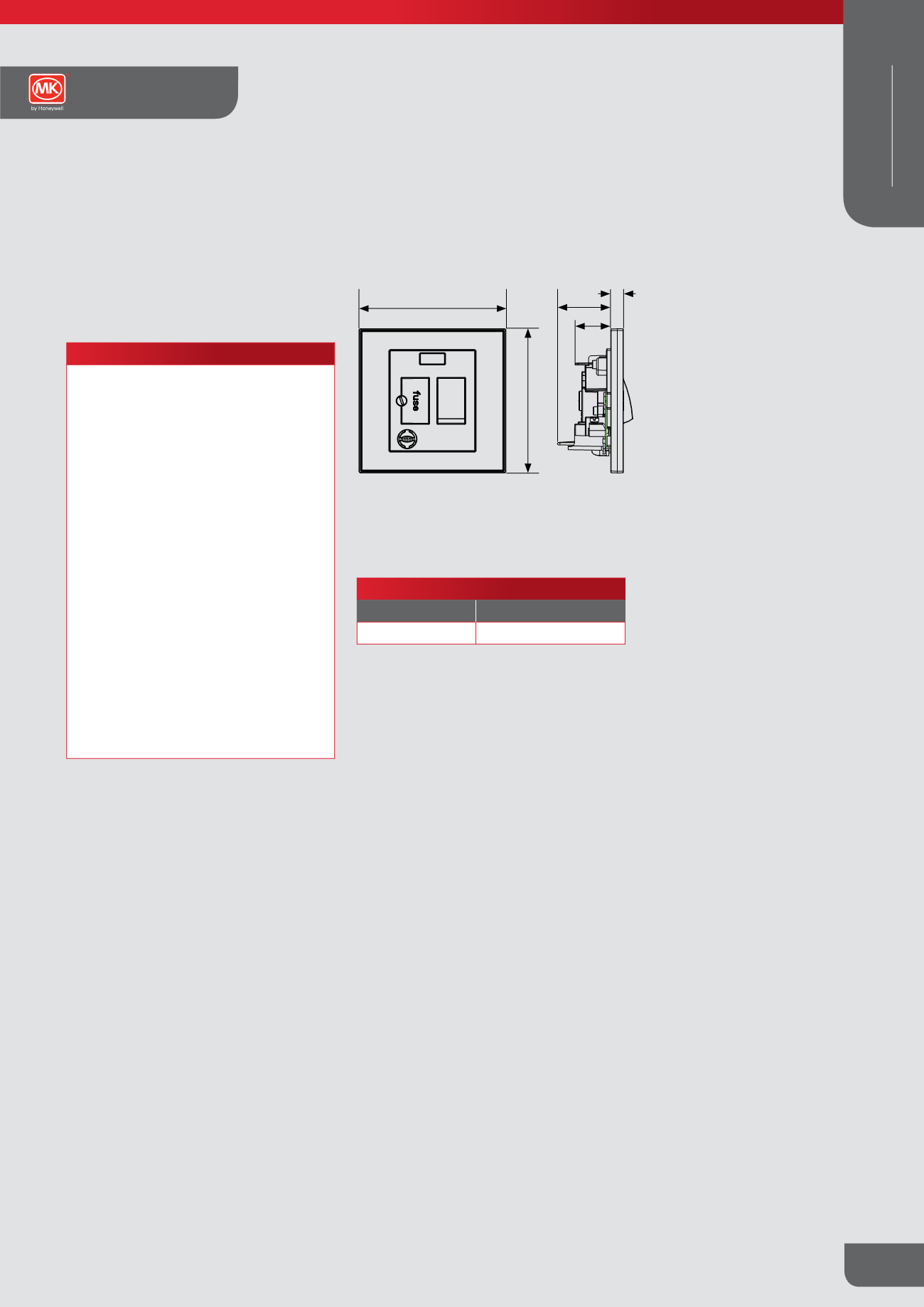

Dimensions (mm)
Installation
Elements connection units can be wall or bench mounted.
Do not use on a trailing lead.
BOX TYPES
Flush
Flush (for extra wiring space)
866ZIC (35mm deep)
877ZIC (46mm deep)
Changing Fuses
1.
Unscrew the fuse carrier screw to partially eject the carrier.
2.
Carefully lever (by screwdriver or finger) the carrier out further to remove the
fuse. Note: The carrier does not come fully out.
3.
Always replace with a BS 1362 type fuse (as used in 13A plugs) of the correct
rating.
86
86
31.2
7.35
20.7
Standards and approvals
All Elements Connection Units comply with
BS 1363 Part 4
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13 Amp
TERMINAL CAPACITY
3 x 2.5mm²
2 x 4mm²
1 x 6mm² (stranded)
Flex outlet/cord grip capacities
Min. 2 Core, 0.5mm²
Max. 3 Core, 1.5mm²
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
With flex outlet
IP2XD
Without flex outlet
IP4X
MAX. INSTALLATION ALTITUDE
2000 metres
