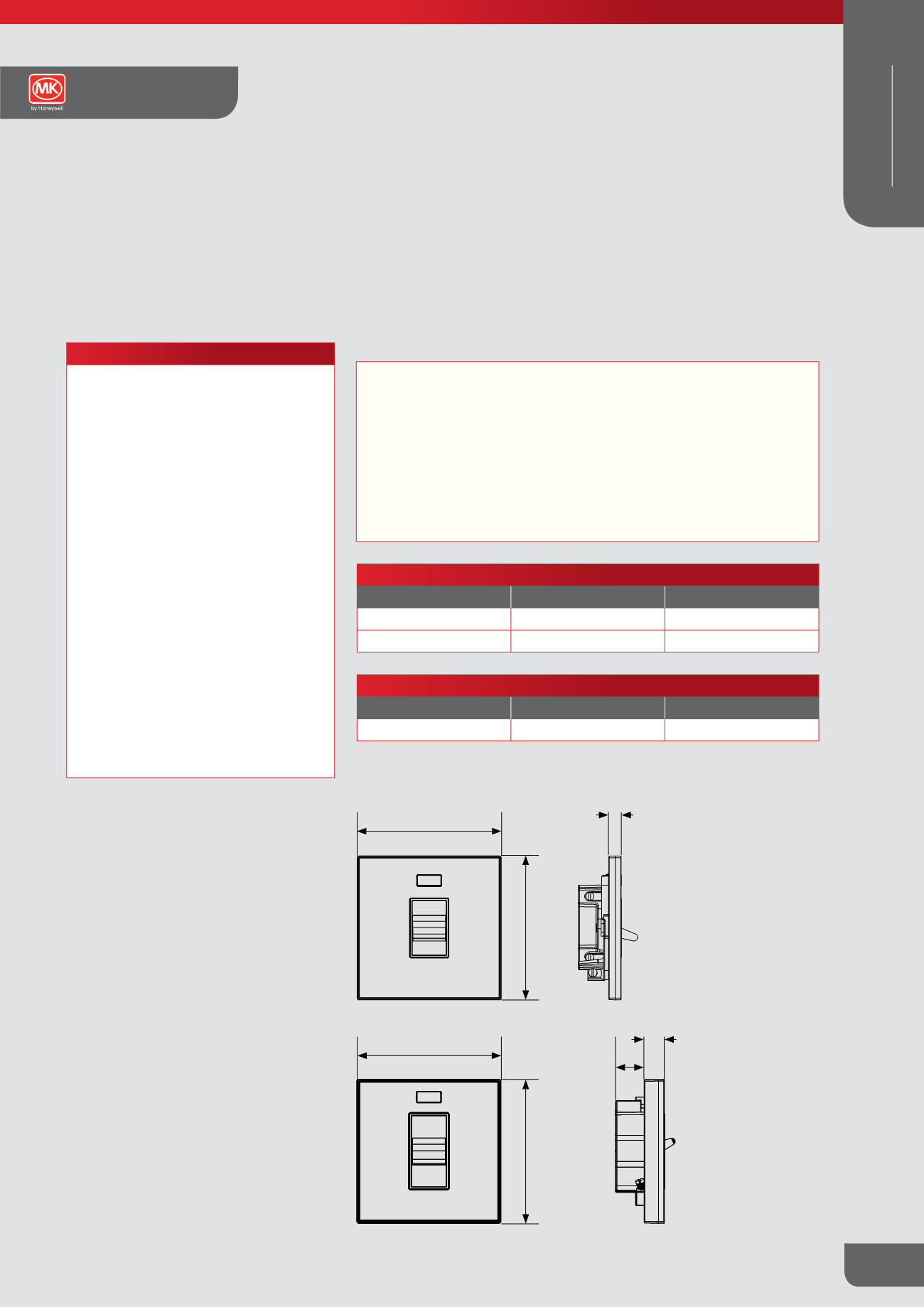

511
High Current Switches
Description
A range of switches harmonising with the Elements style, suitable for the switching
of all domestic, commercial and industrial appliances where higher current ratings
are required, i.e. cookers, heaters, commercial refrigeration units etc.
BOX TYPES
Switches
Max. Cable Size
Flush
32A
10mm
²
46mm
50A
16mm
²
46mm
BOX REFERENCES
Flush Box depth
32A
50A
46mm
877ZIC
877ZIC
Note: These switches are
not
recommended for
switching large banks of PCs.
Dimensions (mm)
50A
32A
86
86
12
17
86
86
7.35
Standards and approvals
High Current switches comply with
BS EN 60669-1
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT
32A Switch
50A Switch
SWITCH
3mm contact gap
Double pole operation
TERMINAL CAPACITY, 50A SWITCHES
4 x 4mm²
3 x 6mm²
1 x 10mm²
1 x 16mm²
TERMINAL CAPACITY, 32A SWITCHES
3 x 2.5mm²
2 x 4mm²
1 x 10mm²
1 x 6mm²
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
MAX. INSTALLATION ALTITUDE
2000 metres
Features
l
16 standard finishes
l
Many more customised
combinations of standard colours,
materials and finishes available
l
Bespoke colours, materials
and finishes available via the
Design Service
l
Positive double pole switching
l
Toggle action switches
l
Replaceable neon indicators
Elements Collection
