RJ45 Data Outlets
Standards and approvals
ISO/IEC 11801
EN 50173
TIA 568
EN 41003
Installation
l
Maximum cable length 90m.
l
Cable bend radii, 40mm during installation,
20mm after installation.
l
Maximum pull force 8.7kg.
l
Do not over tighten cable ties.
l
Do not unwind the twists in the wire pairs by
more than 13mm max.

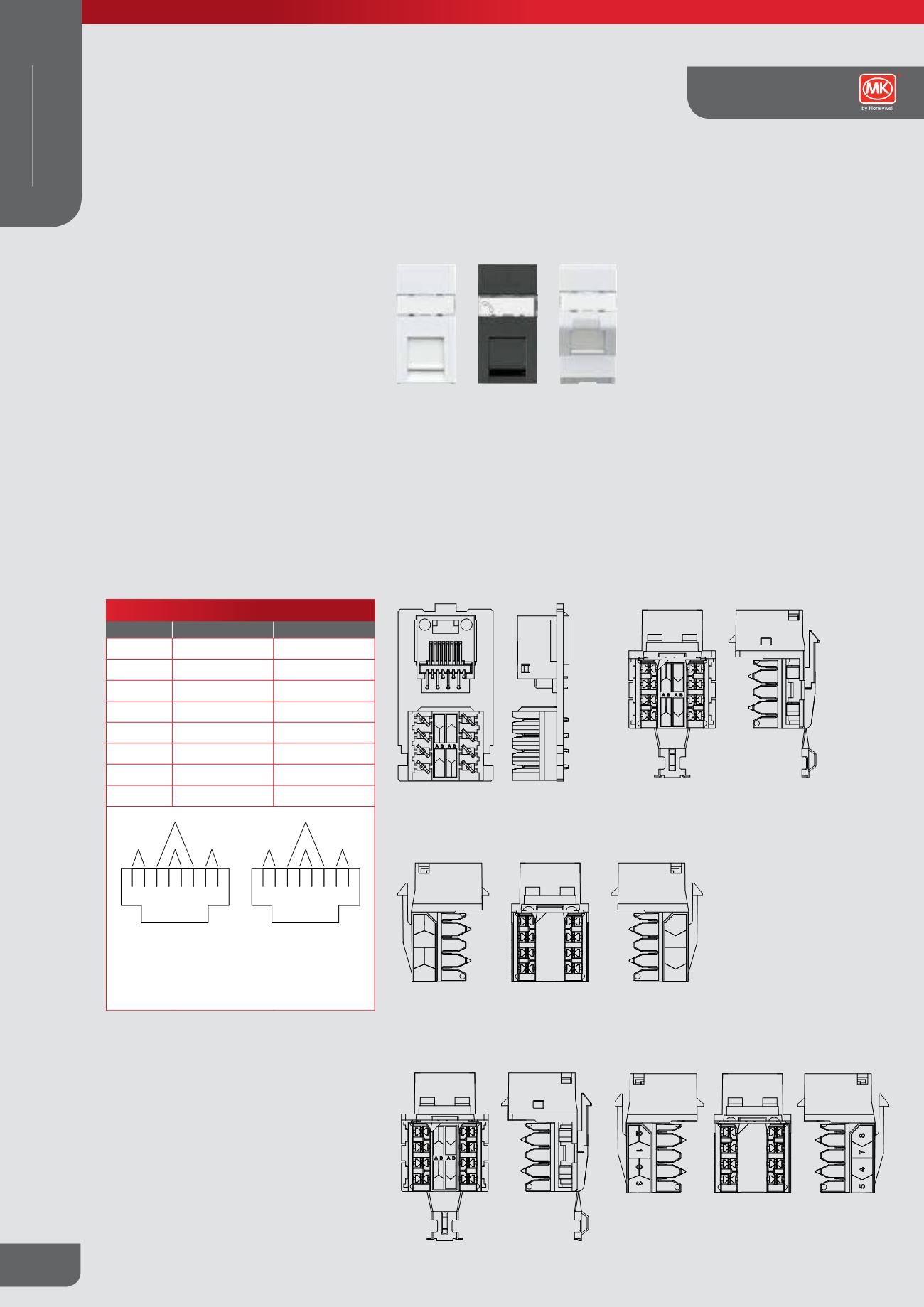

Installation details and wiring
diagram illustrations
TIA WIRING SCHEME COLOUR CODES
Pin No.
568A
568B
1
WHITE / green
WHITE / orange
2
GREEN / white
ORANGE / white
3
WHITE / orange
WHITE/ green
4
BLUE / white
BLUE / white
5
WHITE / blue
WHITE / blue
6
ORANGE / white
GREEN / white
7
WHITE / brown
WHITE / brown
8
BROWN / white
BROWN / white
P3
P1
P2
P4
568A
P2
P1
P3
P4
568B
Pair 1 – BLUE/white & WHITE/blue
Pair 2 – ORANGE/white & WHITE/orange
Pair 3 – GREEN/white & WHITE/green
Pair 4 – BROWN/white & WHITE/brown
Description
Suitable for use in all Euro modular frontplates, available in the Elements range,
Cat 5e and Cat 6 modules suitable for use in structured cabling distribution systems.
D
E
F
G
50057131
50057132
500571
50057139
4
5
6 1
2
3
4
5
6
1
2
3
7
8
1 6
2 5
3 4
1
3
6
2
2
4
8
5
Euro modules are to be wired as follows
RJ45 Cat.5e
K5845 – Euro
A
B
C
D
50057134
1
2
6
3
1 7 4 5
RJ45 Cat.5
K5844 – Euro Angled
C
D
E
F
1 7 4 5
RJ45 Cat.6 Euro
K5846 – Euro, K5864 – Euro Angled
B
C
D
E
8
7
4
53
1
6
2
RJ45 Cat.6 Screened
K5846S – Euro
1
2
3
4
A
B
C
D
MKEL
C/OS
22ND
288, J
50350
R
MODIFICATION TEXT:
50057136
8
7
4
53
1
6
2
RJ45 Cat.5e Screened
K5845S – Euro
C
D
E
F
G
1 7 4 5
C
D
E
F
G
1 7 4 5
