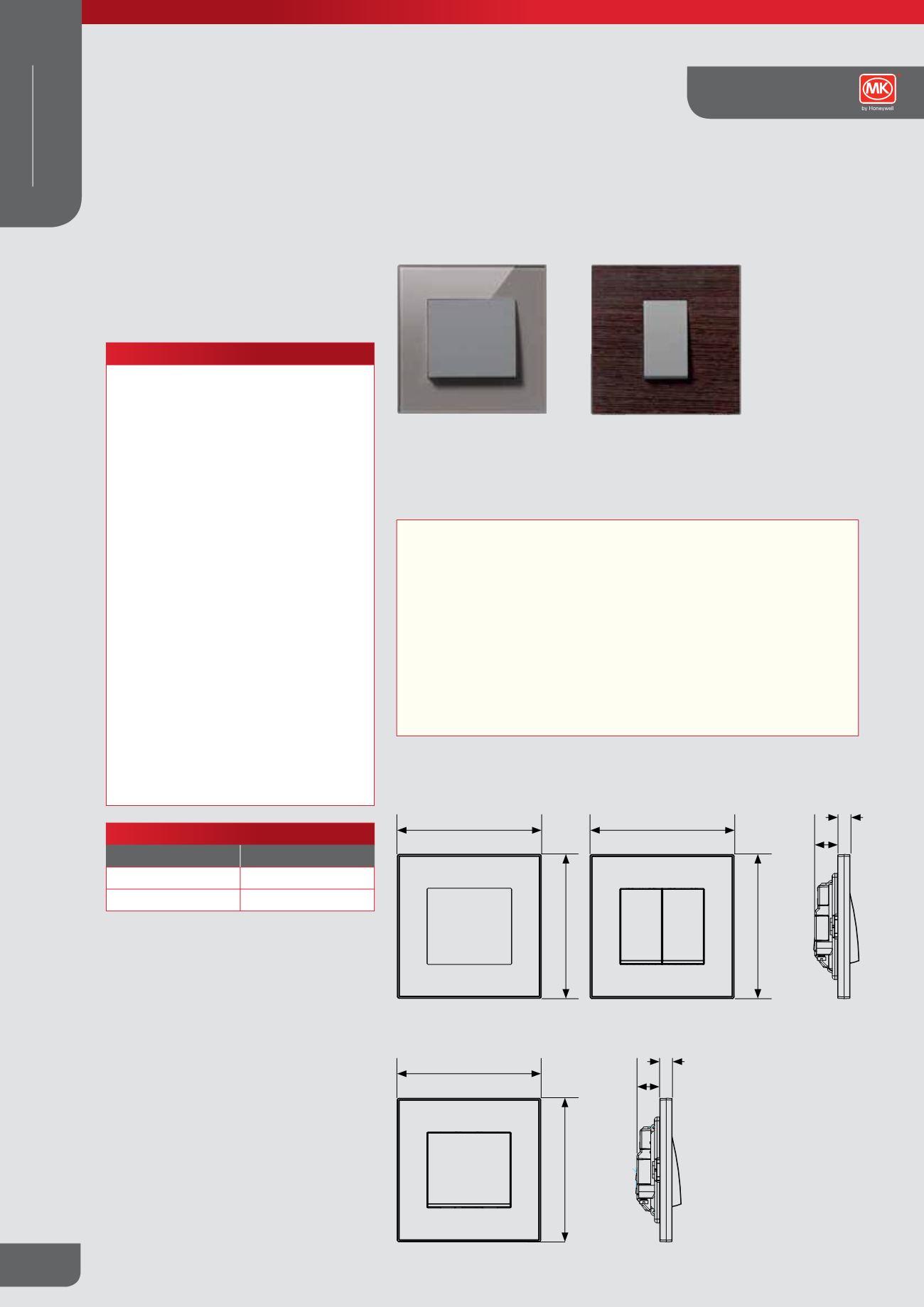

508
Grid Switch Modules
Description
Elements Modular Switches require a separate frontplate, when ordering ensure the
appropriate module and frontplate is selected.
Dimensions (mm)
1 gang
Sectional drawings
show the furthest
projections from the
back of the frontplate
(wall surface).
1 gang wide rocker
2 gang
86
86
86
86
13.7
7.35
86
86
13.7
7.35
Standards and approvals
All Elements switches comply with
BS EN 60669-1:1999.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c. 50Hz
CURRENT RATING
1way/2way
– 10AX or 20AX versions available.
All Push switches
– 10A only
Intermediate
– 20AX only
Double Pole
– 20AX only
Centre Off
– 10A only
TERMINAL CAPACITY
All products
4 x 1mm²
4 x 1.5mm²
3 x 2.5mm²
2 x 4mm²
1 x 6mm²
CONTACT GAP
3mm switch contact gap
(Except K34900 and K34901)
PHYSICAL
OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP4X
MAX. INSTALLATION ALTITUDE
2000 metres
BOX TYPES
Flush
1 and 2 gang switches
861ZIC (25mm deep)
3 and 4 gang switches
862ZIC (25mm deep)
Features
l
16 standard finishes
l
Many more customised
combinations of standard colours,
materials and finishes available
l
Bespoke colours, materials
and finishes available via the
Design Service
l
Switch contacts with silver contacts
on both surfaces for good continuity
l
Positive switch action
l
Only one size of screwdriver
required for installation
l
Backed out and captive
terminal screws
l
Locator versions available for low
light level applications
