505
Shaver/Toothbrush Supply Unit
Description
Designed for ease of installation and having many of the advantageous design
features of the Elements Collection.
May be used in bathrooms and washrooms but must only be installed in accordance
with the latest edition of BS 7671.

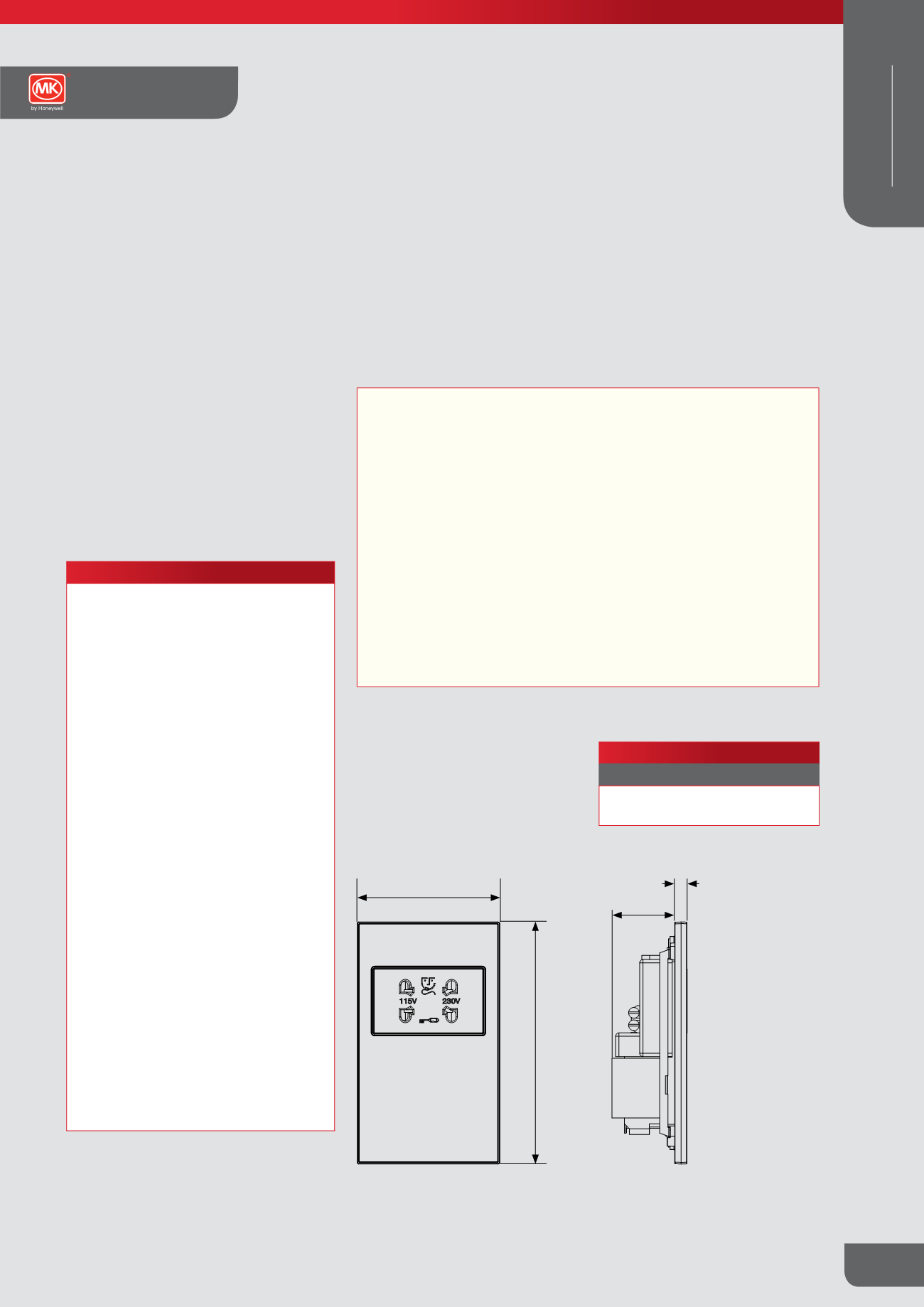

Dimensions (mm)
Installation
Shaver/Toothbrush supply unit should
be wall mounted.
BOX TYPES
Flush mounting only
Metal box 878ZIC
(minimum metal mounting box depth is 47mm)
86
146
37.8
7.35
Standards and approvals
Shaver/Toothbrush supply units comply with
BS EN 61558-2-5: 1998.
Accommodates plugs as follows:
l
British 5mm dia pins on 16.6mm pitch
(230V socket) to BS 4573:1970
l
European 4mm dia pins on 17 to 19mm pitch
(230V socket) to BS EN 50075
l
Australian 6.5 x 1.6 flat blades each set
at 30° to the vertical on a nominal pitch of
13.7mm (230V socket) AS/NZS 3112:2000
l
American 6.6 x 1.6 flat horizontal blades on
12.7mm pitch (115V socket) to UL498/NEMA
WD6
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
230V a.c. Input 50/60Hz
230V or 115V nominal outputs
CURRENT RATING
200mA max. (internal thermister trip current)
MAXIMUM LOAD
20VA
No load voltage < 275V
TERMINAL CAPACITIES
Each terminal will accommodate 1 x 4mm² or
2 x 2.5mm² solid conductors*
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP41 (In Zone 2 if fixed where direct spray from
showers is unlikely)
MAX. INSTALLATION ALTITUDE
2000 metres
*The design of this unit means that on no load
the transformer output is allowed to be as high as
275V. This means that rechargeable shavers and
toothbrushes intended for use on the continent
may be damaged by the inrush current created
by this higher voltage. Rechargeable shavers
and toothbrushes with a wide range of input
voltage should be recharged at 115V. Shavers and
toothbrushes manufactured for the UK are designed
to be used with a transformer unit. Loads in excess
of 20VA may cause the solid state overload to operate
before shaving is completed. This is to protect the
transformer.
Features
l
16 standard finishes
l
Many more customised
combinations of standard colours,
materials and finishes available
l
Bespoke colours, materials and
finishes available via the Design
Service
l
Top access terminal screws make
wiring quicker and easier
l
Automatic primary supply
switching on insertion of plug
l
Choice of 230V or 115V output
socket positions
l
Safety interlocked shutters to
prevent insertion of two plugs
simultaneously
l
Only one size of screwdriver
required for installation
l
Frontplate fixing screws retained
on rear case moulding
l
Integral over current device to
protect transformer
l
Suitable for use with electric
toothbrush chargers.
