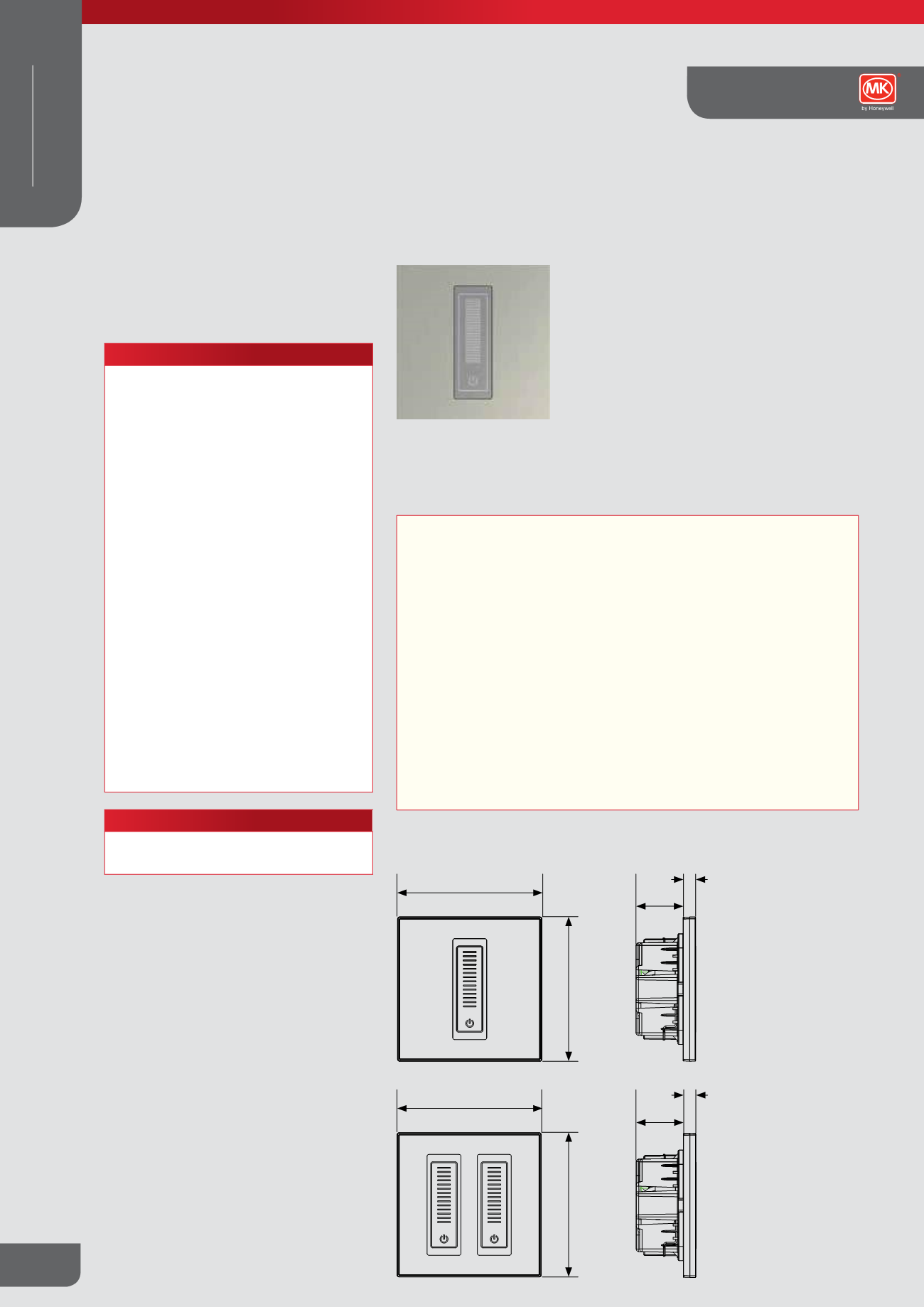

MK Electric Catalogue No. 49

500 / 759

500
Features
l 16 standard finishes
l Many more customised
combinations of standard colours,
materials and finishes available
l Bespoke colours, materials and
finishes available via the Design
Service
l Touch sensitive electronic dimmer
with LED display
l LED Vapour trail follows users
finger to indicate the power level
l Standby light to assist location in
low light level applications
l Soft start and off offers superior
user experience and prolongs
lamp life
l When switched on lights return to
last setting
l Available as 1 and 2 gang
l LED compatible
l Intelligent overload protection
(not applicable to 1-10V dimmer)
l Leading edge and trailing edge
dimmers available
l 2-way dimming available
Electronic Dimmers
Description
Elements Electronic Dimmers offer intuitive touch sensitive silent dimming with LED
displays, for a unique user experience.
Dimensions (mm)
2 gang
PRO/E
1 gang
86
86
28.15
7.35
86
86
28.15
7.35
Standards and approvals
All Elements electronic dimmers comply with
IEC 60669-2-1
TECHNICAL SPECIFICATION
ELECTRICAL
MAINS SUPPLY VOLTAGE
220-240V a.c. 50/60Hz
TERMINAL CAPACITY
All products
4 x 1mm²
4 x 1.5mm²
3 x 2.5mm²
2 x 4mm²
1 x 6mm²
For 1-10V control cable of K34499
2 x 0.75mm²
2 x 1mm²
2 x 1.5mm²
2 x Cat 5e Cable
PHYSICAL
OPERATING TEMPERATURE
-5°C to +40°C
IP RATING
IP4X
MAX. INSTALLATION ALTITUDE
2000 metres
To prevent damage to frontplates during installation
it is recommended that a screwdriver with a blade
width of 4mm is used.
MOUNTING BOX TYPE
The minimum depth required is 35mm.
When using 2.5mm² cables the minimum box depth
required is 40mm.
Elements Collection
Technical
WIRING DEVICES
DECORATIVE
