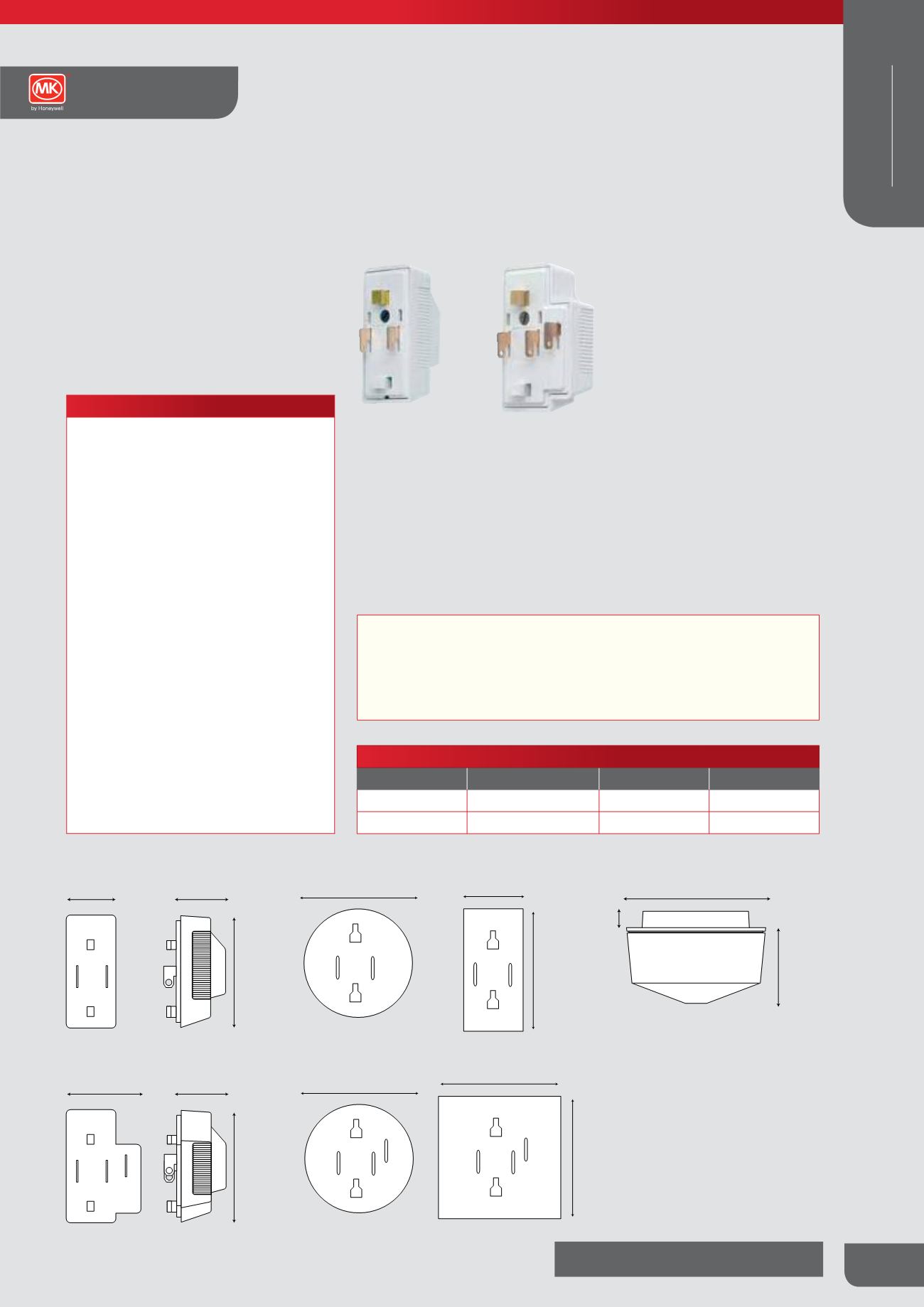

Technical Hotline
+44 (0)1268 563720
Standards and approvals
BS 6972 & BS 5733
Heat resisting three core circular cable BS 6972
& BS 5733 to BS 6500:2000 (Table 29)
Low smoke zero halogen three core circular cable
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c. 50Hz
CURRENT RATING
6 Amp
TERMINAL CAPACITY (ACCESSORIES)
Phase, neutral, earth & ‘loop in’ terminals will each
accept:
K3230, K4230
– 1 x 0.75 or 1 x 1.00mm conductors
K3220, K3212, K3240, K4220, K4214 and K4240
–
5 x 0.75, 5 x 1.00, 4 x 1.50, 3 x 2.50 or 2 x 4.00mm²
conductors
PHYSICAL
STATIC SUSPENSION LOAD
5kg max
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
(not to exceed an average of more than 25°C in any
24 hour period)
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
3 and 4 Pin Accessories/Pre-Wired
Description
A connection and distribution system that brings convenience and versatility to
lighting installations. The range consists of a modular plug and socket interface
which provides electrical connection in one easy click-in action. Luminaries can be
plugged in without isolating the circuit. All live contacts are inaccessible and the
earthing connection is made before any other.
Wired products incorporate either heat resisting flex or low smoke zero halogen
(LSF) insulated and sheathed flexible 0.75mm four core circular cable.
Features
l
Live contacts are inaccessible
l
Earth Contact – first to make, last
to break
l
Mechanical and Electrical
Connection in one ‘click-in’ action
l
Strong load grips support up to 5kg
Dimensions
75mm dia.
44mm
7mm
75mm dia.
86mm
80mm dia.
58mm
K3240, K3242, K3243
K4240, K4242, K4243, K3443
57mm
57mm
25mm
44mm
25mm
35mm
K4230, K4232, K4233
K3230, K3232, K3233
75mm dia.
44mm
57mm
7mm
75mm dia.
86mm
86mm
57mm
25mm
44mm
25mm
35mm
75mm dia.
33mm
80mm dia.
58mm
75mm dia.
44mm
57mm
7mm
75mm dia.
86mm
86mm
57mm
25mm
44mm
25mm
35mm
75mm dia.
33mm
86mm
80mm dia.
58mm
K3220
K4220
K4214
MOUNTING BOXES
Surface
Flush (dryline)
Flush (solid)
K3220/K3240
K3220/K4220/K4240WHI
N/A
N/A
K4214
K2160WHI
QFB1WHI
861ZIC
75mm dia.
44mm
57mm
7mm
75mm dia.
86mm
86mm
57mm
25mm
44mm
25mm
35mm
75mm dia.
33mm
86mm
80mm dia.
58mm
K3212
Link Technical
WIRING DEVICES
WHITE
For a full range of corresponding products,
see pages 58-62 in the product selector.
