5 Amp Socket Outlets

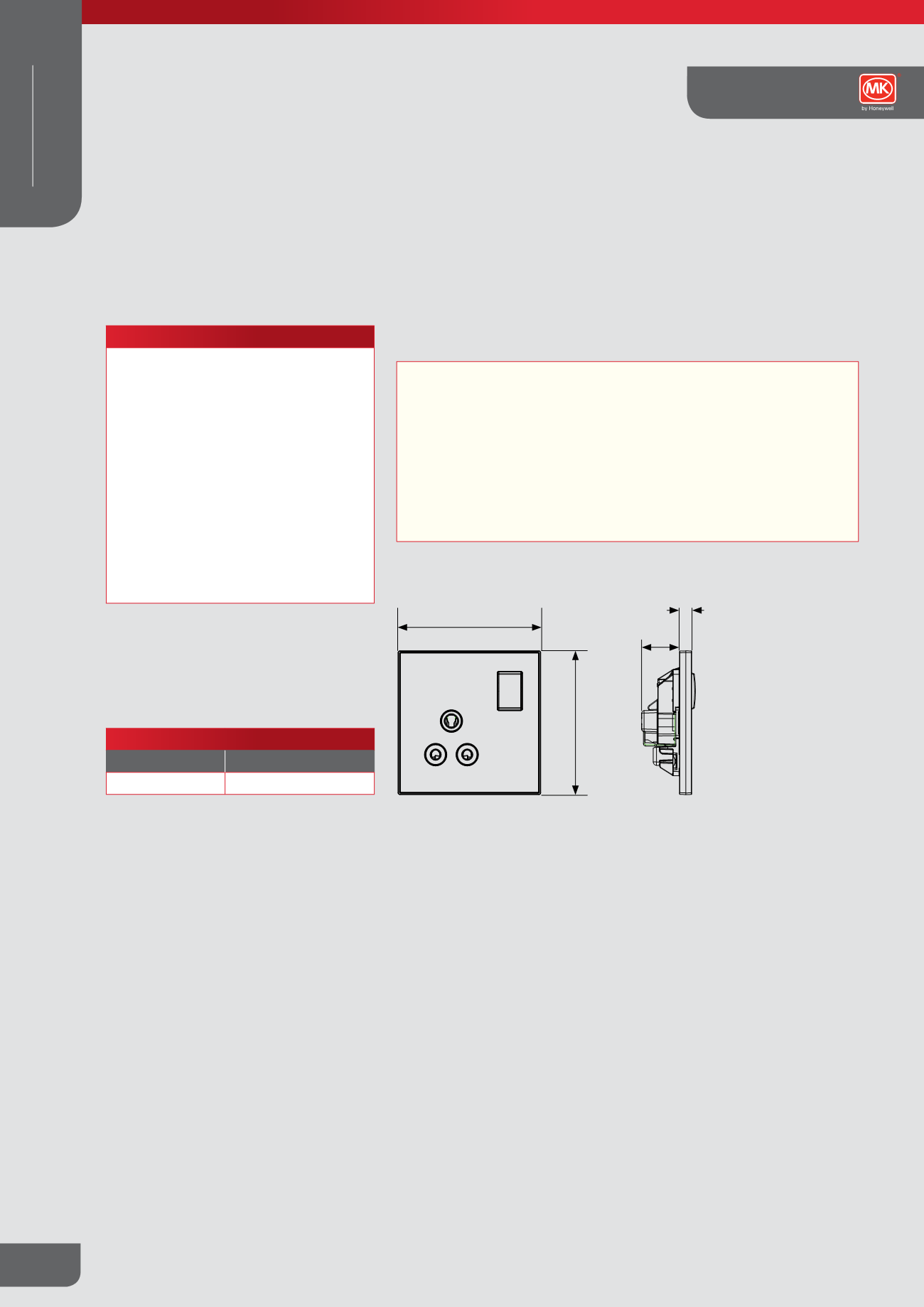

Dimensions (mm)
86
86
22.8
7.35
Standards and approvals
Round pin socket outlets comply with BS 546
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
TERMINAL CAPACITY
3 x 2.5mm²
3 x 4mm²
2 x 6mm² (stranded)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
Installation
Elements socket outlets can be wall or bench
mounted – do not mount or use as a trailing
socket or where they may be subjected to
excessive moisture or dampness.
BOX TYPES
Flush
Flush (for extra wiring space)
866ZIC (35mm deep)
877ZIC (46mm deep)
Description
A range of round pin socket outlets designed for ease of installation and having all the
advantages and design features of the Elements Collection. These products can be
quickly installed as replacements for existing socket outlets or in new installations.
Features
l
16 standard finishes
l
Many more customised
combinations of standard colours,
materials and finishes available
l
Bespoke colours, materials and
finishes available via the Design
Service
l
3mm minimum switch contact gap
l
Only one size of screwdriver
required for installation
l
Round Pin Socket Outlets
