MK Electric Catalogue No. 49

mkelectric.co.uk

524

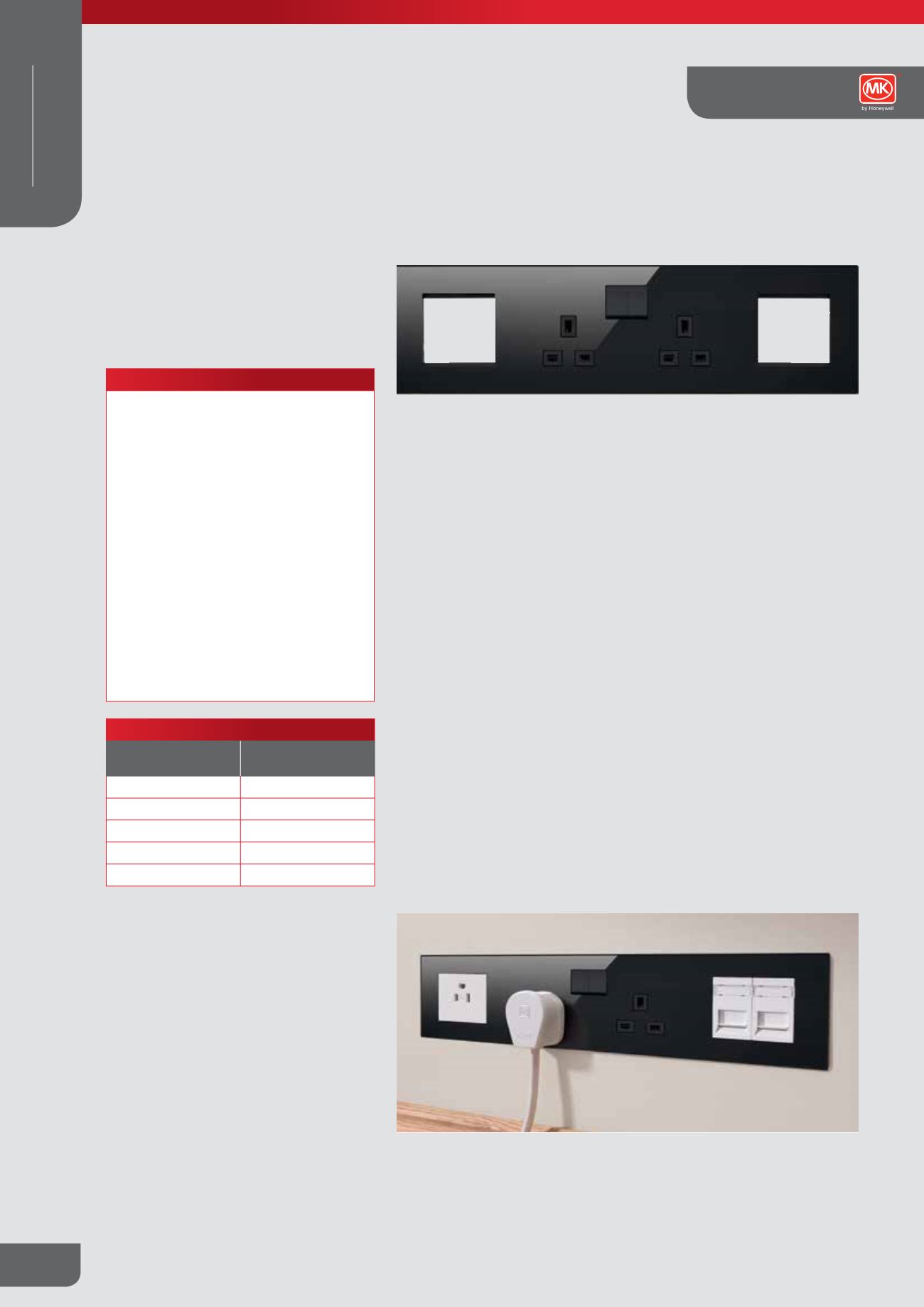

Multimedia Plates

Description

A range of multimedia plates designed for ease of installation and having all the

advantageous design features of the Elements range.

These multimedia socket outlets provide interior designers and installers with a

stylish and practical wiring device solution. The range also has larger Euro module

frontplates to house eight and twelve single Euro modules without the inclusion of

fixed socket outlets. The K34209 multimedia socket outlet, for example allows for

the inclusion of up to eight single Euro modules, which could include datacoms,

telecoms, plus TV and Satellite modules.

Alternatively, Euro Power Modules i.e. German, French/Belgium and American

socket outlets may be used.

Note:

Pre-configured back boxes are designed for use with the multimedia plates.

These back boxes should always be used to ensure alignment of the fixing

screws is correct and proper segregation between mains and extra low voltage

products is maintained (products are supplied with clip on segregators)

Back boxes must be installed 10mm sub flush to the wall surface

Mains operated products and extra low voltage modules must not be installed

within the same frontplate aperture. Refer to BS 7671 for details

When removing the fixing screws and frontplate from an installation to gain

access to low voltage modules, please be aware that there will also be access to

the mains supply

Multimedia plates allow the use of a variety of power and data modules making

them ideal for hotels.

Bespoke requirements can be achieved through

the MK Design Service to deliver variation

in colours, materials, function, finishes and

markings.

For more information please visit

www.mkelectric.co.uk

or call 01268 563720

Standards and approvals

All Elements 13A socket outlets comply with

BS 1363: Part 2:1995.

K34209 and K34210 comply with BS 5733:2010.

TECHNICAL SPECIFICATION

ELECTRICAL

VOLTAGE RATING

250V a.c.

CURRENT RATING

13A

TERMINAL CAPACITY

Live, neutral & earth

3 x 2.5mm²

3 x 4mm²

2 x 6mm² (stranded)

PHYSICAL

AMBIENT OPERATING TEMPERATURE

–5°C to +40°C

IP RATING

IP2XD

MAX. INSTALLATION ALTITUDE

2000 metres

MOUNTING BOXES

Combination Plate

List Number

47mm

Mounting Box

K34206

870ZIC

K34207

870ZIC

K34208

868ZIC

K34209

858ZIC

K34210

869ZIC

Elements Collection

Technical

WIRING DEVICES

DECORATIVE
