523
Roller Shutter / Blind Control
Description
The Elements Roller Shutter / Blind Control will operate a motor run device enabling
the control of window coverings.

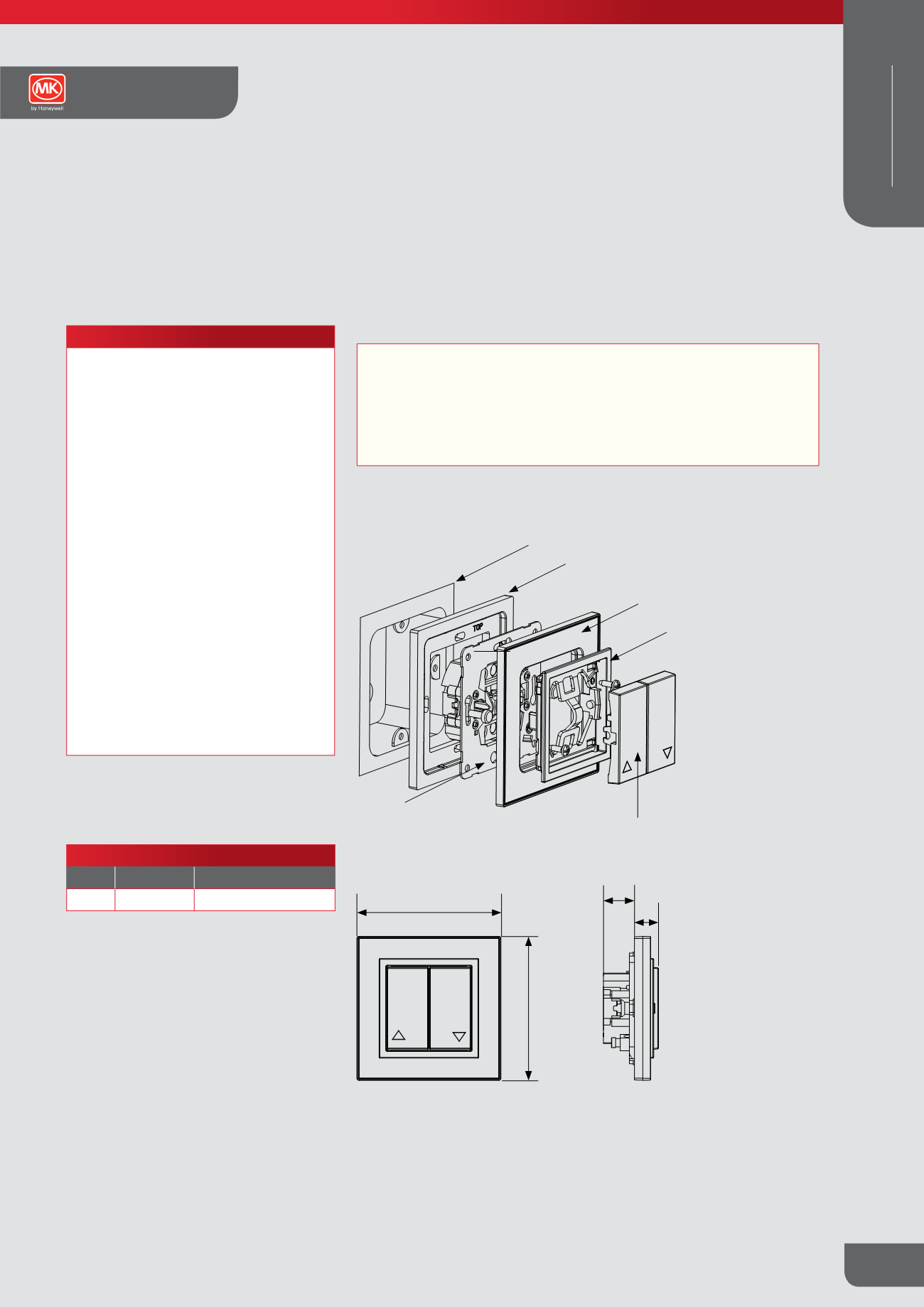

Dimensions (mm)
Frontplate and Module Installation
86
86
9.65
18.5
WALL BOX
PATTRESS
FRONTPLATE
ROLLER SHUTTER
MODULE
ROCKER
ROCKER FRAME
Standards and approvals
IEC60669-1
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250 VAC
CURRENT RATING
10A
TERMINAL CAPACITY
Stranded Cables
2 x 2.5mm²
1 x 4.0mm²
Solid Cables
2 x 2.5mm²
2 x 4.0mm²
EARTH TERMINAL
4 x 2.5mm²
3 x 4.0mm²
2 x 6.0mm²
PHYSICAL
AMBIENT OPERATING TEMPERATURE
0°C to +35°C
IP RATING
IP2X
MAX INSTALLATION ALTITUDE
2000 metres
Installation
For optimal performance ensure the product is
orientated correctly.
BOX TYPES
Flush
Flush (for extra wiring space)
1 GANG
866ZIC (35mm)
877ZIC (47mm)
Features
l
16 standard finishes
l
Many more customized
combinations of standard colours,
materials and finishes available
l
Bespoke colour materials and
finishes available via the Design
Service
l
Easy to install
