Basicenclosures
Engineering
Enclosure size selection

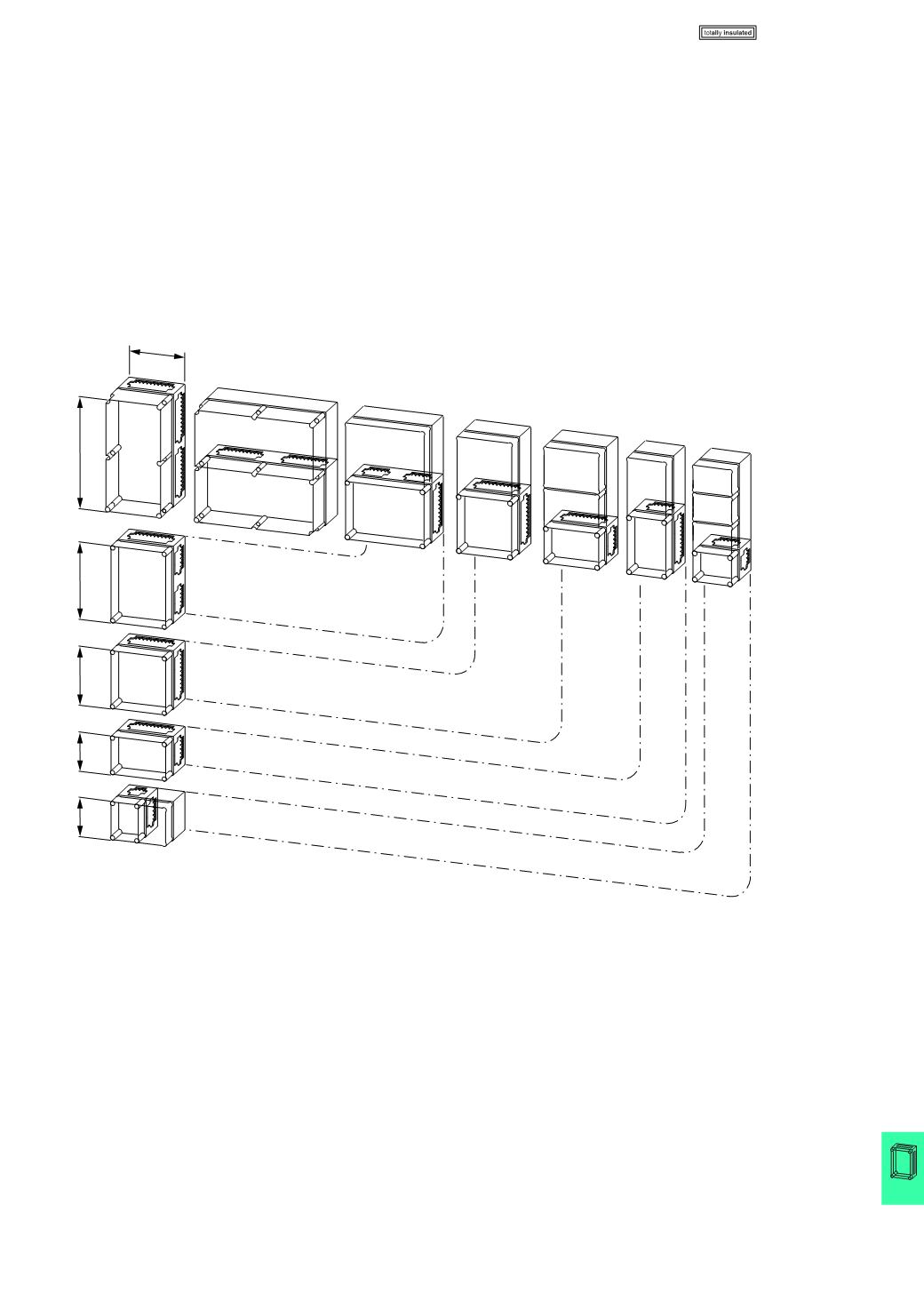

Enclosure measurements
Width:
187.5
mm
375
mm
Height:
250
mm
375
mm
500
mm
750
mm
Suitable for distribution board systems with section widths in 375 mm grid. Rotation
of enclosure by 90° allows section widths in 250 mm grid.
With various cover depths, four standardized mounting depths can be implemented
in a 25 mm grid (upper edge of mounting plate to lower edge of cover):
125
mm
150
mm
200
mm
250
mm
750
375
500
375
250
250
CI…, U-CI…, D...-CI...
