Motor-protective circuit-breakers PKZ2
Contact modules
Part no.
Article no.
Price
See price
list
Std. pack Notes Notes
SE1A/11-PKZ2(230V50HZ,240V60HZ)
063711
1 off Order clip plate for snap-fitting the combination
separately. Can be fitted to 3 or 4 pole circuit-breaker.
When combined with a clip plate, can be snap-fitted
to one or two IEC/EN 60715 top-hat rails with 15 mm
height.
Can be mounted separately using base (see below),
RC suppressor on request.
DC version: The coil cannot be changed. Built-in
auxiliary contact HI10-S-PKZ2 can be switched
freely. The auxiliary contact cannot be changed.
DC version with suppressor circuit (varistor
suppressor).
High-capacity contact modules with serial no. 01
suitable for mounting with MV‐PKZ2.
SE1A/20-PKZ2(230V50HZ,240V60HZ)
063718
1 off
SE1A-G-10-PKZ2(24VDC)
058856
1 off
S-PKZ2(230V50HZ,240V60HZ)
063696
1 off Order clip plate for snap-fitting the combination
separately. Can be fitted to 3 or 4 pole circuit-breaker.
When combined with a clip plate, can be snap-fitted
to one or two IEC/EN 60715 top-hat rails with 15 mm
height.
Can be mounted separately using base (see below),
RC suppressor on request.
A coil change is not possible, the integrated
HI10-S-PKZ2 auxiliary contact can be switched
freely, an auxiliary contact change is not possible.
With suppressor circuit (varistor suppressor).
High-capacity contact modules with serial no. 01
suitable for mounting with MV‐PKZ2.
S/HI20-S-
PKZ2(230V50HZ,240V60HZ)
063703
1 off
S-G-PKZ2(24VDC)
070921
1 off
VGSPKZ48
063974
10 off For (high-power) contact modules with AC actuation,
50 - 60 Hz
VGSPKZ250
063973
10 off
EZ-PKZ2
028596
1 off For retrofitting of (high-capacity) contact module or
current limiter, separate mounting
When mounting separately, also functions as
mounting base for auxiliary contact HI11-S/EZ-PKZ2.
Can be snap-fitted on IEC/EN 60715 top-hat rail, or
optional M4 screw fixing

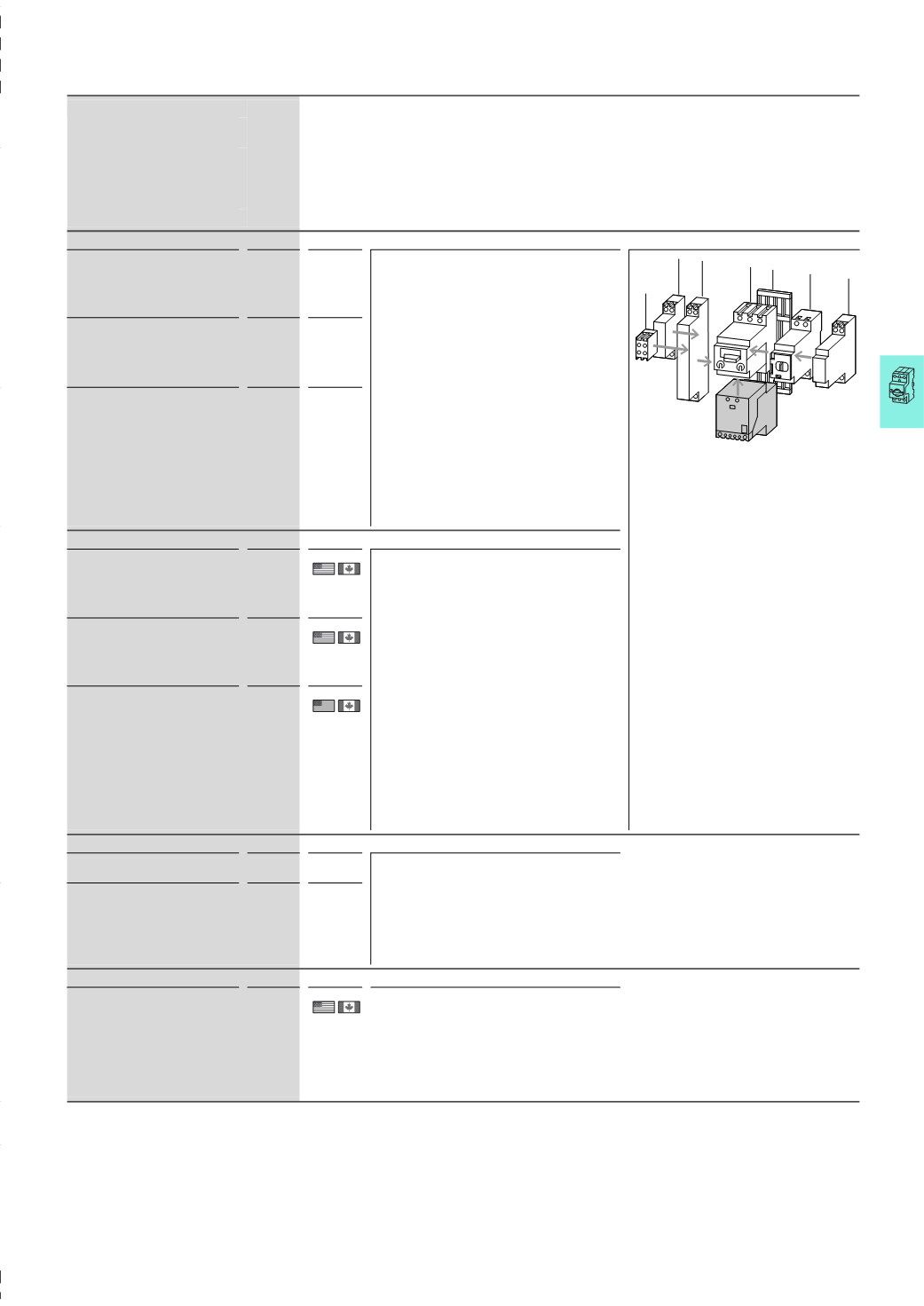

Accessories Page
1 Motor-protective circuit-breaker,
circuit-breakers
￫ 7/48
3 Standard auxiliary contacts ￫ 7/58
4 Standard auxiliary contacts ￫ 7/58
5 Trip-indicating auxiliary contact ￫ 7/58
6 Shunt releases,
undervoltage releases
￫ 7/60
7 Remote operators ￫ 7/62
9 Clip plate ￫ 7/69
Further actuation voltages ￫ 7/71
Additional accessories ￫ 7/56
5
3 4
9 1 7 6
7/65
