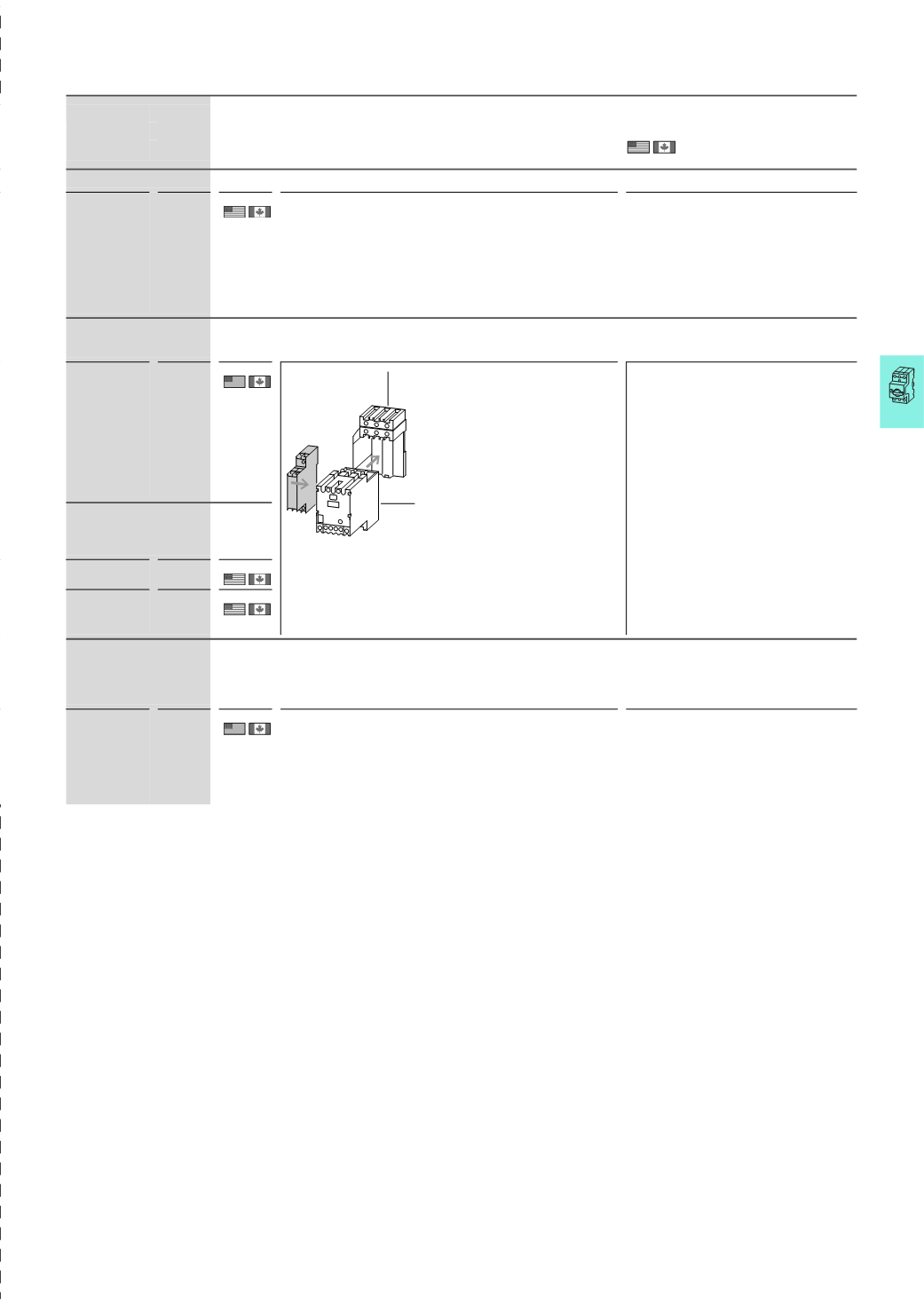

Motor-protective circuit-breakers PKZ2
Accessories for contact modules
Part no.
Article no.
Price
See price
list
Std. pack Notes Information relevant for export to North America
ST-PKZ2
010998
3 off 1 set = 2 off
VDE/IEC and UL/CSA compliant
Connection option for fast-on connectors (insulated/non-insulated) 2.8
mm
Max. cross-section 0.5 - 1 mm2, 20 - 16 AWG
Max. current tap off 1 A or 15 % of the set value
Increase setting of thermal release accordingly.
Enables control circuit supply to be tapped off between motor-protective
circuit-breaker or circuit-breaker and (high-capacity) contact module.
Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE marking
HI11-S/EZ-PKZ2
090305
1 off Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 12528
CSA Class No. 3211-05
NA Certification UL Listed, CSA certified
HI11-S-PKZ2
033936
1 off
HI20-S-PKZ2
033935
1 off
MV-PKZ2
033938
1 off Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 12528
CSA Class No. 3211-05
NA Certification UL Listed, CSA certified
Accessories Page
8 High-capacity contact modules ￫ 7/64
10 Base for separate mounting ￫ 7/64
Further actuating voltages ￫ 7/70
10
8
7/67
HI...-PKZ2 HPL07067EN
