Eaton Industrial Switchgear - xStart switching, protections and actuating motors

255 / 439

2010 CA08103002Z-EN

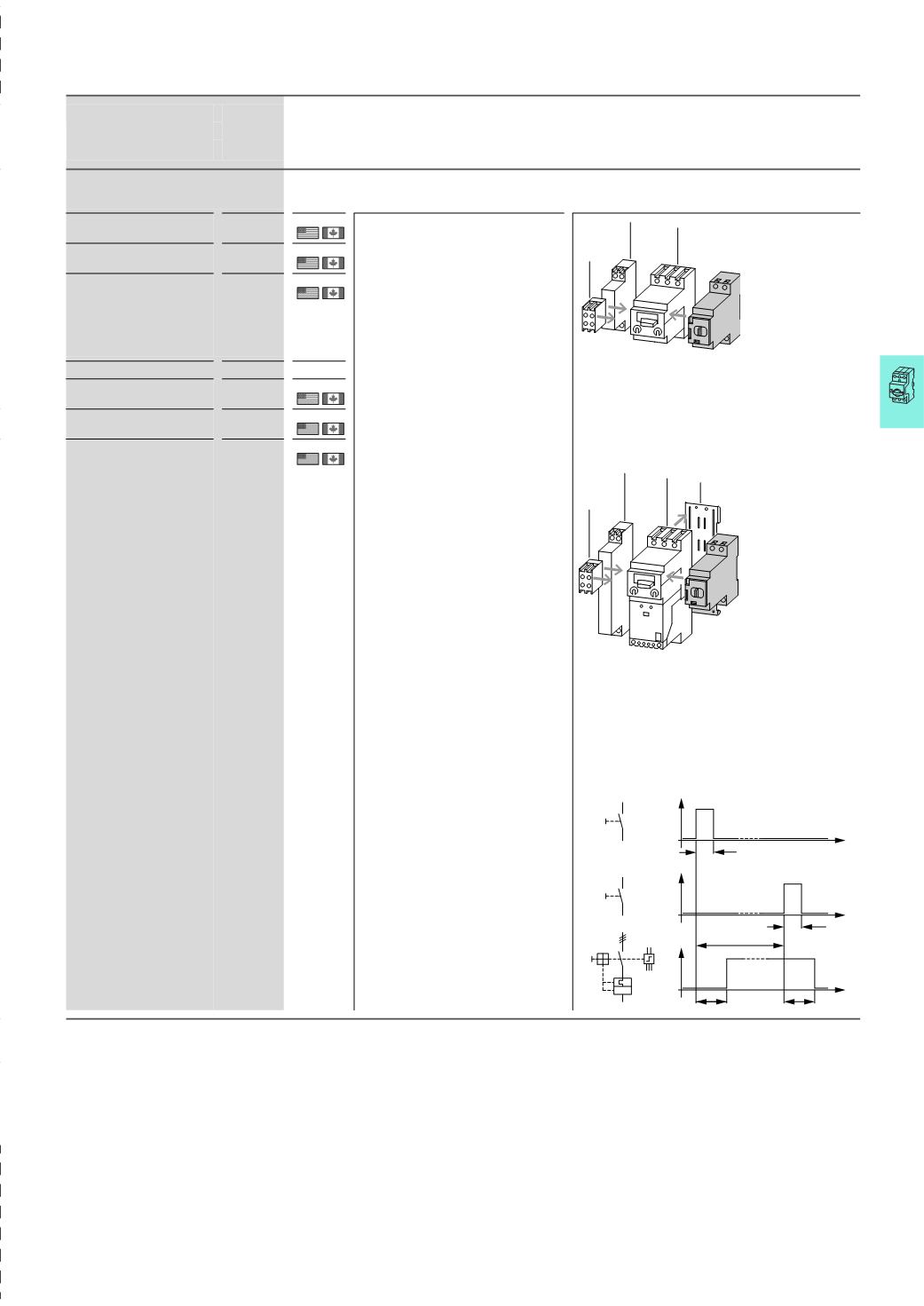

Motor-protective circuit-breakers PKZ2
Remote operators
Part no.
Article no.
Price
See price
list
Std. pack Notes Notes
RE-PKZ2(220-240V50/60HZ,DC)
063676
1 off Can be fitted to circuit-breakers and (high-
power) compact starters. Switches circuit-
breakers ON/OFF remotely (or OFF after
tripping).
Remote operator can be switched off locally
and the thumb-grip locked with a 6 mm
padlock.
Suitable for AC or DC voltage.
Can be combined with voltage release U,
U-HI20, UVHI-PKZ2 or A-PKZ2.
Standard auxiliary contact NHI is always
required for the combination of circuit-
breaker and Remote operator RE/RS-PKZ2.
Cannot be combined with door coupling
handle PKZ2-X(R)H. .
Mounting possible in switch position.
Internal electronic interlock always
prioritizes “OFF”.
Green slider position ≙ ,"Manual" position
(33/34) open.
Red slider position ≙ ,"Auto" position (33/34)
closed.
In “manual” position remote switching is not
possible.
RE-PKZ2(110-120V50/60HZ,DC)
063673
1 off
RE-PKZ2(24V50/60HZ,DC)
063670
1 off
RS-PKZ2(220-240V50/60HZ,DC)
063688
1 off
RS-PKZ2(380-415V50/60HZ)
063689
1 off
RS-PKZ2(24V50/60HZ,DC)
063682
1 off
Accessories Page
1 Motor-protective circuit-breaker, circuit-
breakers
￫ 7/48
3 Standard auxiliary contacts ￫ 7/58
5 Trip-indicating auxiliary contact ￫ 7/58
Additional accessories ￫ 7/56
1
3
5
Accessories Page
2 (High-capacity) compact starter ￫ 7/51
4 Standard auxiliary contacts ￫ 7/58
5 Trip-indicating auxiliary contact ￫ 7/58
9 Clip plate ￫ 7/69
2 4
5
9
Minimum command time:
f15
O
I
t (ms)
I
O
t (ms)
I
O
t (ms)
CONTROL
ON
LINE
CONTROL
ON
OFF/RESET
CONTROL
OFF/RESET
ON
OFF
f15
f 300
F30 F 30
Main contact
7/63
RE-PKZ, RS-PKZ HPL07063EN
