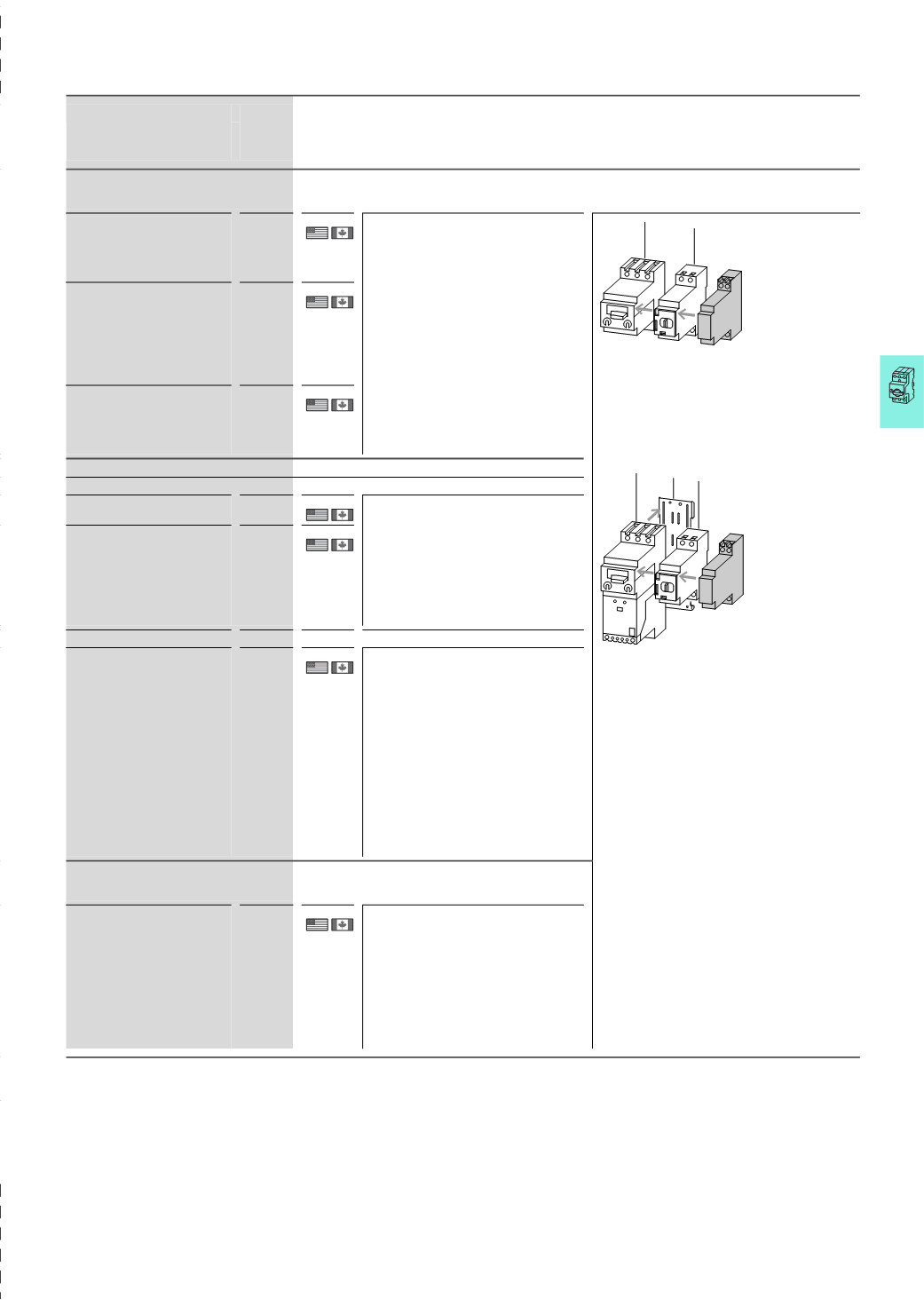

www.eaton.comMotor-protective circuit-breakers PKZ2
Accessories
Part no.
Article no.
Price
See price
list
Std. pack
Notes
Notes
A-PKZ2-A
063967
1
off
Can be fitted to motor-protective circuit-
breakers, circuit-breakers, and (high-capacity)
compact starters
Can be combined with remote operator.
A-PKZ2-B
063964
1
off
A-PKZ2-C
063930
1
off
U-PKZ2(230V50HZ,240V60HZ)
065766
1
off
Can be fitted to motor-protective circuit-
breakers, circuit-breakers, and (high-capacity)
compact starters
Can be combined with remote operator.
When combined with circuit-breaker
can be used as emergency switching off
device to IEC/EN 60204.
U-PKZ2(24VDC)
014463
1
off
U-HI20-PKZ2(230V50HZ,240V60HZ)
065768
1
off
Can be fitted to motor-protective circuit-
breakers, circuit-breakers, and (high-capacity)
compact starters
Can be combined with remote operator.
Two early-make N/O contacts built in.
When combined with circuit-breaker, can be
used as emergency switching off device to
IEC/EN 60204.
When the circuit-breaker is in the tripped position
“
+”, the auxiliary contacts are closed.
The undervoltage release can be energized early
with an additional bridge (see circuit diagram).
This function cannot be used in combination with
RE/RS-PKZ2 (remote operator).
UVHI-PKZ2(230V50HZ,240V60HZ)
065770
1
off
Can be fitted to motor-protective circuit-
breakers, circuit-breakers, and (high-capacity)
compact starters
Can be combined with remote operator.
Two early-make N/O contacts built in.
Voltage drops ≦ 200 ms do not cause opening;
contact time 200 ms when switching on.
When the circuit-breaker is in the tripped
position “+”, the auxiliary contacts are closed.
Accessories
Page
1
Motor-protective circuit-breaker,
circuit-breakers
￫ 7/48
7
Remote operators
￫ 7/62
Additional accessories
￫ 7/56
1
7
Accessories
Page
2 (
High-capacity) compact starter
￫ 7/51
7
Remote operators
￫ 7/62
9
Clip plate
￫ 7/69
Additional accessories
￫ 7/56
Further actuating voltages
￫ 7/70
2
9 7
