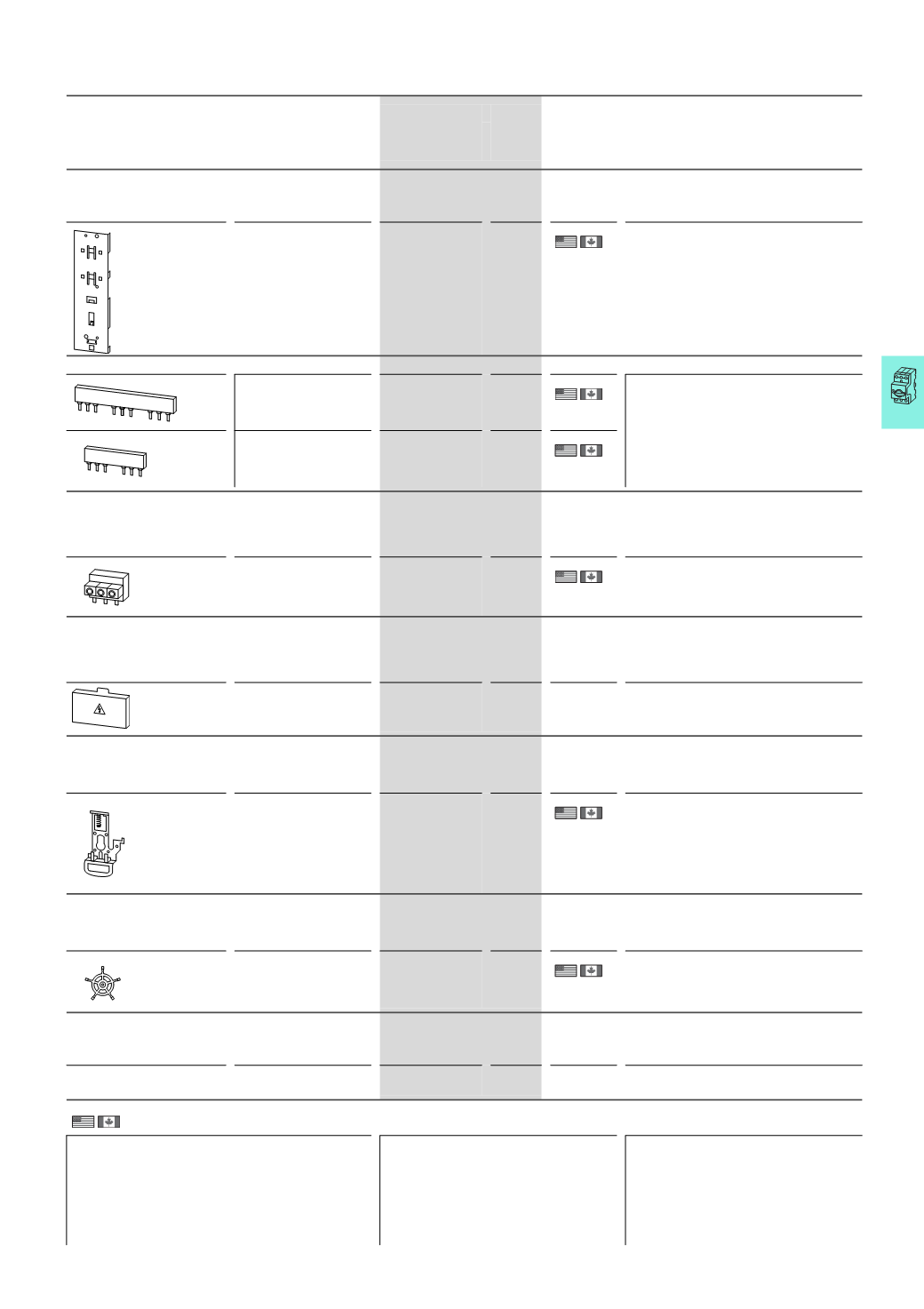

Motor-protective circuit-breakers PKZ2
Accessories
2010
CA08103002Z-EN
www.eaton.com7/69
Accessories
For use with
Part no.
Article no.
Price
See price
list
Std. pack
Notes
Clip plate
For optional snap-on and M4 screw fixing for circuit-breakers
with (high-power) contact module or current limiter
Can be used with busbar
adapter
C-PKZ2
052710
2
Off
Can be snap-fitted to one IEC/EN 60715 top-hat
rails with 15 mm height or two top-hat rails
exceeding 10 mm height
UL/CSA certification not required
Three-phase commoning links
For wiring 3 PKZ2s, space is
provided for either 2
auxiliary contacts or 2
voltage releases
B3.1/3-PKZ2
1)
033940
5
Off
Can be extended to several PKZ2s by rotated
mounting, protected against accidental contact
U
e
= 690 V, I
u
= 120 A, short-circuit proof
For wiring of 2 PKZ2, space
is provided for either 1
auxiliary contact or 1 shunt
release
B3.1/2-PKZ2
1)
063969
5
Off
Supply terminal
For three-phase commoning link, protected against accidental
contact
U
e
= 690 V, I
u
= 120 A
–
BK50/3-PKZ2
2)
033941
2
Off
For connection of:
max. 1 x 50 mm
2
or 2 x 35 mm
2
above one another;
min. 1 x 1 mm
2
or 2 x 1 mm
2
Shroud for unused terminals
Protection against direct contact.
To cover unused terminals
on three-phase commoning link
–
H-B3-PKZ2
063968
10
Off
Snap-fitting option must be available on the three-
phase commoning link
Padlocking feature
For locking the circuit-breaker in the 0 position when the control
panel door is open (rear-mounting type)
–
SVB-PKZ2
1)
050337
5
Off
Suitable for 3 padlocks with 5 – 8 mm hasp
thickness
Coding pins
For coding (in dual coding system) the devices assigned from trip
block to PKZ2(4) basic device
–
CS-PKZ2
3)
055083
1
Off
–
Documentation
PKZM2 motor-protective circuit breakers, overload monitoring of
EEx e motors
German/English
AWB1210-1485D/GB
266166
1
Off
–
Information relevant for export to North America
1)
Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-4-
1;
CE marking
UL File No.
E36332
UL CCN
NLRV
CSA File No.
12528
CSA Class No.
3211-05
NA Certification UL Listed, CSA certified
2)
Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE marking
UL File No.
E36332
UL CCN
NLRV
CSA File No.
98494
CSA Class No.
3211-06
NA Certification
UL Listed, CSA certified
3)
Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE marking
UL File No.
E36332
UL CCN
NLRV
CSA File No.
On request
NA Certification
UL Listed, CSA certified
