Darwin Technology
Accessories
2010 CA08103002Z-EN
1/17

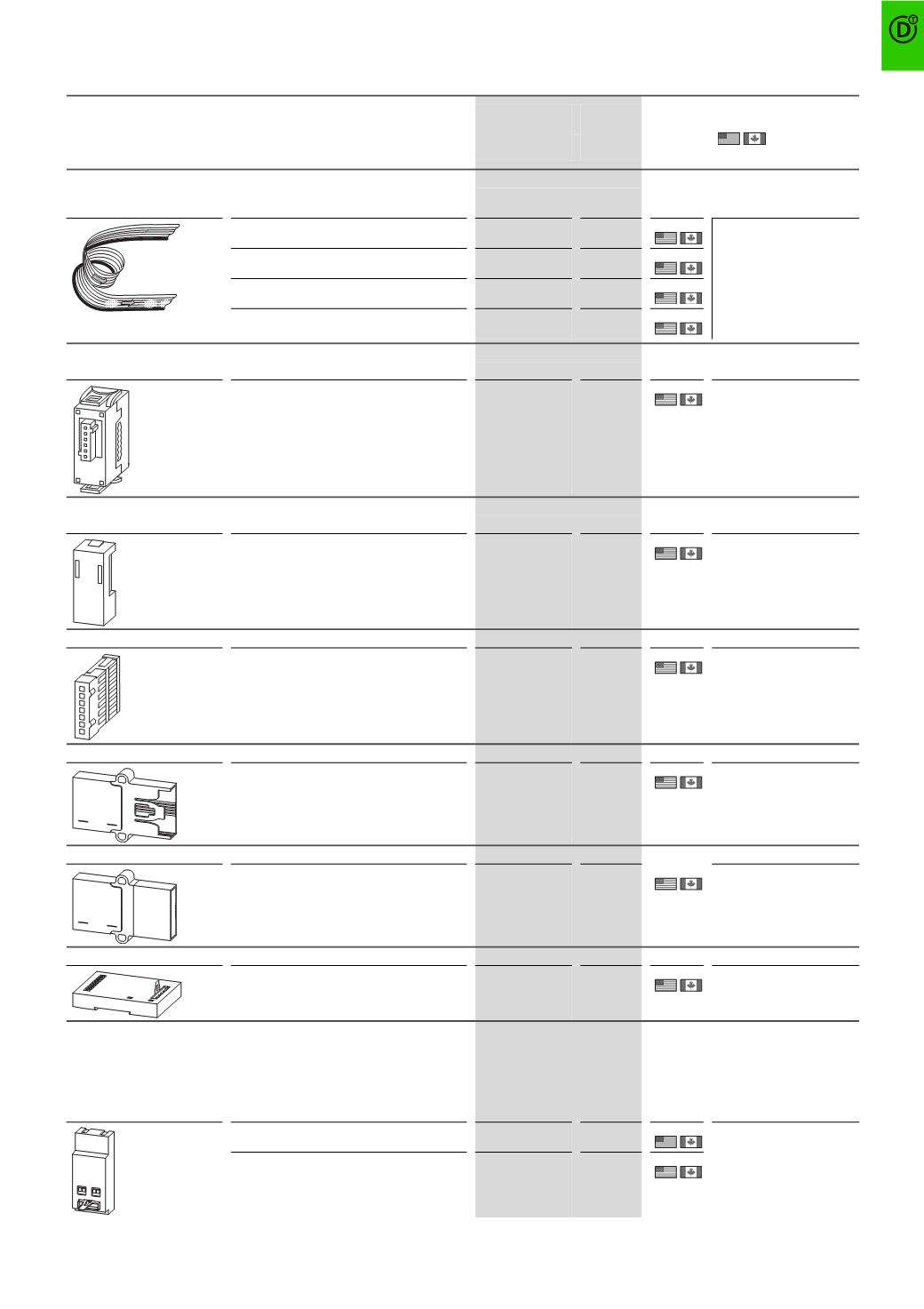

Accessories
Description Part no.
Article no.
Price
See price
list
Std. pack Informationrelevantforexport
to North America
Ribbon cable, 8 pole
For laying the SmartWire-Darwin network inside the control panel.
Length: 100 m SWD4-100LF8-24
116026
1 off NA Certification
Request filed for UL and CSA
UL/CSA approval applied for
Length: 3 m
Prefabricated with 2 blade terminals SWD4-8MF2.
SWD4-3LF8-24-2S
116027
1 off
Length: 5 m
Prefabricated with 2 blade terminals SWD4-8MF2.
SWD4-5LF8-24-2S
116028
1 off
Length: 10 m
Prefabricated with 2 blade terminals SWD4-8MF2.
SWD4-10LF8-24-2S
116029
1 off
Device plug
Device plug for connecting SmartWire-Darwin slaves
SWD4-8SF2-5
116022
10 off NA Certification
Request filed for UL and CSA
UL/CSA approval applied for
Link
Bridging open mounting locations for device plugs
Link for device plug SWD4-8SF2-5 SWD4-SEL8-10
116021
5 off NA Certification
Request filed for UL and CSA
UL/CSA approval applied for
Blade terminal
8 pole blade terminal for connection to
gateway, power feeder module, coupling, network
termination
SWD4-8MF2
116023
10 off NA Certification
Request filed for UL and CSA
UL/CSA approval applied for
Coupler
Coupling for 8 pole blade terminal SWD4-8SFF2-5
116024
1 off NA Certification
Request filed for UL and CSA
UL/CSA approval applied for
Network terminator
Network terminator for 8 pole ribbon cable SWD4-RC8-10
116020
1 off NA Certification
Request filed for UL and CSA
UL/CSA approval applied for
Cable adapter
Cable adapter for flat cable (plug) to
round cable (terminal)
SWD4-8FRF-10
121377
1 off NA Certification
Request filed for UL and CSA
UL/CSA approval applied for
Switch cabinet bushing
Transition from SWD ribbon cable to round cable, can be plugged-in on both sides.
Additional control voltage feeder for the motor starters and contactors.
Suitable for wall thickness up to 4 mm.
Protection type IP67, drill hole 18.5 mm.
Connection of ribbon cable with blade terminal SWD4-8MF2
8 pole
Connection round cable via socket. SWD4-SFL8-20
121380
1 off NA Certification
Request filed for UL and CSA
UL/CSA approval applied for Connection round cable via plug. SWD4-SML8-20
121381
1 off
SWD4- 8SF2 SWD4-8SF 2 SWD4-8S
+ 15V
SWD4-8SFF2-5
+ 15V
SWD4-RC8-10
12345678
+15V
