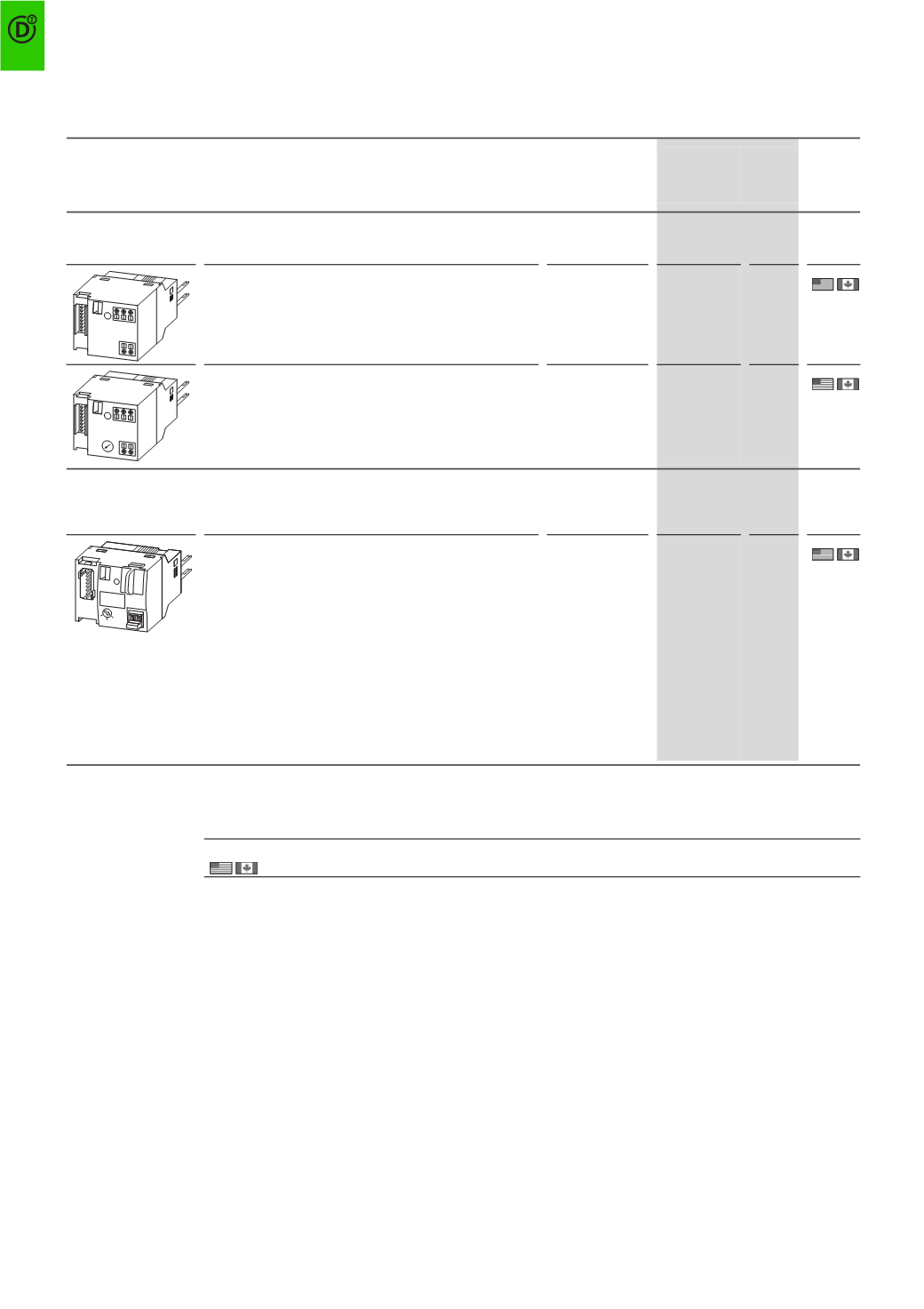

1/14 Darwin Technology
SWD contactor modules, SWD PKE module
2010 CA08103002Z-EN
SWDcontactormodules,SWDPKEmoduleOrdering
Description For use with Part no.
Article no.
Price
Seeprice
list
Std. pack
SWD contactor modules1)
SmartWire-Darwin module for surface-mounting on contactors.
Per contactor 1 module.
Two digital inputs for floating contacts.
1 electrical interlock for the surface mounting of reversing starters.
Messages: contactor switch status, status of the digital inputs 1 and 2.
Commands: contactor actuation
DILM(C)7… -
DILM(C)32
DILM38
DILA
MSC-D(E)-...(24VDC)
DIL-SWD-32-001
118560
5 off
Two digital inputs for floating contacts.
1 electrical interlock for the surface mounting of reversing starters.
1-0-A switch for manual or automatic operation.
Messages: contactor switch status, status of the digital inputs 1 and 2,
switch position 1-0-A switch.
Commands: contactor actuation
DILM(C)7… -
DILM(C)32
DILM38
DILA
MSC-D(E)-...(24VDC)
DIL-SWD-32-002
118561
5 off
SWD PKE module1)2)
SmartWire-Darwin module for connection of motor starter combination, model “extended”
24 V DC (MSC-DEA-…) up to 15 kW.
One module per contactor and PKE.
Surface-mounting to contactors.
Interface for connection of PKE trip block PKE-XTUA-…
Connecting cable between module and trip block PKE-XTUA-…
included as standard.
1 electrical interlock for the surface mounting of reversing starters.
1-0-A switch for manual or automatic operation.
Selectable overload relay function (ZMR) for disconnecting the
contactor on overload.
Messages:
- Switch position contactor/PKE/1-0-A switch
- Motor current in %
- Thermal motor image in %
- Trip-indicating auxiliary contact (overload, short-circuit,...)
- Set value of overload release
- Set value of time lag (CLASS), type of trip block
Commands: contactor actuation, activation of overload relay function
(ZMR)
DILM(C)7… -
DILM(C)32
MSC-DEA
PKE-SWD-32
126895
4 off
Notes 1)
2)
• Take into account the max. current consumption of the contactor coils per SmartWire-Darwin line.
• A2 connections must not be bridged.
• Wiring sets DILM 12-XRL and PKZM0-XRM12 cannot be used.
• Connection terminals for electrical interlocking are not suitable for safety technology.
• Additional SWD contactor module required fir actuation of reversing starter.
Information relevant for export to North America
NA Certification Request filed for UL and CSA
UL/CSA approval applied for
