Darwin Technology
Soft starters
2010 CA08103002Z-EN
1/15

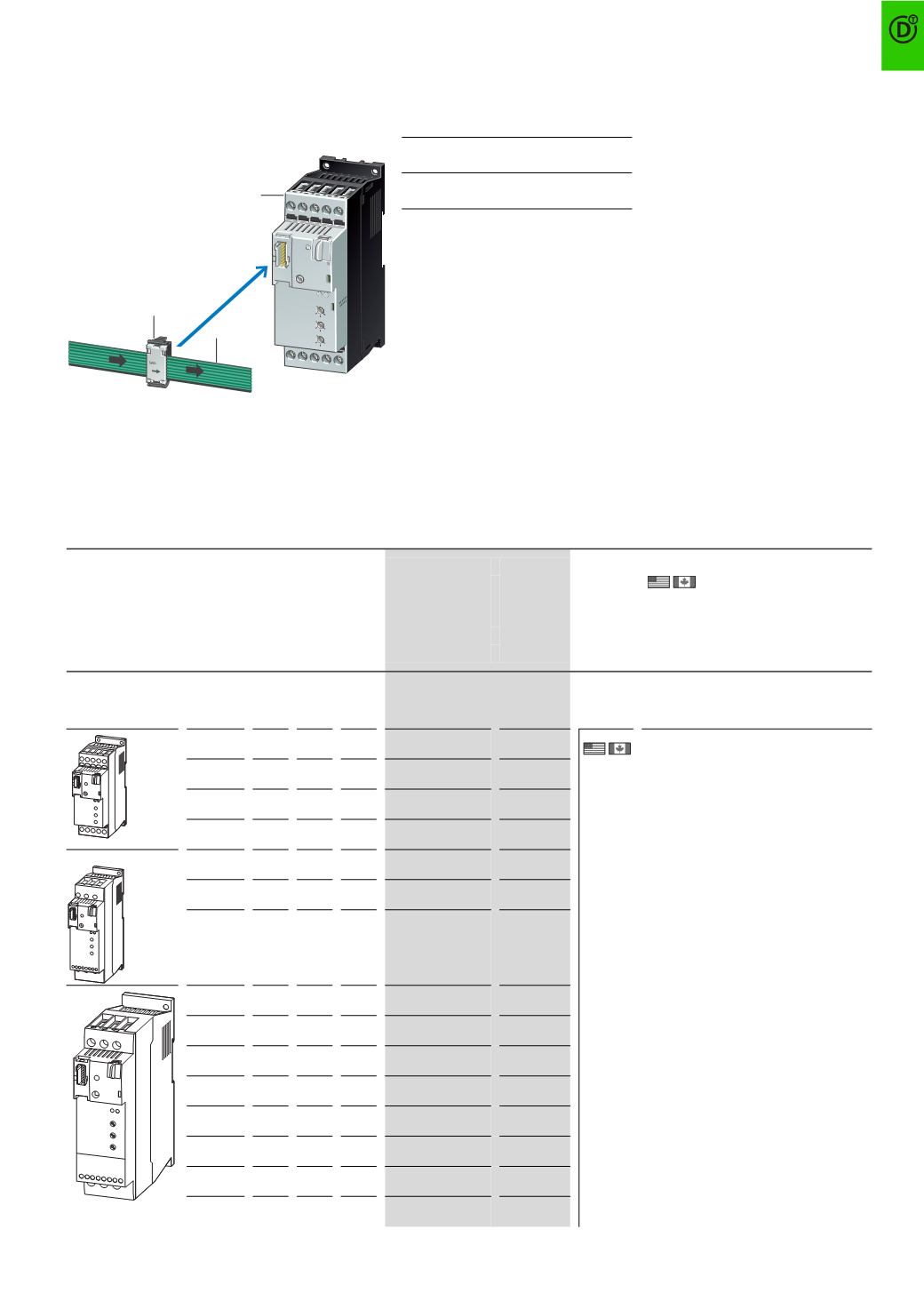

Soft startersSystem overview
3
2
1
HPL01015EN
DS7 smartWire-Darwin soft starters 1
SWD ribbon cable 2
SWD device plug 3
Short description
The DS7-…-D soft starters are designed for
connection to SmartWire-Darwin. These
two-phase-controlled soft starters control
three-phase motors for applications with normal
operating frequency in the 4 to 200 A rating
range (1.5 to 110 kW at 400 V mains voltage).
Due to Eaton’s special control method the true
running behavior of a DS7 can be compared with
that of three-phase soft starters.
SmartWire-Darwin provides a direct connection
to the DS7 without control signal wiring. Through
SmartWire-Darwin the PLC transmits all control
signals directly to the soft starter. The device
data are available for processing in the master
controller without any additional requirements.
The connection with SmartWire-Darwin is fast,
easy, inexpensive and convenient.
Note:
For further details see section “Soft starters”
Ordering
Rated
operational
current
of the soft
starter
Assigned motor rating Part no.
Article no.
Price
See
price list
Std. pack Information relevant for export to North America
400 V 480 V 460 V
Ie P P P
A kW HP HP
Soft starters
Soft starters for three-phase loads, mains supply voltage
230–480 V AC (50/60 Hz)
Rated control circuit voltage Uc: 24 V DC SmartWire-Darwin
4 1.5 2 2 DS7-34DSX004N0-D
134943
1 off Product Standards IEC/EN 60947-4-2;
GB 14048.6; UL 508;
CSA-C22.2 No 0-M91;
CSA-C22.2 No 14-05
CE marking
NA Certification Request filed for UL and
CSA
Suitable for Branch circuits
Max. Voltage Rating 480 V
Degree of Protection IP20; UL/CSA Part no. 1
7 3 3 3 DS7-34DSX007N0-D
134945
9 4 5 5 DS7-34DSX009N0-D
134946
12 5.5 7.5 7.5 DS7-34DSX012N0-D
134947
16 7.5 10 10 DS7-34DSX016N0-D
134948
24 11 15 15 DS7-34DSX024N0-D
134949
32 15 20 20 DS7-34DSX032N0-D
134950
41 22 30 30 DS7-34DSX041N0-D
134952
55 30 40 40 DS7-34DSX055N0-D
134953
70 37 50 50 DS7-34DSX070N0-D
134954
81 45 60 60 DS7-34DSX081N0-D
134955
100 55 75 75 DS7-34DSX100N0-D
134956
135 75 100 100 DS7-34DSX135N0-D
134957
160 90 125 125 DS7-34DSX160N0-D
134958
200 110 150 150 DS7-34DSX200N0-D
134959
