Darwin Technology
SWD contactor modules, SWD PKE module
2010
CA08103002Z-EN
www.eaton.com1/11

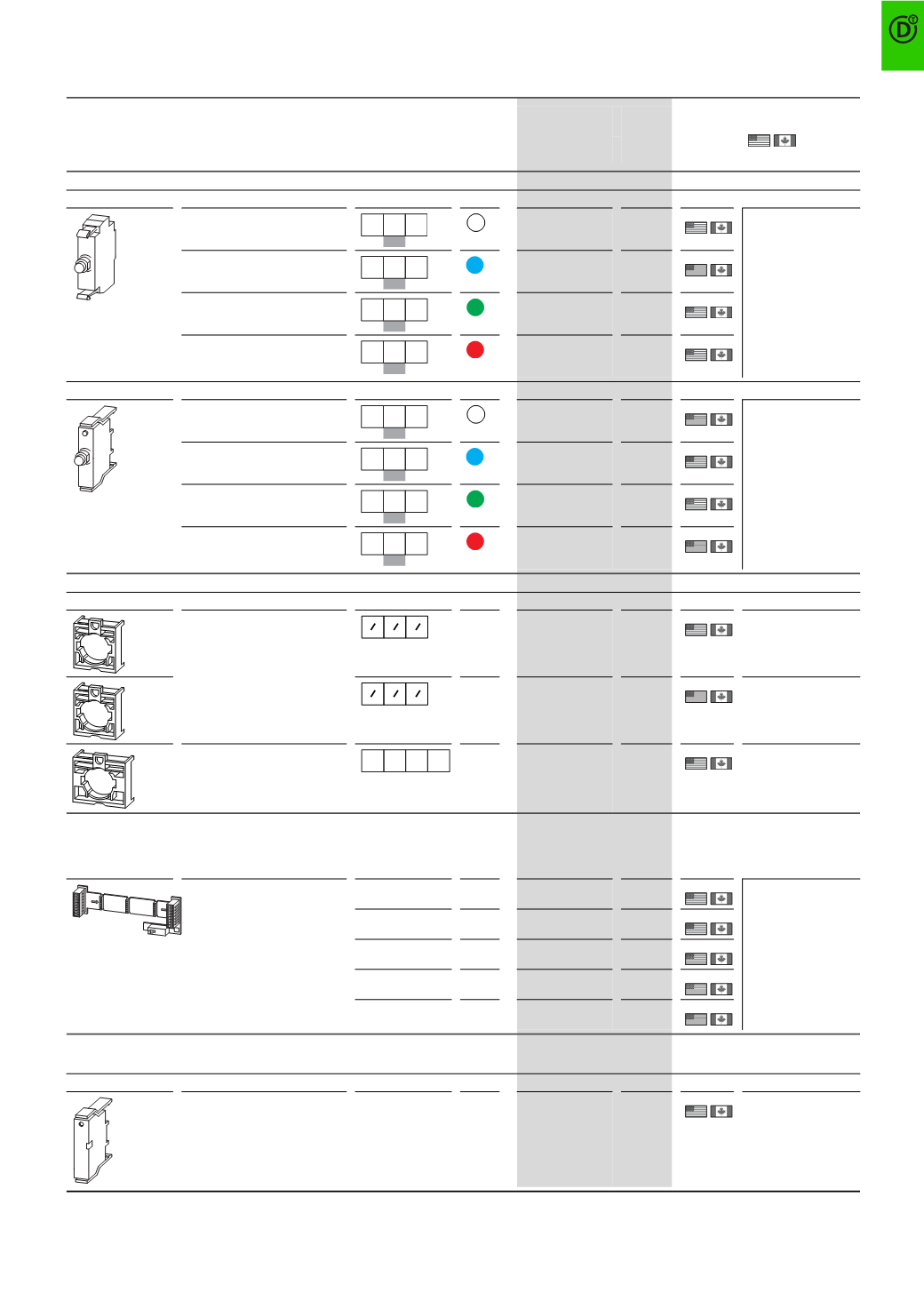

SWD contactor modules, SWD PKE module
Configuration
Color
LED
Part no.
Article no.
Price
See price
list
Std. pack
Information relevant for
export to North America
LED elements
Front fixing
M22-SWD-LED-W
115966
20
off
NA Certification
Request filed for UL
and CSA
UL/CSA approval
applied for.
M22-SWD-LED-B
115967
20
off
M22-SWD-LED-G
115968
20
off
M22-SWD-LED-R
115969
20
off
Base fixing
M22-SWD-LEDC-W
115997
20
off
NA Certification
Request filed for UL
and CSA
UL/CSA approval
applied for.
M22-SWD-LEDC-B
115998
20
off
M22-SWD-LEDC-G
115999
20
off
M22-SWD-LEDC-R
116000
20
off
Fixing adapters
Front fixing
For 1 function element
M22-SWD-K… or LED element
M22-SWD-LED…
In addition 1 or 2 contact elements
M22-K.. possible.
Sequence number on fixing
adapter.
M22-A
216374
50
off
UL/CSA certification not
required
M22-A-GVP
216375
500
off
UL/CSA certification not
required
For 2 function elements
M22-SWD-K22...
For use with M22-WR4,
-
WRJ4, -D4 in conjunction
with M22-(SWD)-K
M22-SWD-A4
116016
10
off
NA Certification
Request filed for UL
and CSA
UL/CSA approval
applied for.
Printed circuit boards
PCBs for surface mounting enclosure M22-I.. for mounting base function elements
M22-SWD...K.
Integrated, connectable SWD network terminator
Number of mounting locations:
1
M22-SWD-I1-LP01
115990
1
off
NA Certification
Request filed for UL
and CSA
UL/CSA approval
applied for.
2
M22-SWD-I2-LP01
115991
1
off
3
M22-SWD-I3-LP01
115992
1
off
4
M22-SWD-I4-LP01
115993
1
off
6
M22-SWD-I6-LP01
115994
1
off
Link
Bridging of open mounting locations on M22-SWD-I...-LP01 PCB
Base fixing
M22-SWD-SEL8-10
116698
5
off
NA Certification
Request filed for UL
and CSA
UL/CSA approval
applied for.
Notes
SWD LED elements can be combined with RMQ-Titan indication elements M22... ￫Chapter "Control circuit devices"
