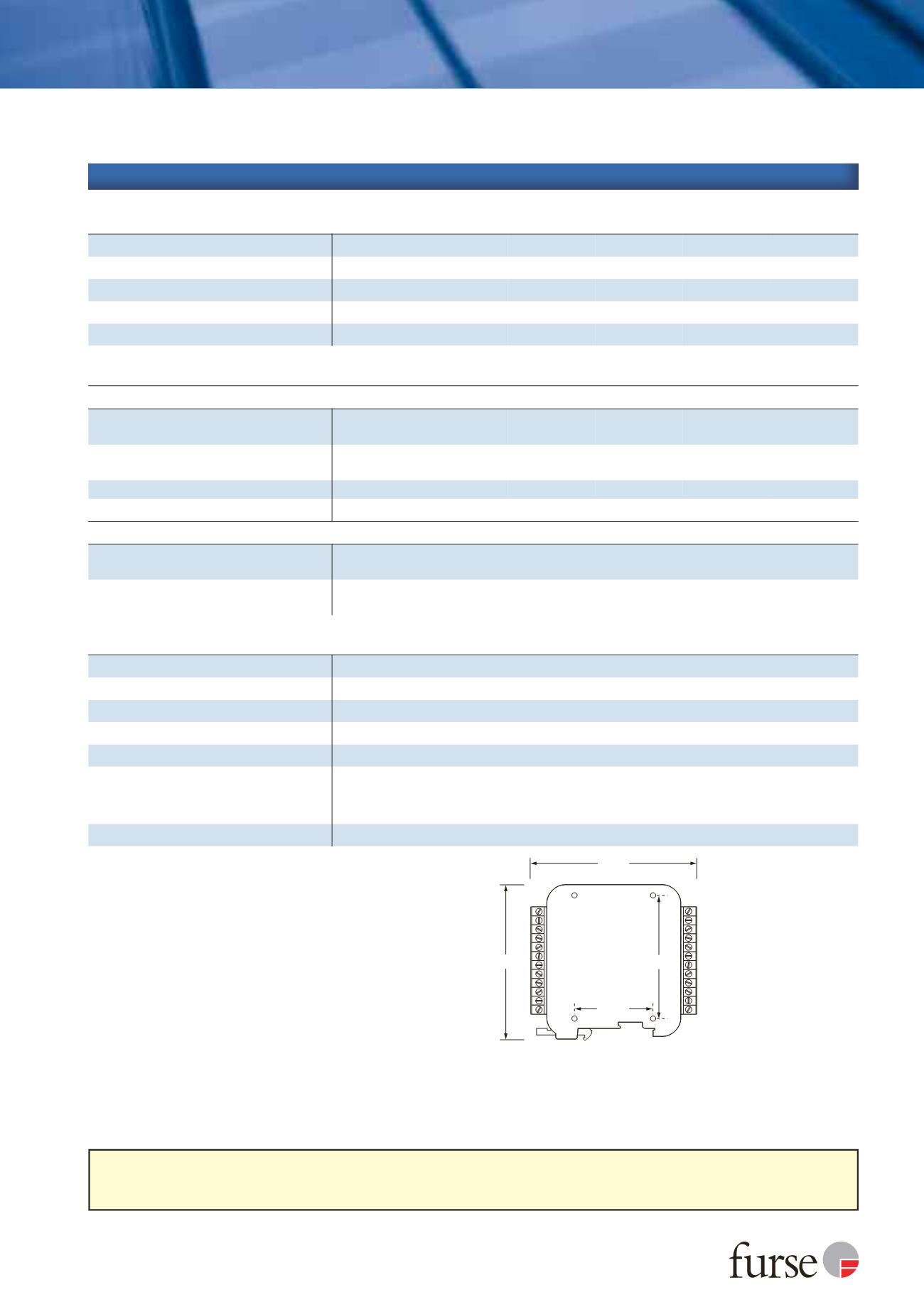

ESP Q & TNQ Series
Technical specification
The ESP Q Series is also available for protection of RS 485 and RTD applications (ESP RS485Q, ESP RTDQ). Protectors for individual data and signal
lines are available (ESP D Series and Slim Line ESP SL Series), or ready-boxed to IP66 (ESP **D/BX etc). Alternatively, for individual protectors with
higher current or bandwidth use the ESP E and ESP H Series.
95 mm
69 mm
42 mm
M3 clearance
Depth: 18 mm
87 mm
1 Nominal voltage (DC or AC peak) measured at < 5 µA
(ESP 15Q, ESP 30Q, ESP 50Q, ESP 110Q) and < 200 µA
(ESP 06Q).
2 Maximum working voltage (DC or AC peak) measured at
< 5 mA leakage (ESP 15Q, ESP 30Q, ESP 50Q, ESP 110Q) and
< 10 µA (ESP TNQ).
3 The maximum transient voltage let-through of the protector
throughout the test (±10%), line to line & line to earth,
both polarities. Response time < 10 ns.
4 Test to IEC 61000-4-5:2006, ITU-T (formerly CCITT) K.20,
K.21 and K.45,Telcordia GR-1089-CORE, Issue 2:2002,
ANSI TIA/EIA/IS-968-A:2002 (formerly FCC Part 68).
Electrical specification ESP 06Q ESP 15Q ESP 30Q ESP 50Q ESP 110Q ESP TNQ
Nominal voltage 1 6 V 15 V 30 V 50 V 110 V -
Maximum working voltage Uc2 7.79 V 18.8 V 37.8 V 57.8 V 132 V 296 V
Current rating (signal) 750 mA 750 mA 750 mA 750 mA 750 mA 300 mA
In-line resistance (per line ±10%) 1.0 Ω 1.0 Ω 1.0 Ω 1.0 Ω 1.0 Ω 4.3 Ω
Bandwidth (-3 dB 50 Ω system) 1 MHz 2.5 MHz 6 MHz 5 MHz 15 MHz 20 MHz
Transient specification ESP 06Q ESP 15Q ESP 30Q ESP 50Q ESP 110Q ESP TNQ
Let-through voltage (all conductors)3 Up
C2 test 4 kV 1.2/50 µs, 2 kA 8/20 µs to
BS EN/EN/IEC 61643-21
15.0 V 28.0 V 53.0 V 84.0 V 188 V 395 V
C1 test 1 kV, 1.2/50 µs, 0.5 kA 8/20 µs to
BS EN/EN/IEC 61643-21
12.5 V 26.5 V 48.0 V 76.0 V 175 V 390 V
B2 test 4 kV 10/700 µs to BS EN/EN/IEC 61643-21 10.0 V 23.0 V 43.5 V 64.5 V 145 V 298 V
5 kV, 10/700 µs4 10.8 V 26.2 V 44.3 V 65.8 V 150 V 300 V
Maximum surge current
D1 test 10/350 µs to - per signal wire
BS EN/EN/IEC 61643-21 - per pair
2.5 kA
5 kA
8/20 µs to ITU-T K.45:2003, - per signal wire
IEEE C62.41.2:2002 - per pair
10 kA
20 kA
Mechanical specification ESP 06Q ESP 15Q ESP 30Q ESP 50Q ESP 110Q ESP TNQ
Temperature range -40 to +80 ºC
Connection type Pluggable 12 way screw terminal
Conductor size (stranded) 2.5 mm2
Earth connection Via DIN rail or M5 threaded hole in base of unit
Case material ABS UL94 V-0
Weight - unit 0.1 kg
Weight - packaged (each) 0.12 kg
Weight - packaged (per 10) 1.3 kg
Dimensions
TSC-0912 - 09.10.12
