ESP SL 3-Wire Series
NEW
The ESP SL ‘Slim Line’ Series is also available for protection of 2-wire systems up to 110 V, RS 485, RTD and telecommunication applications
(ESP SL Series, ESP SL RS485, ESP SL RTD and ESP SL TN). The ESP SL X Series has approvals for use in hazardous areas.
Technical specification
1
Nominal voltage (DC or AC peak) measured at < 10 µA
(ESP SL15/3W, ESP SL30/3W, ESP SL50/3W, ESP SL110/3W)
and < 200 µA (ESP SL06/3W).
2
Maximum working voltage (DC or AC peak) measured at
< 1 mA leakage
3
The maximum transient voltage let-through of the protector
throughout the test (±10%), line to line & line to earth, both
polarities. Response time < 10 ns.
4
Test to IEC 61000-4-5:2006, ITU-T (formerly CCITT) K.20,
K.21 and K.45, Telcordia GR-1089-CORE, Issue 2:2002,
ANSI TIA/EIA/IS-968-A:2002 (formerly FCC Part 68).
Electrical specification
ESP SL06/3W ESP SL15/3W ESP SL30/3W ESP SL50/3W ESP SL110/3W
Nominal voltage
1
6 V
15 V
30 V
50 V
110 V
Maximum working voltage
U
c
2
7.79 V
16.7 V
36.7 V
56.7 V
132 V
Current rating
(signal)
500 mA
In-line resistance
(per line ±10%)
1.0
Ω
Bandwidth
(-3 dB 50
Ω
system)
45 MHz
Transient specification
ESP SL06/3W ESP SL15/3W ESP SL30/3W ESP SL50/3W ESP SL110/3W
Let-through voltage
(all conductors)
3
U
p
C2 test 4 kV 1.2/50 µs, 2 kA 8/20 µs to
BS EN/EN/IEC 61643-21
36.0 V
38.4 V
63.0 V
90.3 V
185 V
C1 test 1 kV, 1.2/50 µs, 0.5 kA 8/20 µs to
BS EN/EN/IEC 61643-21
26.2 V
29.4 V
51.3 V
77.2 V
175 V
B2 test 4 kV 10/700 µs to BS EN/EN/IEC 61643-21
16.0 V
26.8 V
45.4 V
68.3 V
165 V
5 kV, 10/700 µs
4
17.0 V
27.5 V
46.3 V
69.1 V
170 V
Maximum surge current
D1 test 10/350 µs to
- per signal wire
BS EN/EN/IEC 61643-21
- per pair
1.25 kA
2.5 kA
8/20 µs to ITU-T K.45:2003, - per signal wire
IEEE C62.41.2:2002
- per pair
10 kA
20 kA
Mechanical specification
ESP SL06/3W ESP SL15/3W ESP SL30/3W ESP SL50/3W ESP SL110/3W
Temperature range
-40 to +80 ºC
Connection type
Screw terminal
Conductor size
(stranded)
4 mm
2
Earth connection
Via DIN rail or 4 mm
2
earth terminal
Case material
FR polycarbonate UL94 V-0
Weight -
unit
0.08 kg
Weight
-
packaged (per 10)
0.85 kg

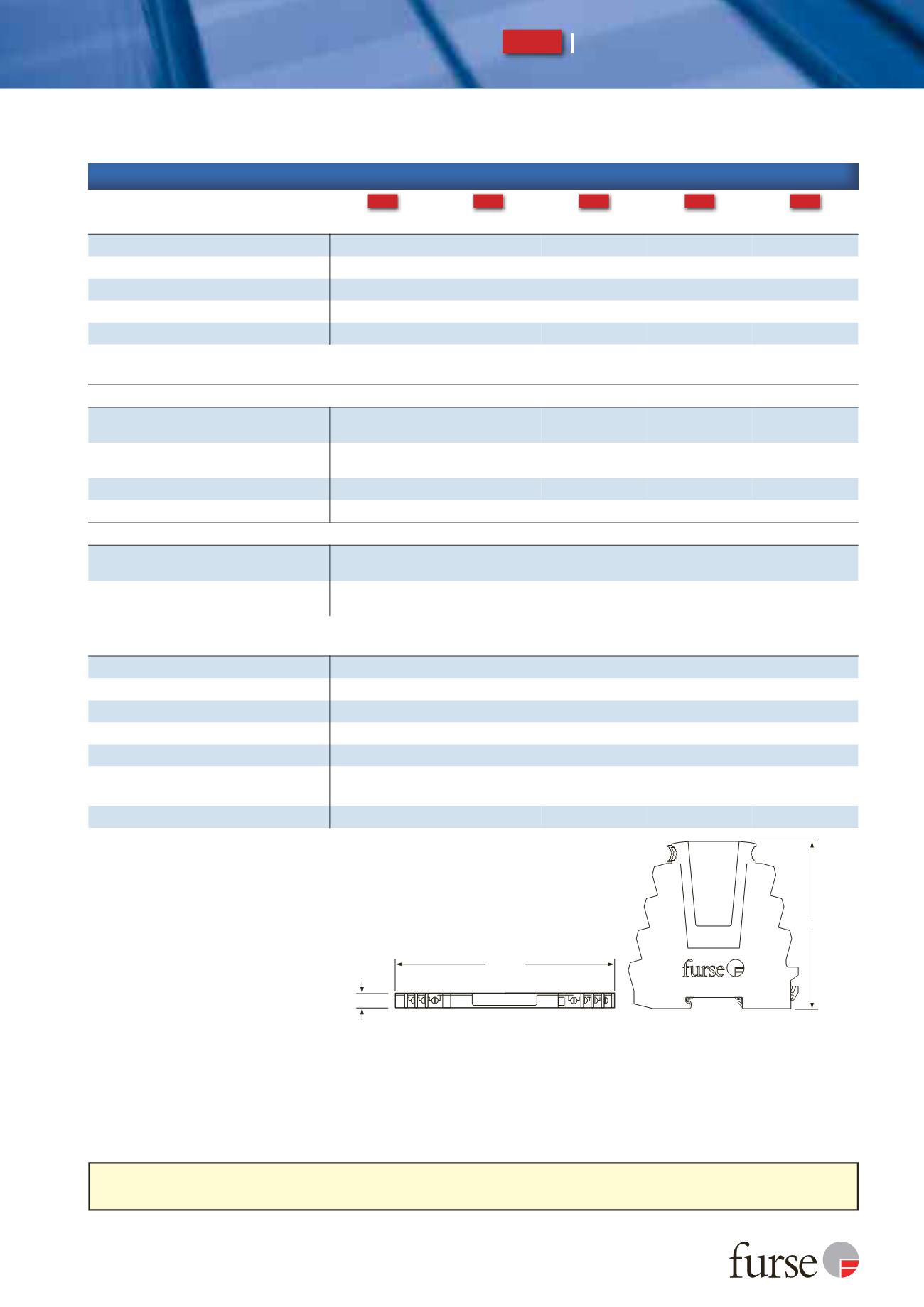

Dimensions
7 mm
104.6 mm
106.5 mm
2 S 1
2 S
E
1
