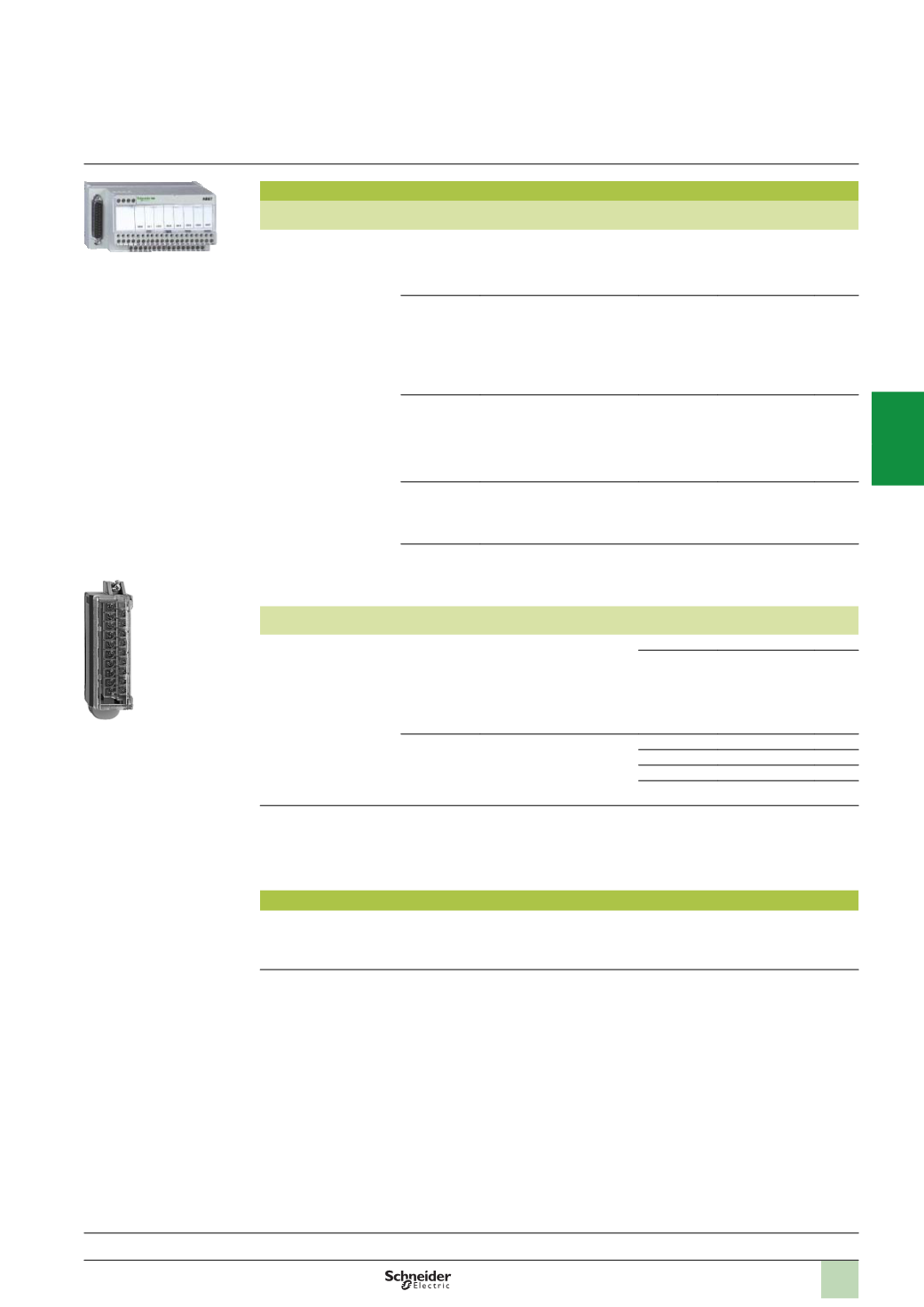

59 / 413
3/17
References
(
continued)
Connection accessories
Description
Compatible
with module
Use
Type of
terminal block
Reference
Weight
kg
Modicon Telefast ABE 7
sub-bases
TSX AEY 800
TSX AEY 810
TSX AEY 1600
TSX ASY 800
(1)
Distribution of 8 channels on
screw terminals
Screw
ABE 7CPA02
0.290
TSX AEY 420
TSX AEY 800
TSX AEY 1600
Distribution of 8 channels with
common point on screw
terminals, protected sensor
power supply, continuity of
current loops during
disconnection, protection
against overvoltages
Screw
ABE 7CPA03
0.330
TSX AEY 810 Distribution of 8 isolated
channels on screw terminals,
channel by channel sensor
power supply (without common
point), protection against
overvoltages
Screw
ABE 7CPA31
0.410
TSX AEY 1614 Distribution of 16 channels on
screw terminals, integrated
temperature probe for external
cold junction compensation
Screw
ABE 7CPA12
0.360
TSX AEY 420
TSX ASY 410
(2)
Distribution of 4 channels on
screw terminals
Screw
ABE 7CPA21
0.200
Description
Compatible
with module
Use
Length
Reference
Weight
kg
Connecting cables
TSX AEY 420
TSX AEY 800
TSX AEY 810
TSX AEY 1600
TSX AEY 1614
(3)
TSX ASY 800
Link between 25-way SUB-D
connectors on analog I/O
modules and ABE 7CPA
pp
sub-bases
3
m
TSX CAP 030
0.670
10
m
TSX CAP 100
1.120
TSX ASY 410 Link between module and
ABE 7CPA21 sub-bases
(4)
1.5
m
ABF Y25S150
0.500
2
m
ABF Y25S200
0.560
3
m
ABF Y25S300
0.740
5
m
ABF Y25S500
0.920
20-
way removable screw
terminal block
TSX AEY 414
TSX ASY 410
To be ordered separately with
each I/O module with screw
terminal block connection
Screw
TSX BLY 01
0.100
Replacement part
Set of 4 resistors
250
TSX AEY 414 Adaptation for current range
(
resistors supplied with
TSX AEY 414 module)
–
TSX AAK2
0.020
(1)
Can be used with
TSX AEY 420
module.
(2)
Can be used with
TSX ASY 410
module by using
ABF Y25S
pp
0
p
cables.
(3)
Requires the use of two
TSX CAP 030
cables for connection to the
ABE 7CPA12
sub-base.
(4)
Includes the
TSX BLY 01
20-
way removable screw terminal block.
Modicon Premium automation
platform
0
Analog I/O modules
TSX BLY 01
ABE7CPA0
p
Presentation:
page 3/14
Functions:
pages 3/14 ...
