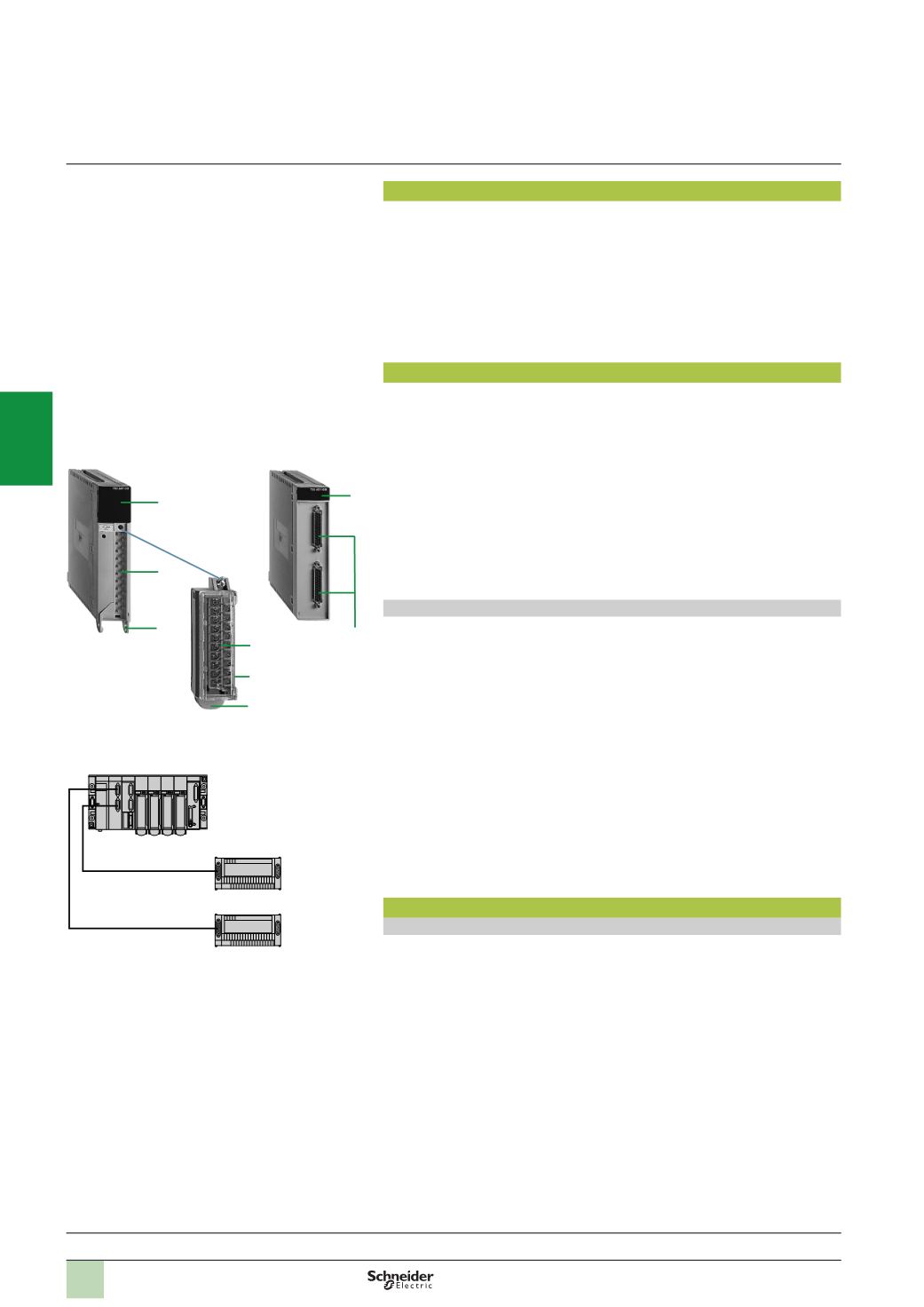

Presentation
Analog I/O modules for Modicon Premium PLCs are equipped with:
b
Either a 25-way SUB-D connector (
TSX AEY 420/800/810
and
TSX ASY 800
)
b
Or two 25-way SUB-D connectors (
TSX AEY 1600/1614
)
b
Or a screw terminal block (
TSX AEY 414
,
TSX ASY 410
)
They can be installed in any position in
TSX RKY
ppp
racks, except for the positions
reserved for power supply modules. The analog I/O modules are hot-swappable.
In a Premium PLC configuration, the maximum number of analog channels
(12…512
channels) depends on the CPU used (see pages 1/10 and 1/19).
Description
TSX AEY/ASY
analog I/O modules feature the following on the front panel:
1
A display and module diagnostics block
2
A connector which takes the removable screw terminal block
3
A rotating support containing the module locating device
4
A removable screw terminal block for connecting the I/O directly to the sensors
and preactuators
TSX BLY 01
(
to be ordered separately)
5
A pivoting cover for accessing the terminal block screws and holding the
identification label
6
A rotating support containing the module locating device
7
25-
way SUB-D connector(s) for connecting the sensors
Note:
TSX ASY 800
module. This module also has a screw terminal block for connecting the
external 24 VR on the front panel (see page 3/16).
Connecting TSX AEY/ASY modules with SUB-D connectors
Using the Modicon Telefast ABE 7 pre-wired system makes it easier to install the
modules by providing access to the inputs (or outputs) via screw terminals.
Connection is via a
TSX CAP 030
/
100
3/10
long shielded cable equipped with
SUB-D connectors at either end.
The
ABE 7CPA02
Telefast sub-base enables the connection of 8 channels
The
ABE 7CPA03/31
Telefast sub-base enables:
b
Connection of 8 channels and the channel by channel supply of 2 and 4-wire
sensors with 24 V
c
(
for the
ABE 7CPA03
sub-base)
b
Connection of 8 channels and the channel by channel isolated supply of 2 and
4-
wire sensors with 24 V
c
(
for the
ABE 7CPA31
sub-base)
b
Ensures continuity of the current loops when the SUB-D connector is removed
b
Protects the current shunts in the modules against overvoltages
The
ABE 7CPA12
Telefast sub-base enables 16 thermocouples to be connected,
with 2
TSX CAP 030
/
100
cables. The terminal block is equipped with a temperature
probe for cold junction compensation.
Functions
TSX AEY 420/800/810/1600 analog input modules
TSX AEY
ppp
modules are high level analog input modules with 4 inputs for the
TSX AEY 420
module, 8 inputs for the
TSX AEY 800
/
810
modules and 16 inputs for
the
TSX AEY 1600
module.
Used with sensors or transmitters, they perform monitoring, measurement and
process control functions for continuous processes.
Depending on the choice made during configuration, the following ranges are
available for each of the inputs on the
TSX AEY 420
/
800
/
810
/
1600
modules: ± 10 V,
0…10
V, 0…5 V, 1…5 V, 0…20 mA, 4…20 mA.
Presentation,
description,
functions
4
5
6
7
1
Connection by
SUB-D connector
Connection by screw
terminal block
1
2
3
Modicon Premium automation
platform
0
Analog I/O modules
ÐÐ++
GND
GND
N1
N1
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
ÐÐ++
GND
GND
N1
N1
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
Premium
(
expansion rack)
ABE 7CPA02
ABE 7CPA03/31
TSX CAP 030
TSX CAP 030
Functions:
pages 3/14 ...
References:
pages 3/16 ...
2
1
3
4
5
6
7
8
9
10
