Presentation
TeSys Quickfit is a modular system which standardizes and simplifies the setting up
of motor starters with its pre-wired control and power circuits.
The installation of a motor starter is therefore a quick, easy, reliable and open-ended
process.
In addition, this system:
b
Enables the motor starter to be customized at a later date
b
Reduces maintenance time
b
Saves space inside the equipment by reducing the number of terminals,
cable ducts and intermediate interfaces
System for motor starters with spring terminals
Motor starters with TeSys GV2 ME circuit-breakers
b
From 0 to 18 Amaximum
b
TeSys GV2 ME circuit-breakers combined with TeSys D contactors from 9 to 25 A
(
spring terminal version)
b
Quickfit pre-wired power and control connections
Motor starters with TeSys GV3 P circuit-breakers
b
From 9 to 65 Amaximum
b
TeSys GV3 P circuit-breakers combined with TeSys D contactors from 40 to 65 A
(
spring terminal version)
b
Quickfit pre-wired control connections only
b
For pre-wired power connections, use the busbars from the TeSys D 40 to 65 A
contactor range (see the “Protection and power control” catalogue)
This range comprises pre-wiring components for
b
The power circuits
b
The control circuits
Power circuit pre-wiring components
(
motor starters with TeSys GV2 circuit-breakers only)
b
A power circuit connection kit
comprising, for each starter, a plate for mounting
the contactor and the circuit-breaker, and two power connection modules
b
A power splitter box
for 2 or 4 starters
b
Fixed terminals
for connecting a power supply up to 60 A (16 mm
2
)
b
Removable terminals
for connecting the motor power supply cables and the
earth cables (6 mm
2
)
Note
:
With GV3 circuit-breakers, no accessories are required for pre-wiring the
power circuit. The terminals on the GV3 P
pp
are removable.
This circuit-breaker is also sold with a single terminal block (reference: GV3 P
pp
1).
Control circuit pre-wiring components
(
motor starters with TeSys GV2 and GV3 circuit-breakers)
b
A control circuit connection module
which is mounted directly on the contactor
and the circuit-breaker on each starter. This module incorporates the status and
control data for this motor starter.
b
A parallel wiring module
which concentrates data from each motor starter:
v
HE 10
connector, for centralized applications. Data is transmitted to the PLC via
the Modicon Telefast pre-wired system.
v
STB
,
designed for decentralized automation architectures. This module is suitable
for use in a Modicon STB configuration for connection to the PLC via a fieldbus.

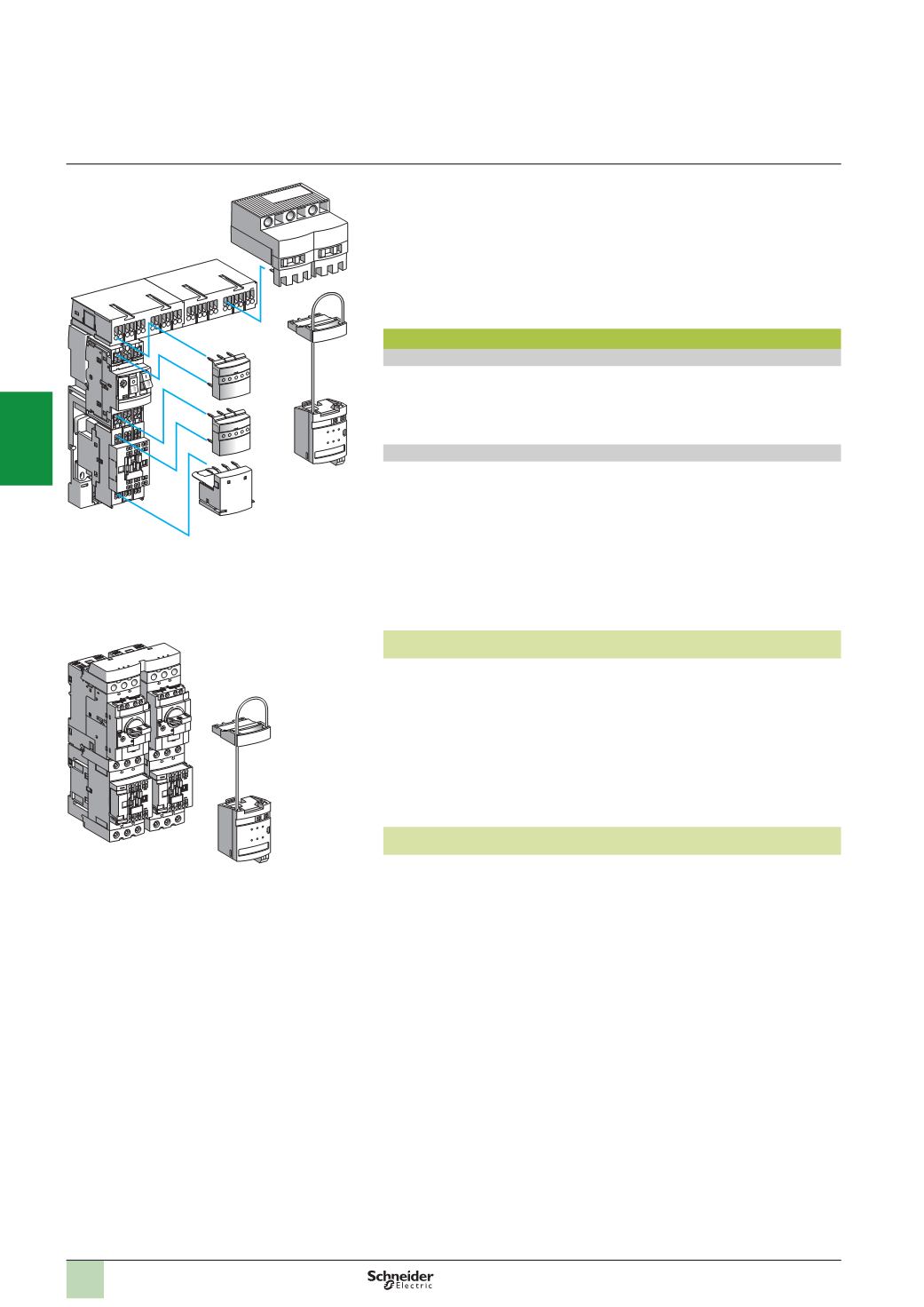

Motor starter with GV2 ME circuit-breakers
Motor starter with GV3 P circuit-breakers
Installation system
TeSys Quickfit for motor starter
components
Components with spring terminals
