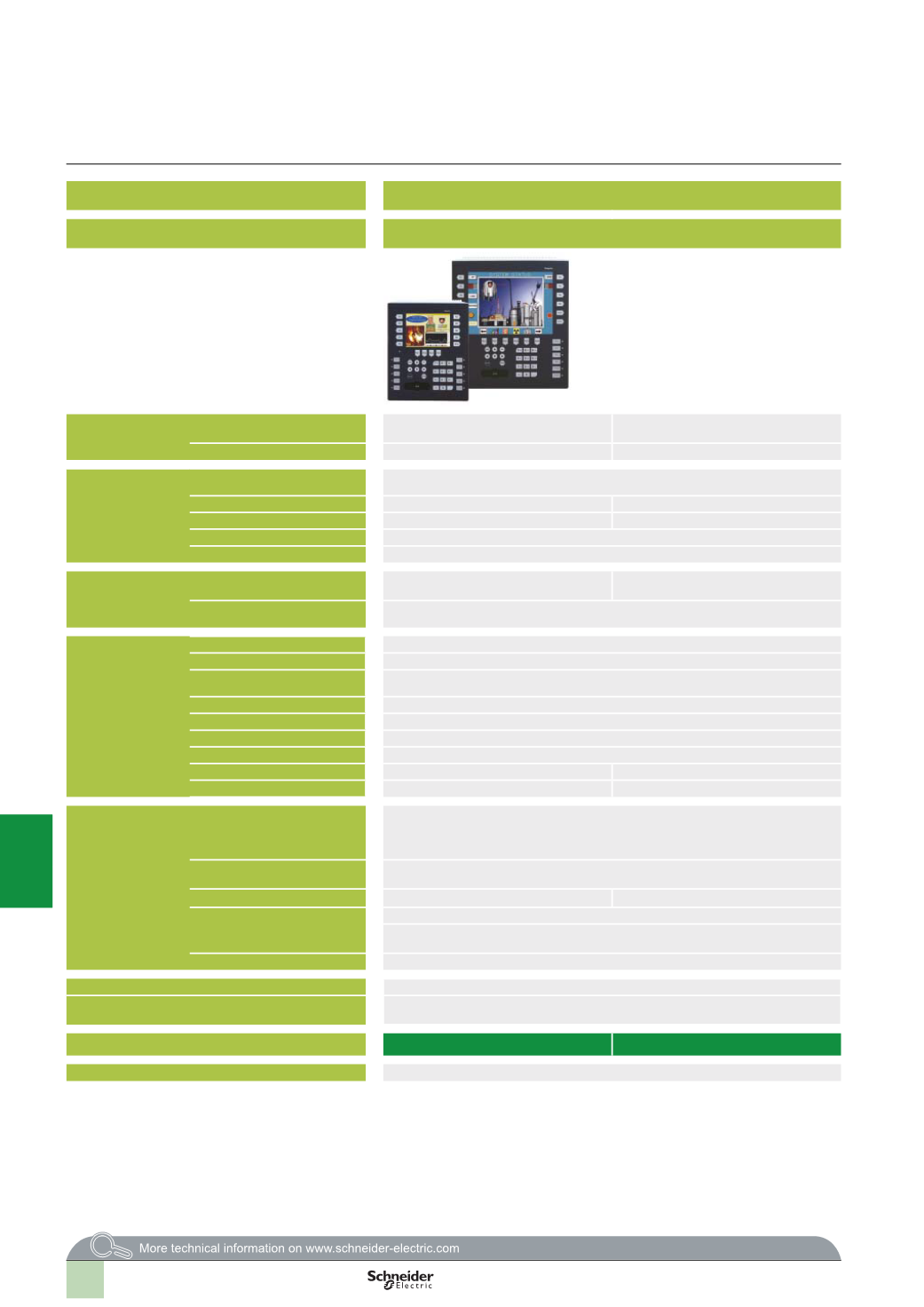

Selection guide
(
continued)
Operator dialogue terminals
Magelis GT, GK, GH and GTWAdvanced
Panels
Applications
Display of text messages, graphic objects and synoptic views
Control and configuration of data
Type of terminal
Advanced Panels with keypad
Display
Type
Colour TFT LCD
(320
x 240 pixels) or monochrome STN
Colour TFT LCD
(640
x 480 pixels)
Capacity
5.7" (
monochrome or colour)
10.4" (
colour)
Data entry
Via keypad and/or touch screen (configurable) and/or by industrial pointer
Static function keys
10
12
Dynamic function keys
14
18
Service keys
8
Alphanumeric keys
12
Memory capacity
Application
16
MB Flash EPROM
32
MB Flash EPROM
Expansion
By means of 128, 256, 512 MB, 1, 2 or 4 GB CF card
Functions
Maximum number of pages
Limited by capacity of internal Flash EPROM memory or CF card memory
Variables per page
Unlimited (8000 variables max.)
Representation of variables
Alphanumeric, bitmap, bargraph, gauge, tank, tank level indicator, curves, polygon, button,
LED
Recipes
32
groups of 64 recipes comprising 1024 ingredients max.
Curves
Yes, with log
Alarm logs
Yes
Real-time clock
Built-in
Discrete I/O
–
1
input - 3 outputs
Multimedia I/O
–
–
Communication
Downloadable protocols
Uni-TE
(2)
,
Modbus, Modbus TCP/IP
(1)
and for PLC brands: Mitsubishi, Omron,
Allen-Bradley and Siemens
Asynchronous serial link
RS 232C/RS 422/485 (COM1)
RS 485 (COM2)
USB ports
1
2
Bus and networks
Modbus Plus, Fipway with USB gateway, PROFIBUS DP and Device Net with optional card
Ethernet TCP/IP (10BASE-T/100BASE-TX)
Printer link
RS 232C (COM1) serial link, USB port for parallel printer
Development software
Vijeo Designer (on Windows XP, Windows Vista and Windows 7)
Operating system
Magelis
(
CPU 266 MHz RISC)
Type of terminal
XBT GK 21/23
XBT GK 53
Page
Please consult the “Human/Machine Interfaces” catalogue
(1)
Depending on model.
(2)
Uni-TE version V2 for Twido controller and TSX Micro/Premium platform.
