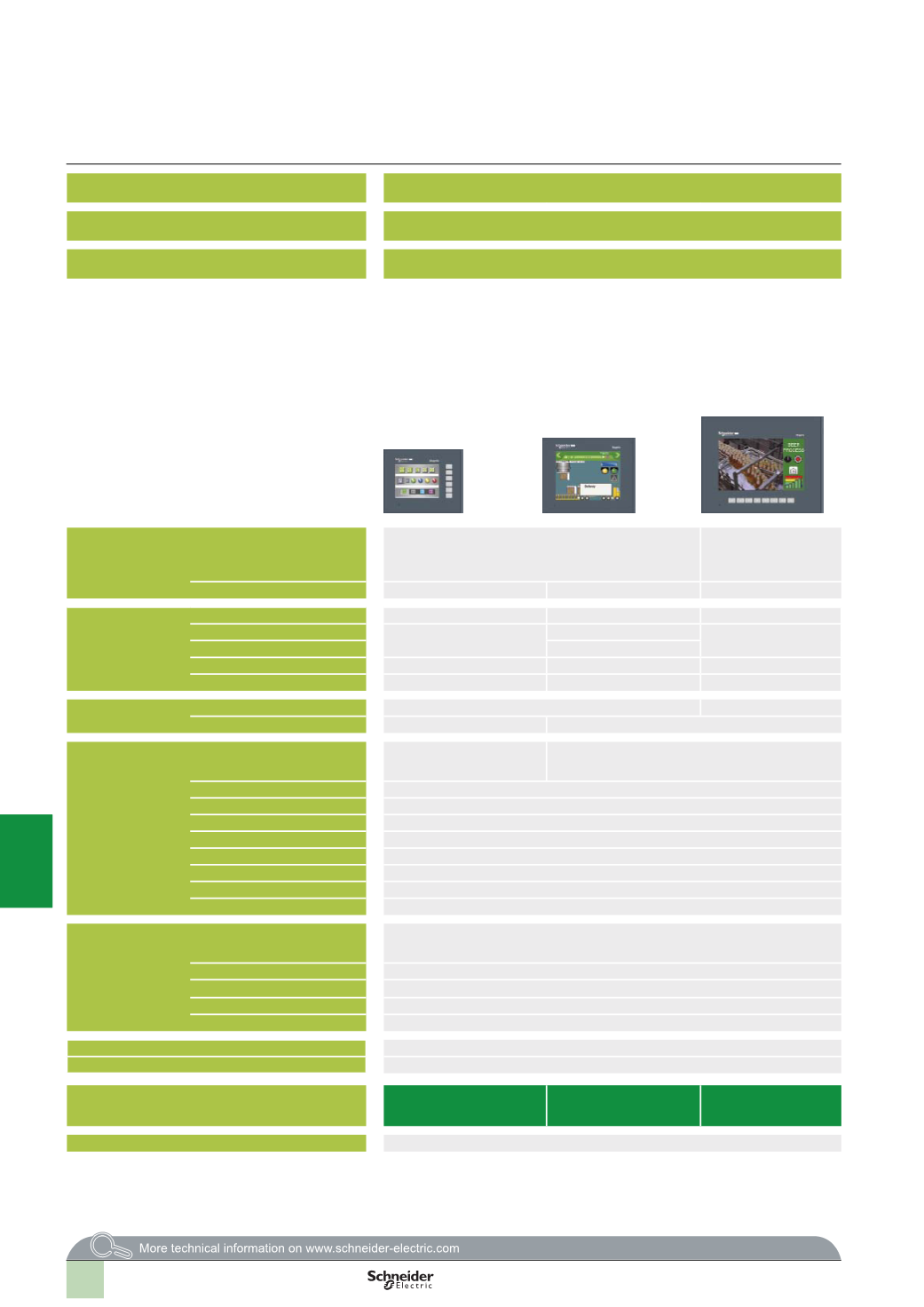

Applications
Display of text messages, graphic objects and synoptic views
Control and configuration of data
Type of terminal
OptimumAdvanced Panels, touch screen
Degree of protection (according to IEC 60529)
IP 65 (IP 67 with addition of a cover)
Display
Type
Colour TFT LCD,
backlit
320
x 240 pixels (QVGA)
Colour TFT LCD,
backlit
800
x 480 pixels (WVGA)
Capacity
3.5”
5.7”
7.0
Wide
Data entry
Via touch screen
Via touch screen
Via touch screen
Static function keys
6
function keys
(
static or dynamic)
–
8
function keys
(
static or dynamic)
Dynamic function keys
–
Service keys
–
–
–
Alphanumeric keys
–
–
–
Memory capacity
Applications
64/96
MB Flash EPROM
(1)
96
MB Flash EPROM
Expansion
–
By 4 GB SD card (except HMI GTO2300)
Functions
Maximum number of pages
Limited by internal Flash
EPROM memory capacity
Limited by capacity of internal Flash EPROM memory
or of SD card
Variables per page
Unlimited (8000 variables max.)
Representation of variables
Alphanumeric, bitmap, bargraph, gauge, tank, tank level indicator, curves, polygon, button, LED
Recipes
32
groups of 64 recipes comprising 1024 ingredients max.
Curves
Yes, with log
Alarm logs
Yes
Real-time clock
Built-in
Discrete I/O
–
Multimedia I/O
–
Communication
Downloadable protocols
Uni-TE
(2)
,
Modbus, Modbus TCP/IP
(1)
and for PLC brands: Mitsubishi, Omron,
Allen-Bradley and Siemens
Asynchronous serial link
RS 232C (COM1) and RS 485 (COM2) except HMI GTO1310: RS 232C/485 (COM1)
USB ports
1
type A host connector + 1 mini-B connector
Buses and networks
Ethernet TCP/IP (10BASE-T/100BASE-TX)
(3)
,
Modbus Plus and Fipway via USB gateway
Printer link
RS 232C (COM1) serial link
(4)
and USB port for parallel printer
Development software
Vijeo Designer (on Windows XP and Windows 7)
Operating system
Magelis (333 MHz RISC CPU)
Type of terminal
HMI GTO1300
HMI GTO1310
HMI GTO2300
HMI GTO2310
HMI GTO3510
Page
Please consult the “OptimumAdvanced Panels, Magelis
TM
GTO” catalogue
(1)
Depending on model.
(2)
Uni-TE version V2 for Twido controller and TSX Micro/Premium platform.
(3)
Except HMI GTO1300 and GTO2300 (Modbus Plus and Fipway via USB gateway only).
(4)
Except HMI GTO1310 (USB port for parallel printer only).
