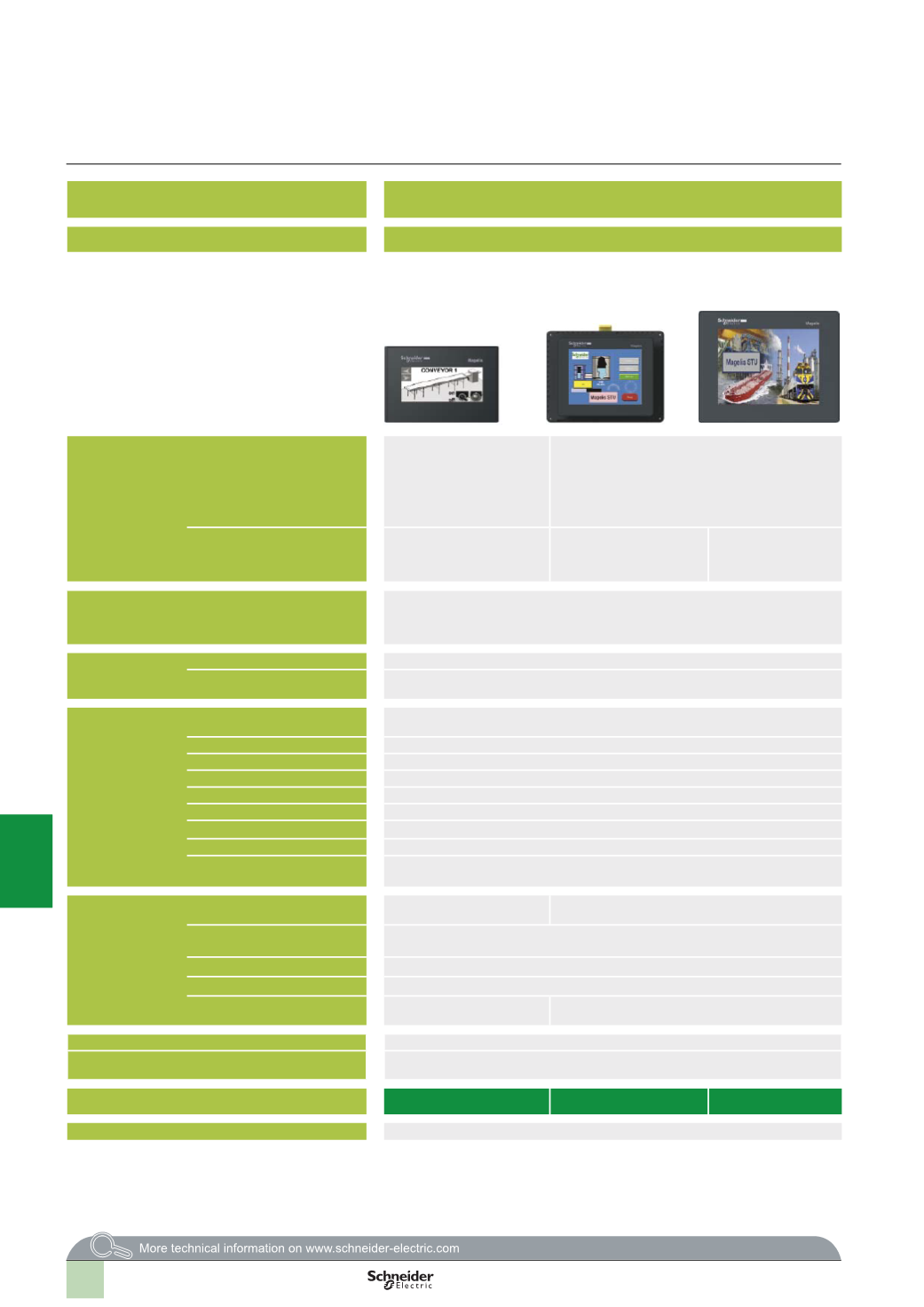

Selection guide
Operator dialogue terminals
Magelis Small Panels
Applications
Display of graphic pages
Type of terminal
Small Panels with touch screen
Display
Type
Monochrome STN LCD
(200
x 80 pixels),
backlit
-
Green, orange and red, or
-
White, pink and red
Colour QVGATFT LCD
(320
x 240 pixels)
Capacity
3.4" (
monochrome)
3.5" (
colour)
5.7" (
colour)
Data entry
Via touch screen
Memory
capacity
Application
16
MB Flash
Expansion
–
Functions
Maximum number of pages
Limited by internal FLASH EPROM memory capacity
Variables per page
Unlimited
Representation of variables
Alphanumeric, bitmap, bargraph, gauge, curves, buttons, LEDs
Recipes
32
groups of 64 recipes
Curves
Yes, with log
Alarm logs
Yes
Real-time clock
Access to the PLC real-time clock
Alarm relay
–
Buzzer
Yes
Communication
Asynchronous serial link
RS 232C/RS 485
(1)
RS 232C using Zelio protocol
(2)
RS 232C/RS 485
Downloadable protocols
Uni-TE, Modbus and for PLC brands: Allen-Bradley, Omron, Mitsubishi, Siemens
Printer link
USB for serial or parallel printer
USB ports
1
host type A and 1 device type mini-B
Networks
1
Ethernet TCP/IP port
(10
BASE-T/100BASE-TX)
(3)
1
Ethernet TCP/IP port (10BASE-T/100BASE-TX)
Development software
Vijeo Designer (on Windows XP, Windows Vista and Windows 7)
Operating system
Magelis
References
HMI STO 5
pp
HMI STU 655
HMI STU 855
Page
Please consult the “Human/Machine Interfaces” catalogue
(1)
Only HMI STO 511/512.
(2)
Only HMI STO 501.
(3)
Only HMI STO 531/532.
