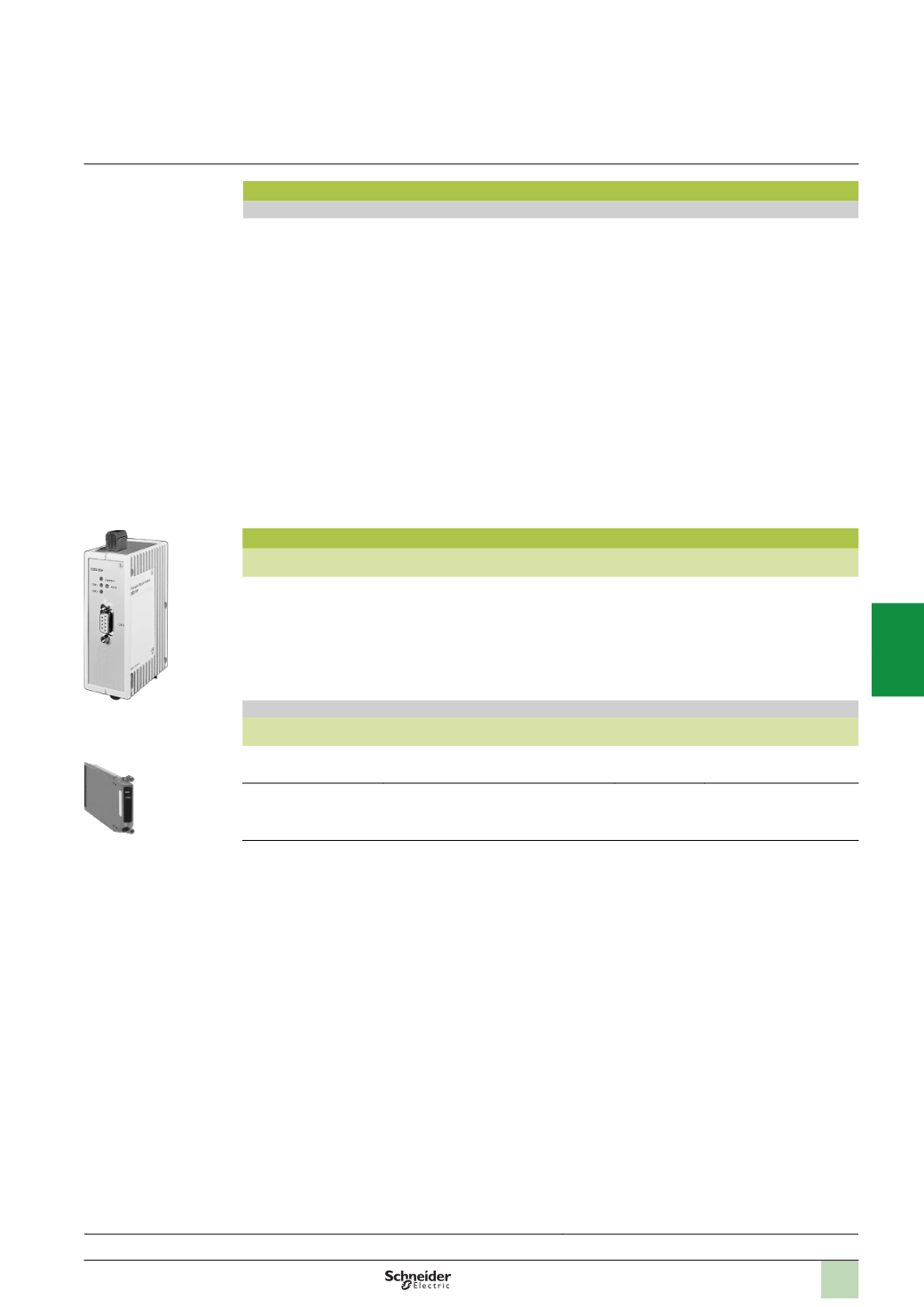

Schneider Electric Modicon Premium Automation Platform, May 2012

243 / 413

5/109
TSX FPP10
Presentation (continued),
references
Modicon Premium automation
platform
Fipio/Fipway optic transceiver
Presentation (continued)
Operating modes and performance
b Fipio bus on fibre optic link
After configuration in Fipio mode, the processor scans the various application devices according to the software
configuration:
v Image variables of the input values and of the output command values of a configured device are scanned as
quickly as possible on the bus, whilst respecting the existing relationships between periods of different tasks which
use these devices.
v The appearance or disappearance of a configured device is detected on the bus within a maximum time of
200 ms.
v Exchanges occur at the rate defined by the programmer, from 10 to 20 Uni-TE messages per second.
v The network cycle time is double that of the electrical bus when OZD FIP G3 transceivers are used.
b Fipway bus on fibre optic link
The operating principle is identical to that on an electrical network, in that the number of stations is limited to 32
and the transmission time is as follows:
v For the Common words and Shared Table services, the entire database is updated every 40 ms
maximum.
v For Uni-TE message handling, the network characteristics allow transmission of a maximum of
230 messages of 128 bytes per second.
References
Description Max. number of
transceivers
Fipio bus connectable
devices
Fipway network Reference Weight
kg
Fipio/Fipway optic
transceiver (1)
32 with Fipio
20 with Fipway
-TSX Micro/Premium ( with
TSX FPP10 PCMCIA card)
-Modicon STB distributed I/O
-Momentum distributed I/O
-Magelis XBT Gpterminals
-Magelis iPC industrial PCs
-Altivar 71/61 variable speed
drives
-Lexium 15 servo drives, etc.
TSX Micro,
Premium
(with PCMCIA
TSX FPP OZD200
card)
OZD FIP G3 0.500
TSX Micro/Premium connection components (2)
Description Use Composition Reference Weight
kg
Fipway card TSX Micro TSX 37 21/22 PLC
Premium processor
1 type III
PCMCIA card
TSX FPP OZD200 0.110
Fipio card
agent function
TSX Micro TSX 37 21/22 PLC
Premium processor
1 type III
PCMCIA card
TSX FPP10 0.110
(1) For elctrical/fibre optic repeater TSX FPACC8M, see page 5/112.
(2) For accessories and connecting cables, see pages 5/112 and 5/113.
OZD FIP G3
Presentation :
page 5/108
