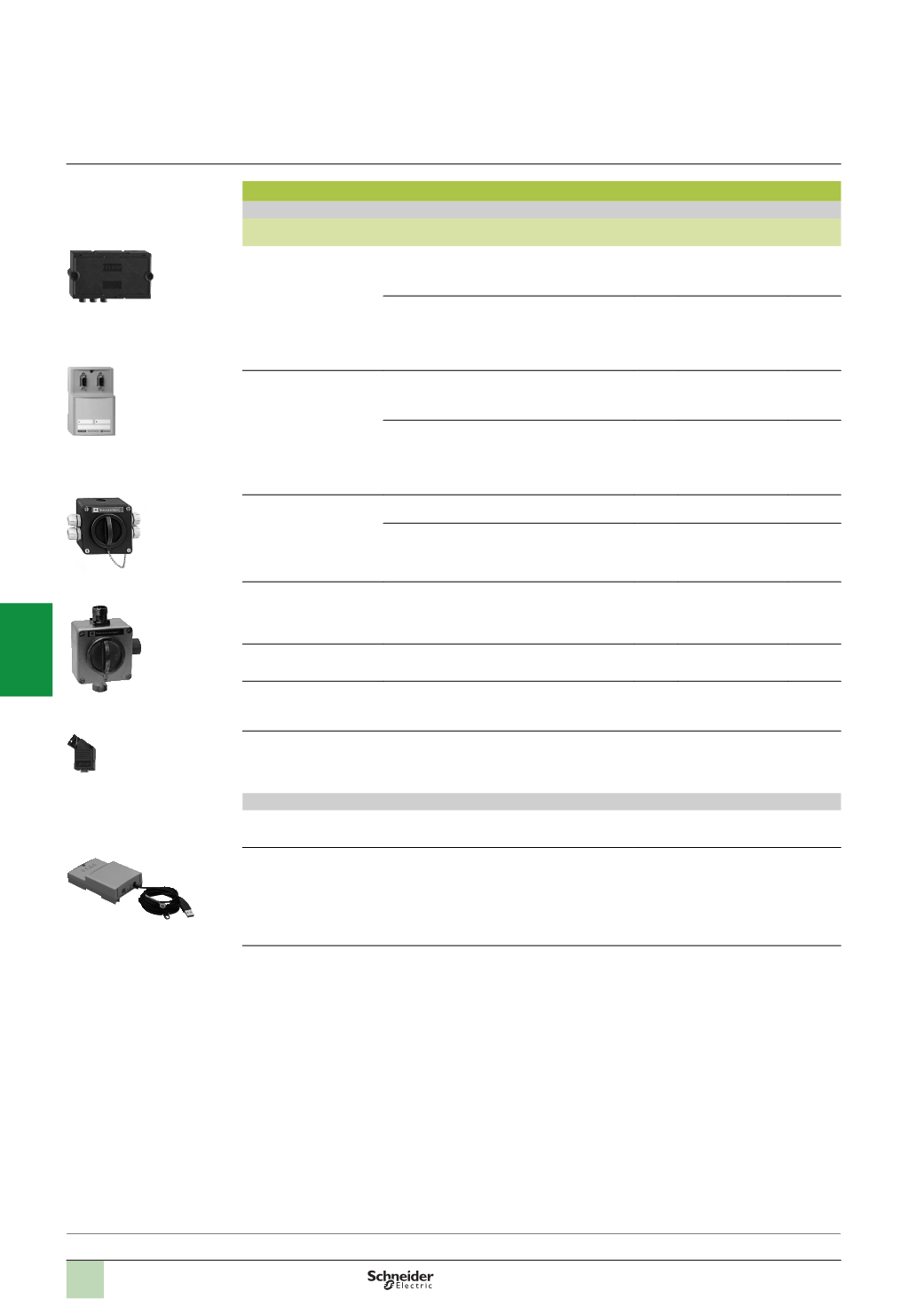

Modicon Premium automation
platform
Fipio bus and Fipway network
References
References
Fipio bus
/
Fipway network connection accessories
(1)
Description
Use
No.
Reference
Weight
kg
Insulated bus connection
boxes
(
polycarbonate, IP 20)
Trunk cable tap link (for connecting the 24 V
c
power supply of IP 67 TBX modules)
6
TSX FPACC14
0.120
Trunk cable tap link, supports
2
x 9-way female SUB-D connectors
(
for TSX FP CG010/030 PCMCIA card cable)
Connects the 24 V
c
power supply of dust and
damp proof TBX modules
7
TSX FPACC3
0.090
Dust and damp proof bus
connection boxes
(
zamac, IP 65)
Trunk cable tap link, supports
1
x 9-way female SUB-D connector
(
for TSX FP CG010/030 cable)
8
TSX FPACC4
0.660
Trunk cable tap link via 2 M23 connectors
Distribution of remote 24 V
c
power supply via 7/8”
connector
Connection of compatible PC via 9-way female
SUB-D connector
–
TSX EF ACC99
0.715
Female connector
for
devices with 9-way male
SUB-D connector
Black IP 20 polycarbonate connector
Connection by daisy-chaining or tap link
9
TSX FPACC12
0.040
Zamac connector, for TSX 17 20 PLC
(
legacy range)
Connection by daisy-chaining or tap link
9
TSX FPACC2
0.080
Line terminators
2
impedance adaptors
Sold in lots of 2
14
TSX FPACC7
0.020
Electrical repeater
(
IP 65)
Increases the length of the network or bus by allowing
the connection of 2 segments of up to 1000 m each
12
TSX FPACC6
0.520
Electrical/fibre optic
repeater
(
IP 65)
For connecting (via patch panel) an electrical
segment (1000 m max.) and a fibre optic segment
(3000
m max.)
13
TSX FPACC8M
0.620
FIP wiring test tool
For testing each cable segment of a network
–
TSX FPACC9
0.050
Fipio/Fipway communication cards and adaptor
PCMCIA cards
Type III cards for Premium/TSX Micro PLCs
–
See pages 5/107 and 5/105
USB/Fipio-Fipway adaptor
For connecting any device with a USB port to
Fipio/Fipway Includes the USB cable (length 2 m)
Requires the TSX FP CG010/030 cable
4
for
connection (Fipio/Fipway end) to the TSX FP
ACC3/4 box. Max. rate 12 messages/s.
15
TSX C USBFIP
0.140
(1)
The characteristics and performance of the Fipio bus or Fipway network are dependent on the above TSX FP accessories
being used.
Fipio presentation:
page 5/100
Fipway presentation:
page 5/106
Connections:
pages 5/110 ...
TSX FPACC14
TSX FPACC3
TSX FPACC4
TSX EF ACC99
TSX FPACC12
TSX C USBFIP
